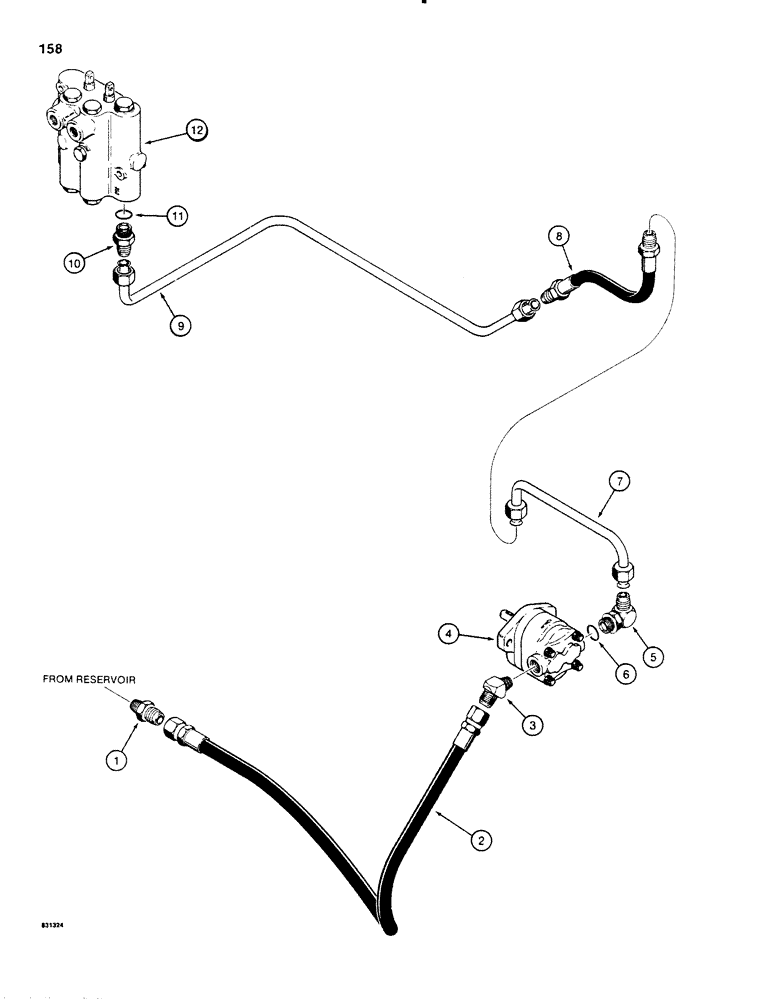

Запчасти Case P60 (158) - STEERING AND EQUIPMENT PUMP HYDRAULIC CIRCUIT, USED ON 30+4 BEFORE S/N 4500, ON 40+4 BEFORE S/N 3400 (41) - STEERING

1

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, from suction tee

1шт.

2

H171009

HYDRAULIC HOSE,7.62 mm ID x 838.00 mm, SAE 100R1

Suction, 30+4 Models Only 7.62 mm ID x 838.00 mm, SAE 100R1

1шт.

2

H211284

HYDRAULIC HOSE,12.70 mm ID x 939.80 mm, SAE 100R1

Suction, 40+4 Models Only 12.70 mm ID x 939.80 mm, SAE 100R1

1шт.

3

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree, 1/2" NPT at pump

1шт.

4

H558734

PUMP

ASSEMBLY - steering and equipment, .491" (12.5 mm) diameter shaft, parts list figure 176, if used

1шт.

5

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adjustable, Includes: Ref. 6

1шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

7

H560060

TUBE,0.5" OD

- pressure, pump to hose, 30+4 models only

1шт.

7

H569889

TUBE,0.5" OD

- pressure, pump to hose, 40+4 models only

1шт.

8

H195370

HOSE

- pressure, tube to tube, 9" (229 mm) long

1шт.

9

H559971

TUBE,0.5" OD x 15.25, 9.625" L

- pressure, hose to valve, 30+4 models only

1шт.

9

H569874

TUBE - pressure, hose to valve, 40+4 models only

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Incl. Ref 11 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

12

H550079

LOCK VALVE

VALVE ASSEMBLY - steering and equipment, parts list figures 52 and 54

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
