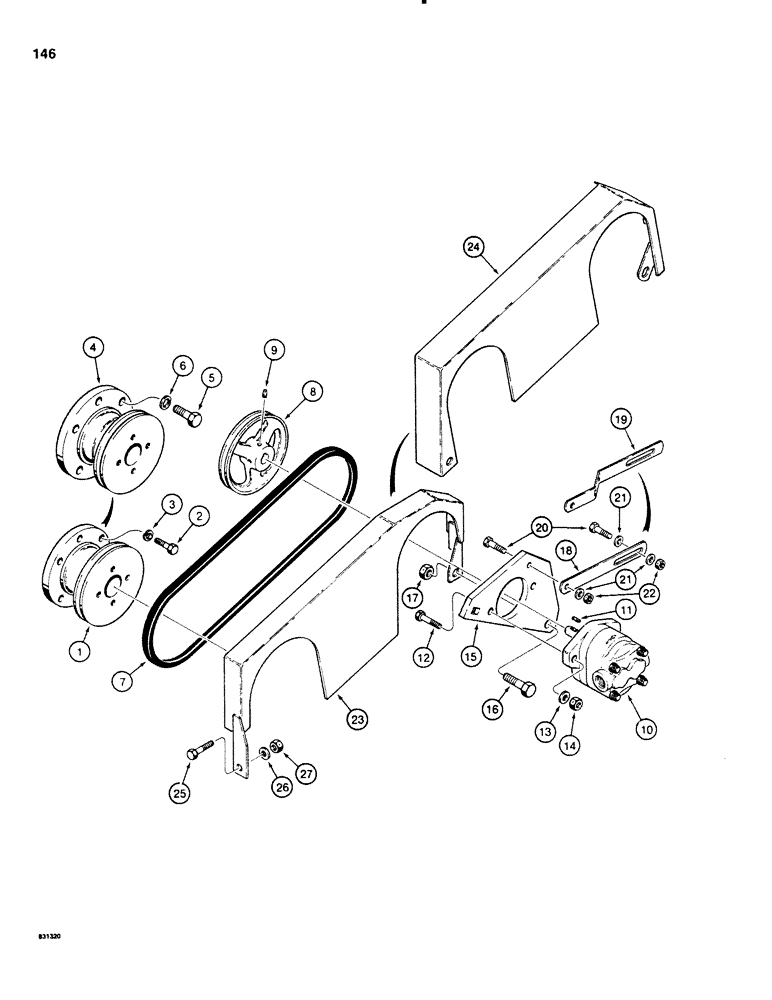

Запчасти Case P60 (146) - STEERING & EQUIP. PUMP MOUNTING, W/ SINGLE GROOVE BELT, USED BEF. 30+4 S/N 4500, BEF. 40+4 S/N 3400 (41) - STEERING

1

H185678

PULLEY

SHEAVE - pump drive, engine, 30+4 and 30+4 Special, single goove

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

30+4 only Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 30+4 only 3/8"

6шт.

4

H218636

SHEAVE

- pump drive, engine, 40+4, single groove

1шт.

5

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

40+4 only Hex, 1/2"-13 x 1 1/4", G5, Full Thd

6шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 40+4 only 1/2"

6шт.

7

H191577

BELT

- pump drive, single groove, Gate No. 3V-355

1шт.

8

H132795

SHEAVE

- driven, pump, single groove

1шт.

9

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

- square head, 1/4" - 28 NF x 3/8" long

1шт.

10

H558734

PUMP

ASSEMBLY - steering and equipment, .491" (12.5 mm) diameter shaft, used with single groove sheaves and belt, parts list figure 176, Includes: Ref. 11

1шт.

11

REF

INSTRUCTION

KEY - drive, Serial Range: pump-sheave

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

13

195-525

WASHER,3/8", SAE

- flat, 3/8"

2шт.

14

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

15

H188359

BRACKET

PLATE - pump mounting, if used, not shown

1шт.

15

H413674

BRACKET

PLATE - pump mounting, interchangable with H188359 plate, has square hole for belt tensioning adjustment, if used

1шт.

16

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

17

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

18

H62521

LINK

- adjusting, 30+4 models

1шт.

19

H223818

LINK

- adjusting, 40+4 models

1шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

21

195-521

WASHER,5/16", SAE

- flat, 5/16"

2-3шт.

22

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

23

H631226

GUARD

- belt, pump drive, trenchers only

1шт.

24

H623629

GUARD - belt, pump drive, 30+4 Special only

1шт.

25

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

30+4 only Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

26

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

27

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

1шт.
