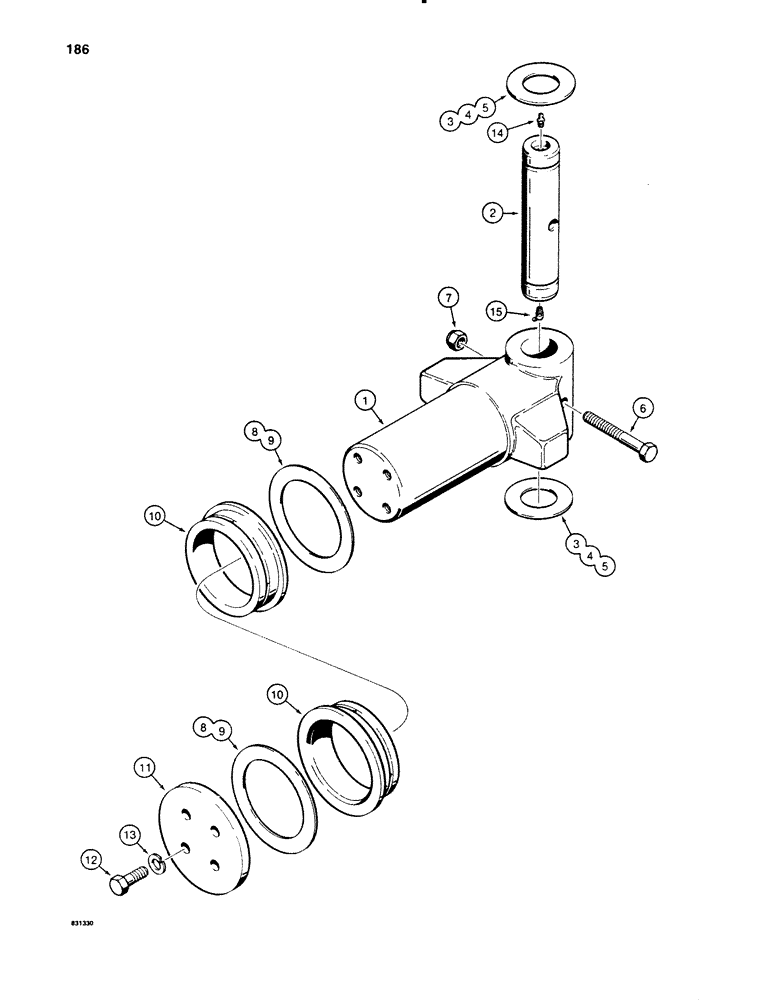

Запчасти Case P60 (186) - FRAME ARTICULATION JOINT (39) - FRAMES AND BALLASTING

1

H181867

AXLE PIN

PIVOT SHAFT - frame articulation

1шт.

2

H371047

PIVOT PIN

PIN - pivot shaft to front frame

1шт.

3

H263913

WASHER

THRUST WASHER - .032" (0.81 mm) thick

1шт.

4

H173385

BEARING WASHER

THRUST WASHER - .188" (4.78 mm) thick

1шт.

5

H164962

BEARING WASHER

THRUST WASHER - .250" (6.35 mm) thick

1шт.

6

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

7

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

8

H169755

SHIM,.030" Thk

Pivot (0.76 mm) .030" Thk

1шт.

9

H169748

SHIM,.062" Thk

Pivot (1.57 mm) .062" Thk

1шт.

10

H150193

BUSHING

- pivot, if used

2шт.

11

H164251

PLATE

- cap, end

1шт.

12

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8 NPT, upper pivot pin

1шт.

15

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT, lower pivot pin

1шт.
