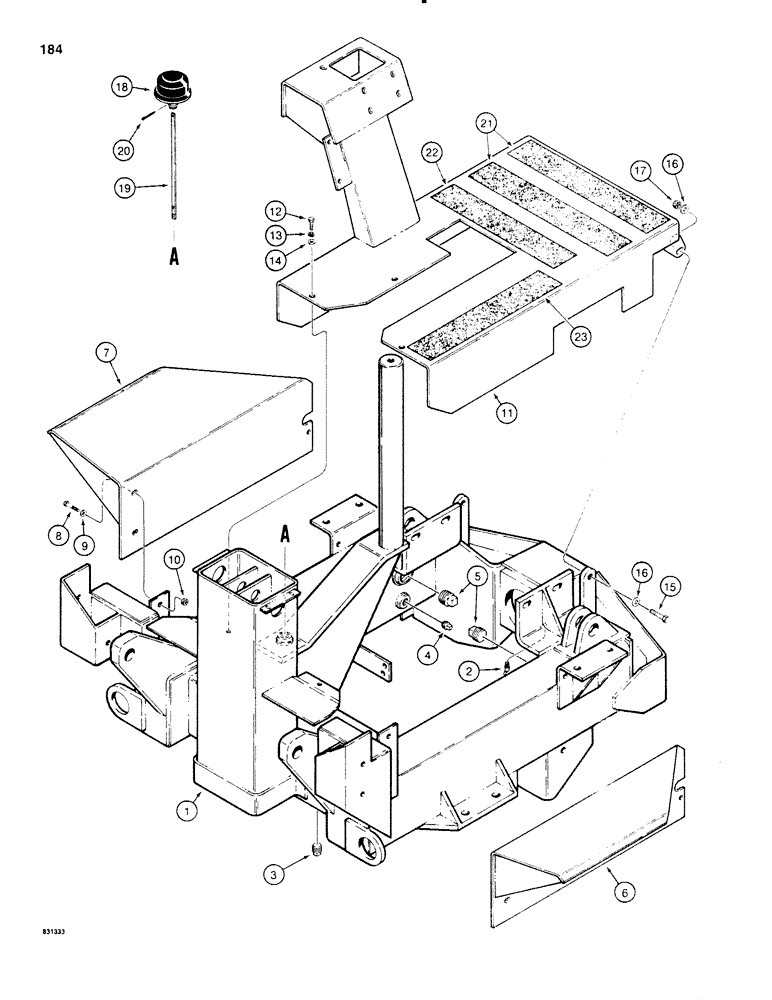

Запчасти Case P60 (184) - REAR FRAME, FENDERS, AND FLOOR PLATE (39) - FRAMES AND BALLASTING

1

H574020

FRAME ASSEMBLY - rear, used on 30+4 before SN 5210, on 30+4 Special before SN 3751, and on 40+4 before SN 3930, not shown

1шт.

1

H597781

FRAME ASSEMBLY - rear, used on 30+4 SN 5210 to 1163236, 30+4 Special SN 3751 and after, and 40+4 SN 3930 and after, not shown

1шт.

1

H650457

FRAME ASSEMBLY - rear, used on 30+4 SN 1163236 and after, Includes: Ref. 2-5

1шт.

2

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT, rear frame pivot

1шт.

3

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, 3/4" NPT

1шт.

4

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" NPT, if used

1шт.

5

221-847

PLUG,Hex Soc, 1 1/4"-11 1/2

- pipe, 1-1/4" NPT, if used

1шт.

6

H558510

FENDER

- rear, right-hand, used with H574020 frame only, not shown

1шт.

6

H599159

FENDER - rear, right-hand, used with H597781 or H650457 frame only

1шт.

7

H558502

FENDER - rear, left-hand, used with H574020 frame only, not shown

1шт.

7

H599142

FENDER - rear, left-hand, used with H597781 or H650457 frame only

1шт.

8

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

6шт.

9

195-521

WASHER,5/16", SAE

- flat, 5/16"

6шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hes, self-locking, 5/16" - 18 NC

6шт.

11

H574038

FLOOR PLATE - rear, used with H574020 frame only, not shown

1шт.

11

H597807

FLOOR PLATE - rear, used with H597781 or H650457 frame only

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

13

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

14

195-521

WASHER,5/16", SAE

- flat, 5/16"

3шт.

15

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

16

195-525

WASHER,3/8", SAE

- flat, 3/8"

4шт.

17

230-4216

LOCK NUT,3/8"-16, GA

NUT - hes, self-locking, 3/8" - 16 NC

2шт.

H560755

BREATHER

AND DIPSTICK ASSEMBLY - rear reservoir, if used, Includes: Ref. 18-20

1шт.

18

A75179

BREATHER

- reservoir

1шт.

19

H197459

DIPSTICK

- reservoir

1шт.

20

132-332

COTTER PIN,3/32" x 1 1/2"

3/32" x 1-1/2"

1шт.

21

H431171

ADHESIVE STRIP

STRIP - anti-skid, if used

2шт.

22

H431189

ADHESIVE STRIP

STRIP - anti-skid, if used

1шт.

23

H431197

ADHESIVE STRIP

STRIP - anti-skid, if used

1шт.
