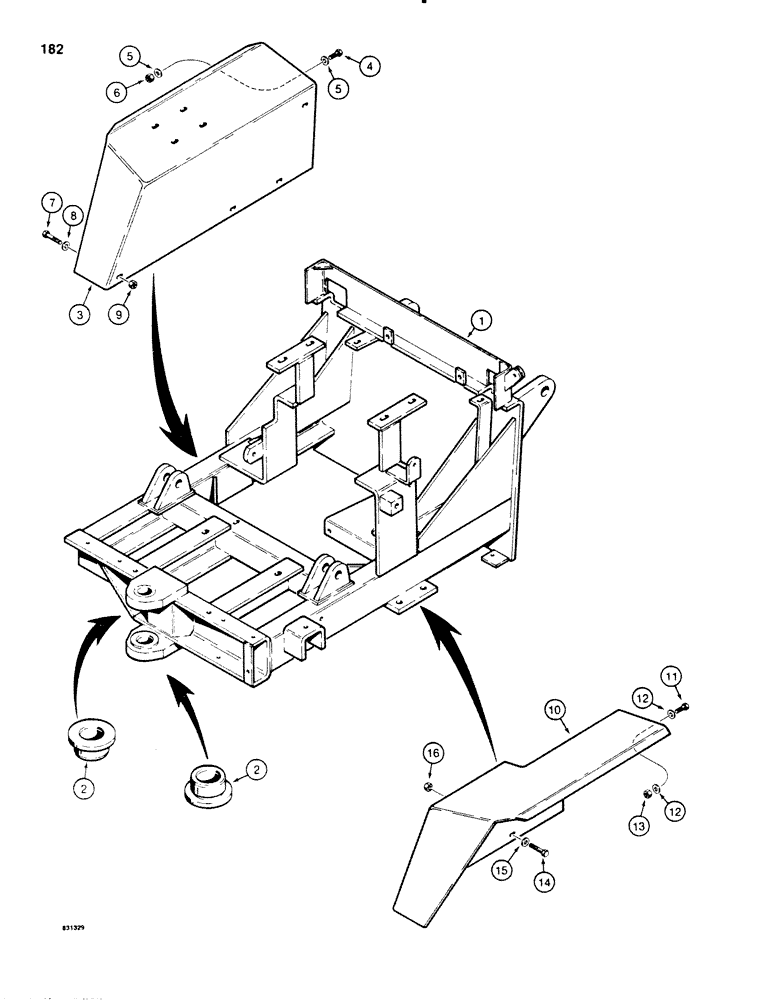

Запчасти Case P60 (182) - FRONT FRAME AND FENDERS (39) - FRAMES AND BALLASTING

1

H563049

FRAME ASSEMBLY - front, 30+4 Special only, Includes: Ref. 2

1шт.

2

H334730

BUSHING

- articulation pivot

2шт.

3

H558460

FENDER

- front, left-hand

1шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

5

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

8

195-525

WASHER,3/8", SAE

- flat, 3/8"

3шт.

9

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

3шт.

10

H563155

FENDER - front, right-hand, 30+4 only

1шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18NC

1шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8"

3шт.

16

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

3шт.
