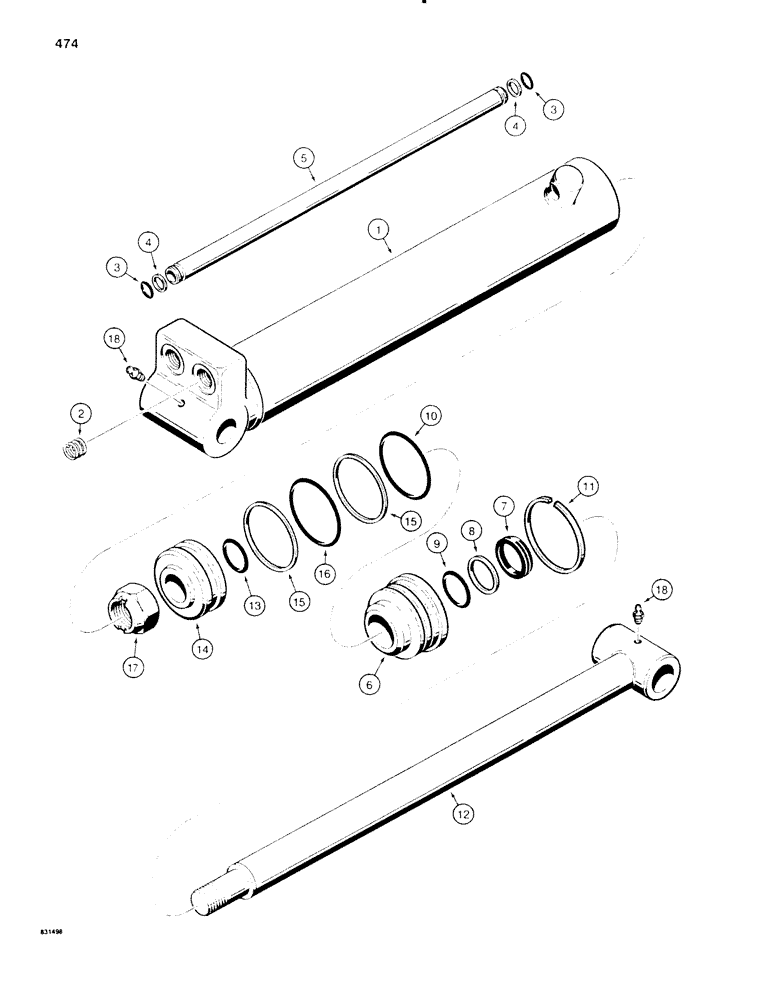

Запчасти Case P60 (474) - H600841 BOOM, DIPPER, AND BUCKET CYLINDER, USED ON FIVE SPOOL BACKHOE SER. NO. 1515347 THRU 1515645 (35) - HYDRAULIC SYSTEMS

H600841

CYLINDER

- backhoe, 3" (76 mm) ID x 15" (381 mm) stroke, Lantex No. 2781-TMPart of seal kit G1055021-18

3шт.

1

H602508

TUBE

- clyinder

1шт.

H602607

KIT

- manifold, Includes: Ref. 2-5

1шт.

2

H286013

VALVE SPRING

SPRING - manifold

1шт.

3

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- seal

2шт.

4

H754622

RING

BACKUP RING - O-ring

2шт.

5

NSS

NOT SOLD SEPARAT

TUBE - hydraulic

1шт.

6

H223081

GLAND

- cylinder

1шт.

7

H222935

WIPER SEAL

WIPER - rod

1шт.

Part of seal kit P/N H587485

1шт.

8

H745687

WASHER

BACKUP RING - piston rod O-ring

1шт.

Part of seal kit P/N H587485

1шт.

9

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - piston rod, small, gland inner

1шт.

Part of seal kit P/N H587485

1шт.

10

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- gland, outer

1шт.

Part of seal kit P/N H587485

1шт.

11

H223263

ELECTRICAL WIRE

RETAINING RING - gland

1шт.

Part of seal kit P/N H587485

1шт.

12

H602516

ROD

- piston, 1-1/2" (38 mm) diameter

1шт.

13

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- piston, inner

1шт.

Part of seal kit P/N H587485

1шт.

14

H223073

PISTON ASSY.

PISTON - cylinder

1шт.

15

H754614

WASHER

BACKUP RING - piston seal

2шт.

Part of seal kit P/N H587485

1шт.

16

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

- piston seal, outer

1шт.

Part of seal kit P/N H587485

1шт.

17

131-370

LOCK NUT

NUT - hex, self-locking, 1" - 14 UNS

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

H587485

SET

KIT - seal, Includes: Refs. 7 - 11, 13, 15 and 16

1шт.
