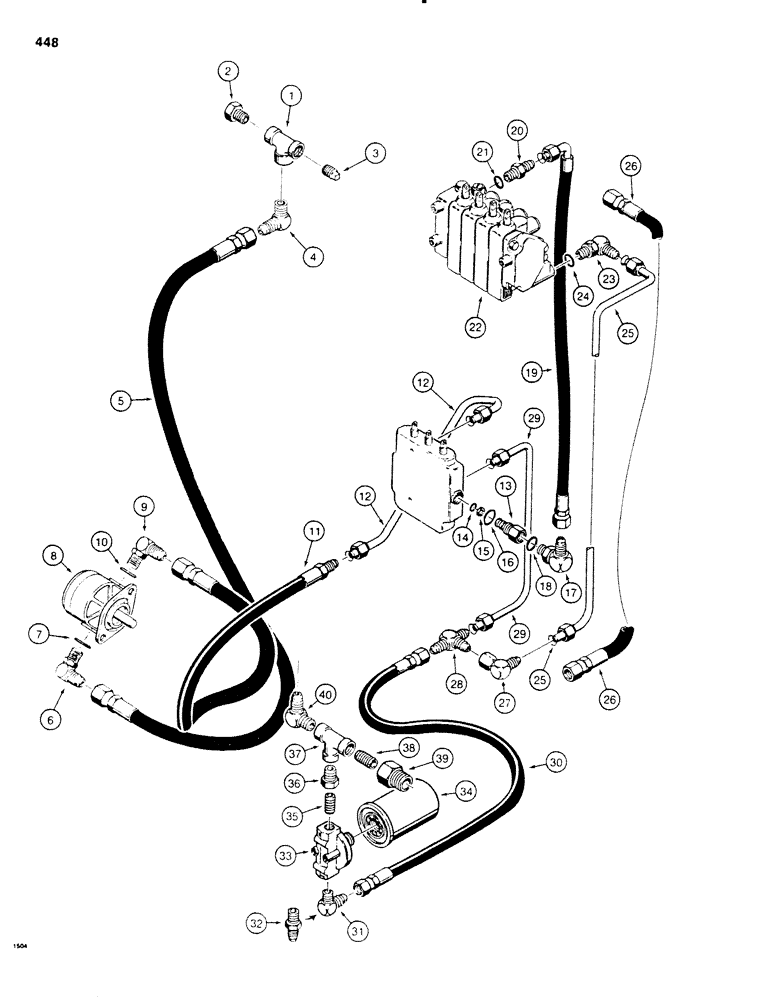

Запчасти Case P60 (448) - BACKHOE PUMP, PRESSURE, AND RETURN HYDRAULIC CIRCUIT, USED ON 30+4 SPECIAL SERIAL NO. 3761 AND AFTER (35) - HYDRAULIC SYSTEMS

1

221-426

FITTING,1" NPT

TEE- pipe, , see figure 332 refs. 1 - 6 for complete suction circuit to reservoir 1" NPT

1шт.

2

221-1604

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - pipe, reducing, 1" NPT to 3/4" NPT

1шт.

3

221-48

PLUG

PIPE PLUG - square head, 3/4" NPT, used without line layer, if used

1шт.

4

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, male

1шт.

5

A140575

HOSE

Suction

1шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 7

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

8

H554907

PUMP

- hydraulic, Cessna No.24306-LAC, counterclockwise rotation, parts list figure 410

1шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Incl. Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- eblow

1шт.

11

H207753

HOSE

- pressure, 65" (1651 mm) long

1шт.

12

REF

INSTRUCTION

TUBE - pressure, hos to backfill blade valve, see figure 264 for correct part

1шт.

D61608

SLEEVE

PLUG ASSEMBLY - power beyond, Includes: Ref. 13-16

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG - power beyond

1шт.

H587345

SEAL ASSY.

SEAL KIT - plug, power beyond, Includes: Ref. 14-16

1шт.

14

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- small

1шт.

15

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING - small O-ring

1шт.

16

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large

1шт.

17

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

H267112

HOSE ASSY.

HOSE - pressure, 26" (660 mm) long, 90 degree tube end, Serial Range: valve-valve

1шт.

20

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

22

H588566

VALVE

CONTROL VALVE - backhoe, four spool, parts list figures 462 - 466

1шт.

23

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Incl. Ref. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

25

H628727

TUBE,0.625" OD

- return, valve to tee, if used

1шт.

26

H200279

HOSE ASSY.

HOSE - return, 23" (584 mm) long, valve to tee, if used

1шт.

27

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

28

218-595

TEE,7/8"-14, 37 Degree

- tube, male

1шт.

29

REF

INSTRUCTION

TUBE - return, backfill blade valve to tee, see figure 264 for correct part

1шт.

30

H213025

HOSE ASSY.

HOSE - return, 16" (406 mm) long, Serial Range: tee-filter

1шт.

31

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, male, if used

1шт.

32

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, male, if used

1шт.

H568014

FILTER CARTRIDGE

FILTER ASSEMBLY - oil, Includes: Ref. 33, 34

1шт.

33

NSS

NOT SOLD SEPARAT

BASE - filter, hydraulic

1шт.

34

H311654

FILTER, ENGINE OIL

ELEMENT - filter, hydraulic

1шт.

35

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe, 1/2" NPT x 1-1/8" long

1шт.

36

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - pipe, reducing, 3/4" NPT to 1/2" NPT

1шт.

37

221-453

TEE

- pipe, reducing

1шт.

38

221-1236

FITTING,Nipple, 1" NPT x 1 1/2"

NIPPLE - pipe, 1" NPT x 1-1/2" long

1шт.

39

221-609

REDUCER,Hex, 1 1/4" x 1" NPT

BUSHING - pipe, reducing, 1-1/4" NPT to 1" NPT

1шт.

40

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, male to H284356 hose on figure 332

1шт.
