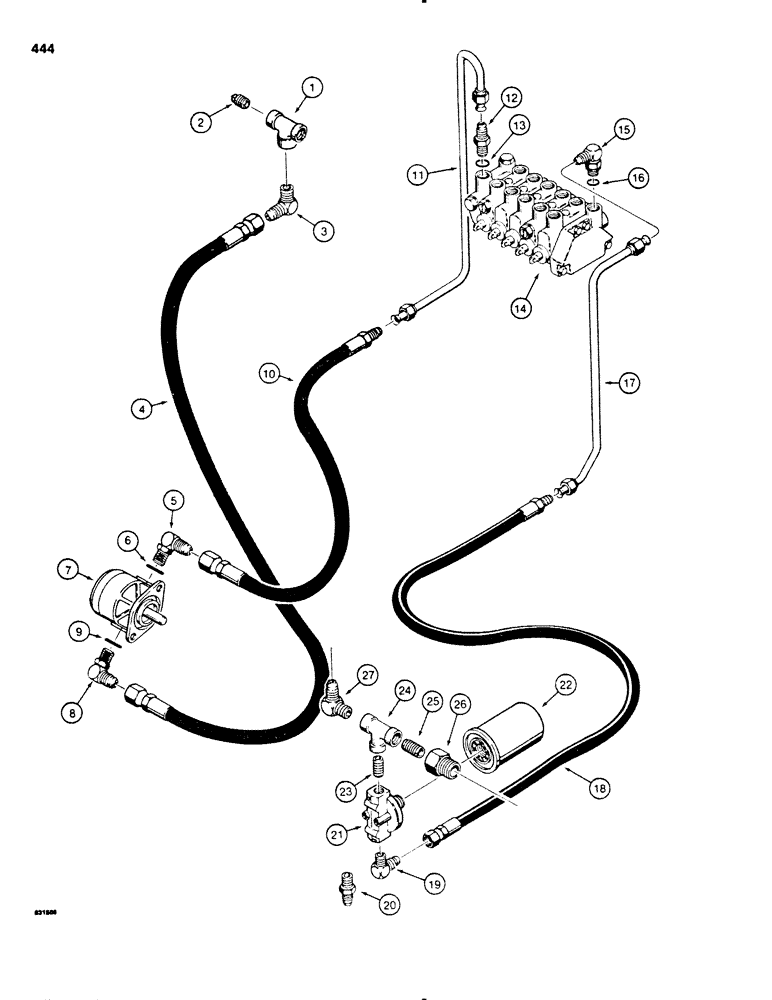

Запчасти Case P60 (444) - BACKHOE PUMP, PRESSURE, AND RETURN HYDRAULIC CIRCUIT, USED BEFORE 30+4 SPECIAL SERIAL NUMBER 3761 (35) - HYDRAULIC SYSTEMS

1

221-453

TEE

- pipe, reducing, see figure 328 or 330 refs. 1 - 7 for complete suction, Serial Range: circuit-reservoir

1шт.

2

221-48

PLUG

PIPE PLUG - square head, 3/4" NPT, used without line layer, if used

1шт.

3

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, adjustable

1шт.

4

A140575

HOSE

Suction

1шт.

5

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- degre, adjustable, male

1шт.

7

H554907

PUMP

- hydraulic, Cessna No.24306-LAC, counterclockwise rotation, parts list figure 410

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Incl. Ref. 9

1шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

10

H207753

HOSE

- pressure, 65" (1651 mm) long, Serial Range: pump-tube

1шт.

11

H560169

TUBE,0.625" OD

- pressure, hose to H560292

1шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

14

H560292

VALVE

CONTROL VALVE - backhoe, five spool, parts list figures 460 - 466

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Incl. Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

17

H624510

TUBE,0.62" OD

- return, valve to hose

1шт.

18

H211839

HOSE

- return, 27" (686 mm) long, Serial Range: tube-filter

1шт.

19

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, male, if used

1шт.

20

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, male, if used

1шт.

H568014

FILTER CARTRIDGE

FILTER ASSEMBLY - oil, Includes: Ref. 21, 22

1шт.

21

NSS

NOT SOLD SEPARAT

BASE - filter, hydraulic

1шт.

22

H311654

FILTER, ENGINE OIL

ELEMENT - filter, hydraulic

1шт.

23

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe, 1/2" NPT x 1-1/8" long

1шт.

24

221-443

TEE

- pipe, reducing

1шт.

25

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4" NPT x 1-3/4" long

1шт.

26

221-608

REDUCER,Hex, 1 1/4" x 3/4" NPT

BUSHING - pipe, reducing, 1-1/4" NPT to 3/4" NPT

1шт.

27

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, male, goes to H205963 hose on figure 328 or figure 330, ref. 32

1шт.
