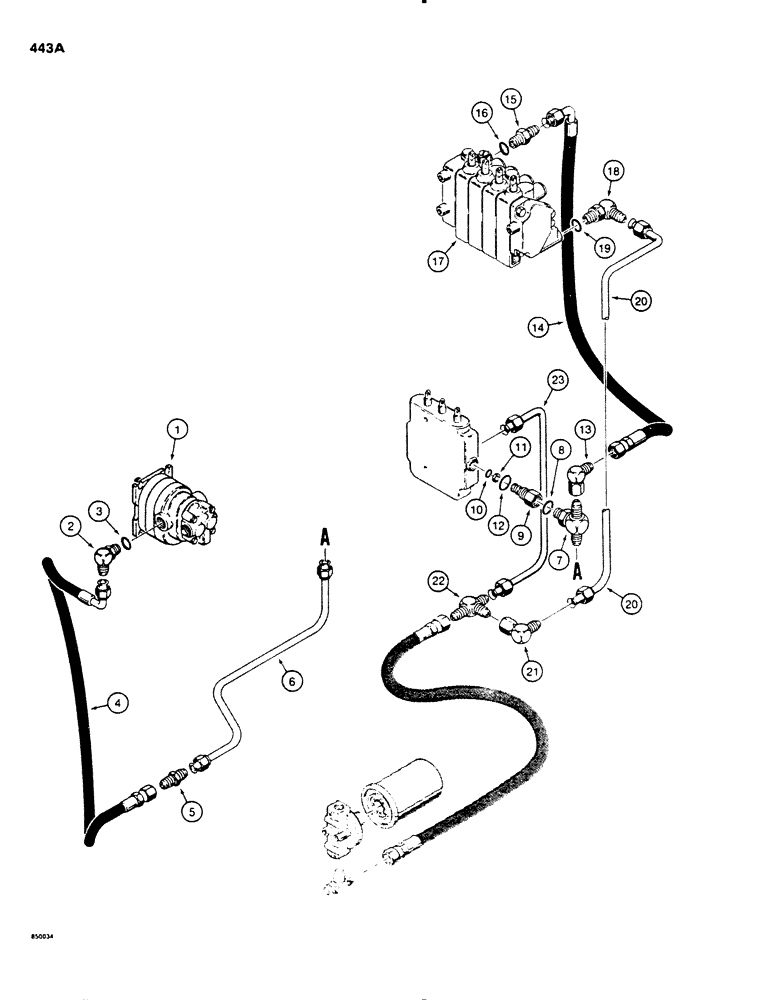

Запчасти Case P60 (443A) - BACKHOE PUMP, PRESSURE, AND RETURN HYDRAULIC CIRCUIT, DEUTZ DIESEL ENGINE SER. NO. 1232821 AND AFTER (35) - HYDRAULIC SYSTEMS

1

H671446

PUMP

- hydraulic, parts list figure 179A, see figure 171A for mounting and suction circuit

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

H433592

HOSE ASSY.

HOSE - pressure, 46-1/4" (1175 mm) long

1шт.

5

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ADAPTER - straight

1шт.

6

H670398

TUBE ASSY.,15.8 mm OD

TUBE - pressure, hose to backfill blade valve tee

1шт.

7

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- valve

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

-tee

1шт.

D61608

SLEEVE

PLUG ASSEMBLY - power beyond, Includes: Ref. 9-12

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG - power beyond

1шт.

H587345

SEAL ASSY.

SEAL KIT - plug, power beyond, Includes: Ref. 10-12

1шт.

10

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- small

1шт.

11

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING - small O-ring

1шт.

12

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large

1шт.

13

218-52322

ELBOW - 90 degree, swivel

1шт.

14

H433208

HOSE ASSY.

HOSE - pressure, 25" (635 mm) long, 90 degree tube end, Serial Range: valve-valve

1шт.

15

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

17

H588566

VALVE

CONTROL VALVE - backhoe, four spool, parts list figures 462 - 466

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Incl. Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- eblow

1шт.

20

H628727

TUBE,0.625" OD

- return, valve to tee

1шт.

21

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

22

218-595

TEE,7/8"-14, 37 Degree

- tube, male

1шт.

23

REF

INSTRUCTION

TUBE - return, see figure 264 for correct part

1.шт.
