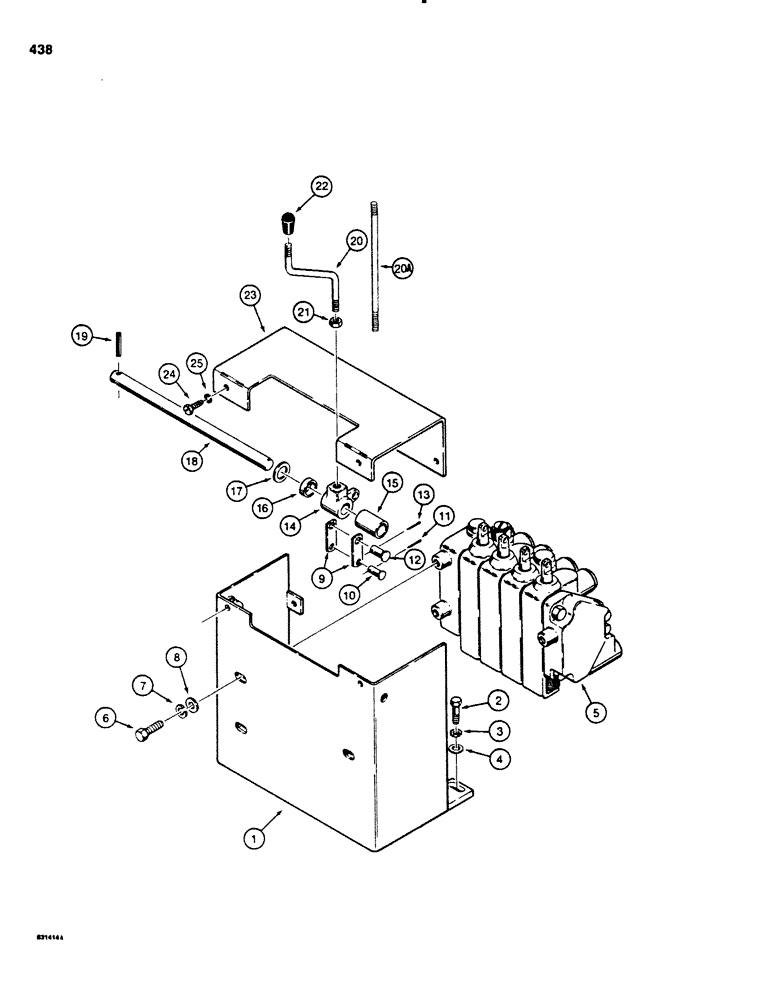

Запчасти Case P60 (438) - H588566 BACKHOE VALVE MOUNTING AND CONTROLS (35) - HYDRAULIC SYSTEMS

1

H588137

MOUNTING PARTS

CONSOLE - valve mounting

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8"

4шт.

5

H588566

VALVE

CONTROL VALVE - backhoe, four spool, parts list figures 462 - 466

1шт.

6

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

3шт.

7

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

8

195-529

WASHER,7/16", SAE

- flat, 7/16"

3шт.

9

H185066

DRAG LINK

LINK -, Serial Range: spool-lever

8шт.

10

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

4шт.

11

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

4шт.

12

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

CLEVIS PIN - special, 1/4" x 51/64" long

4шт.

13

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

14

H275255

CRANK LEVER

LEVER - control handle

4шт.

15

H191247

SPACER

- lever, long

2шт.

16

H191908

SPACER

- lever, short

3шт.

17

195-541

WASHER,5/8", SAE

- flat, 5/8"

1шт.

18

H256263

SHAFT

- lever pivot

1шт.

19

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1-1/8", Slotted, Shaft

1шт.

20

H259796

LEVER

HANDLE - lever, bent, if used

4шт.

20a

H191916

ROD

HANDLE - lever, straight, if used

4шт.

21

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

22

A14051

GRIP

KNOB - handle

4шт.

23

H256271

COVER

- console

1шт.

24

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - hex head, self-tapping, 5/16" - 18 NC x 3/4"

4шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.
