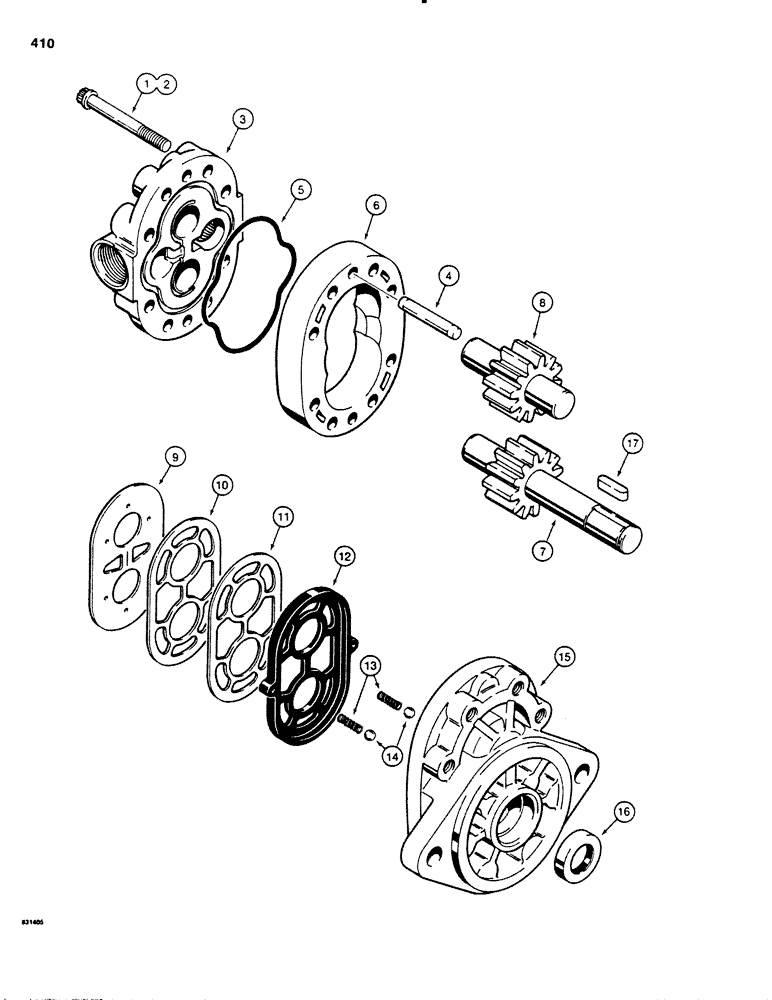

Запчасти Case P60 (410) - H554907 HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

H554907

PUMP

- hydraulic, Cessna No. 24306-LAC, counterclockwise rotation, Includes: Ref. 1-17

1шт.

1

166-32

12 PT SCREW,Flg, 5/16" - 18 x 2 1/2", Gr 8

BOLT - Ferry head, 5/16" - 18 NC x 2-1/2"

4шт.

2

166-34

12 PT SCREW,Flg, 5/16" - 18 x 3", Gr 8

BOLT - Ferry head, 5/16" - 18 NC x 3"

4шт.

3

N6036

PLATE

HOUSING - port end

1шт.

4

F9529

AXLE PIN

PIN - dowel

2шт.

5

F30415

O-RING,3" ID

- housing

1шт.

Part of seal kit P/N D77554

1шт.

6

F30416

BODY

HOUSING - center

1шт.

7

H563080

GEAR WHEEL

GEAR - drive

1шт.

8

F88937

GEAR

- idler

1шт.

9

D77645

DIAPHRAGM

- pump

1шт.

Part of seal kit P/N D77554

1шт.

10

D77553

GASKET

- backup

1шт.

Part of seal kit P/N D77554

1шт.

11

H262477

GUARD

GASKET - protector

1шт.

Part of seal kit P/N D77554

1шт.

12

D61922

SEAL

- diaphragm

1шт.

Part of seal kit P/N D77554

1шт.

13

F9883

SPRING

- ball

2шт.

Part of seal kit P/N D77554

1шт.

14

211-306

BALL,7/32" Dia

- steel

2шт.

Part of seal kit P/N D77554

1шт.

15

H501577

PLATE ASSY.

HOUSING - drive end

1шт.

16

F11406

SEAL

- shaft

1шт.

Part of seal kit P/N D77554

1шт.

17

H35147

KEY

- shaft

1шт.

D77554

SEAL

KIT - seal, Includes: Refs. 5, 9 - 14, and 16

1шт.
