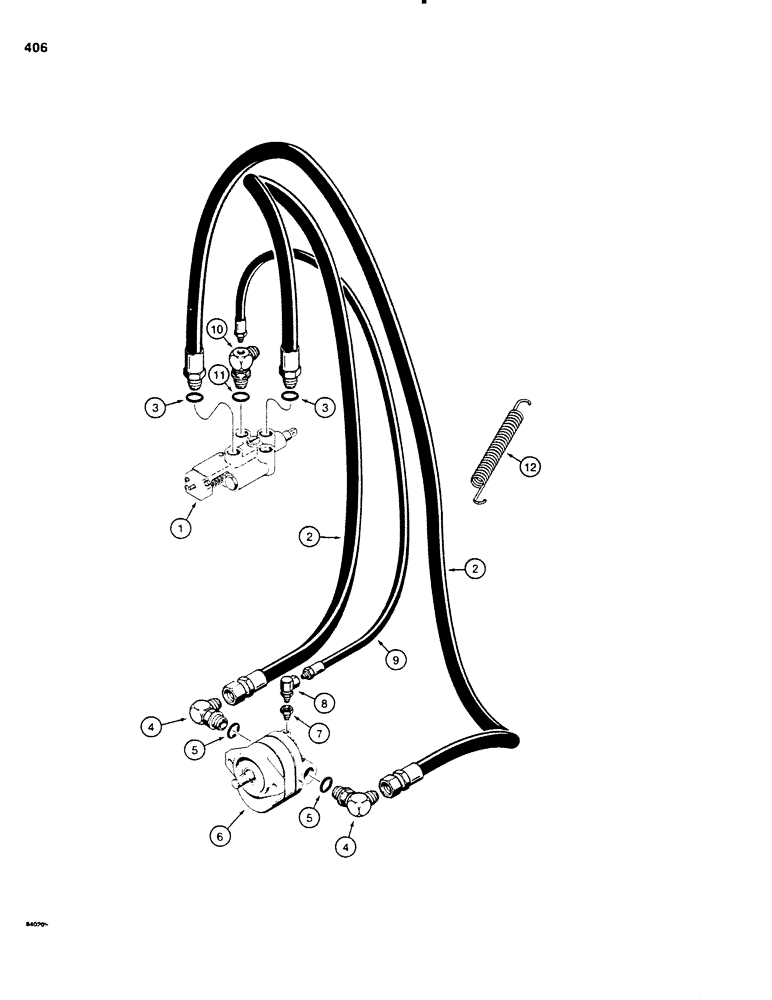

Запчасти Case P60 (406) - HYDRA-BORER HYDRAULIC MOTOR CIRCUIT (35) - HYDRAULIC SYSTEMS

1

H544718

LOCK VALVE

CONTROL VALVE - one spool, hydra-borer, parts list figure 408

1шт.

2

H109470

HOSE,12.70 mm ID x 863.60 mm, SAE 100R1

Pressure, Includes: Ref. 3 12.70 mm ID x 863.60 mm, SAE 100R1

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Incl. Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

6

H525527

MOTOR HOUSING

MOTOR - hydra-borer, Cessna No.21008-JBZ, parts list figure 412, if used

1шт.

6

H654814

MOTOR

- hydra-borer Cessna No.21306-DDE, parts list figure 414, if used

1шт.

7

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - pipe, reducing, used with H654814 only

1шт.

8

218-933

ELBOW,90 Degree, 1/8" NPTF Male x 1/8" NPSM Fem Sw

- 90 degree, swivel

1шт.

9

H71407

HOSE,0.25" ID x 39.00"

Motor Drain 0.25" ID x 39.00"

1шт.

10

H211557

ADAPTER

ELBOW - 90 degree, special, male, Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

12

H52548

SPRING

- hose retainer

1шт.
