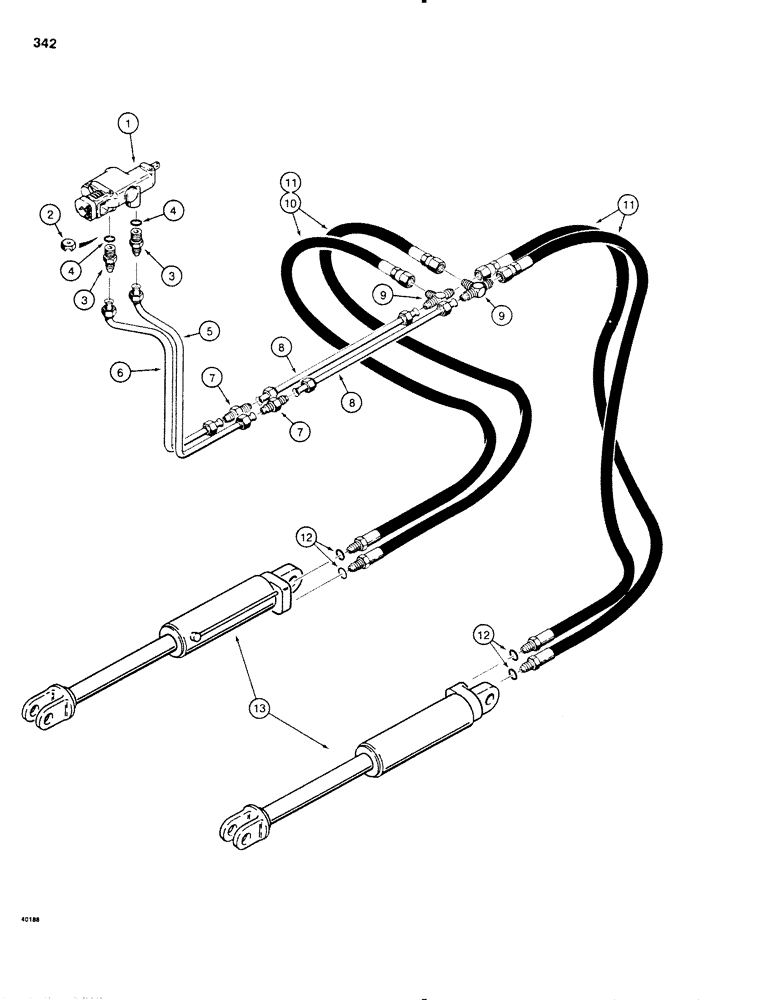

Запчасти Case P60 (342) - LINE LAYER LIFT HYDRAULIC CIRCUIT, USED ON 30+4 S/N 4700 AND AFTER AND ON 40+4 S/N 3600 AND AFTER (35) - HYDRAULIC SYSTEMS

1

H537647

LOCK VALVE

CONTROL VALVE - one spool, Cessna No. 30501-AZ, parts list figure 270

1шт.

2

H206235

SCREW

PLATE - restrictor, .052" (1.321 mm) orifice, if used

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

ADAPTER - straight, male, Includes: Ref. 4

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

5

H563791

TUBE,0.5" OD x 2.5, 9.75" L

- valve to closed end of cylinder

1шт.

6

H563809

TUBE,0.5" OD

- valve to rod end of cylinder

1шт.

7

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, male

2шт.

8

H562173

TUBE,0.5" OD x 18" L

- tube to hose

2шт.

9

218-594

TEE,3/4"-16, 37 Degree

- tube

2шт.

10

H240861

HOSE

- 13" (330 mm) long, to left - hand cylinder, if used

2шт.

11

H199364

HOSE

- 19" (483 mm) long, to right-hand cylinder of both cylinders, Includes: Ref. 12

2-4шт.

13

H560730

CYLINDER

- line layer lift, parts list figure 366

2шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
