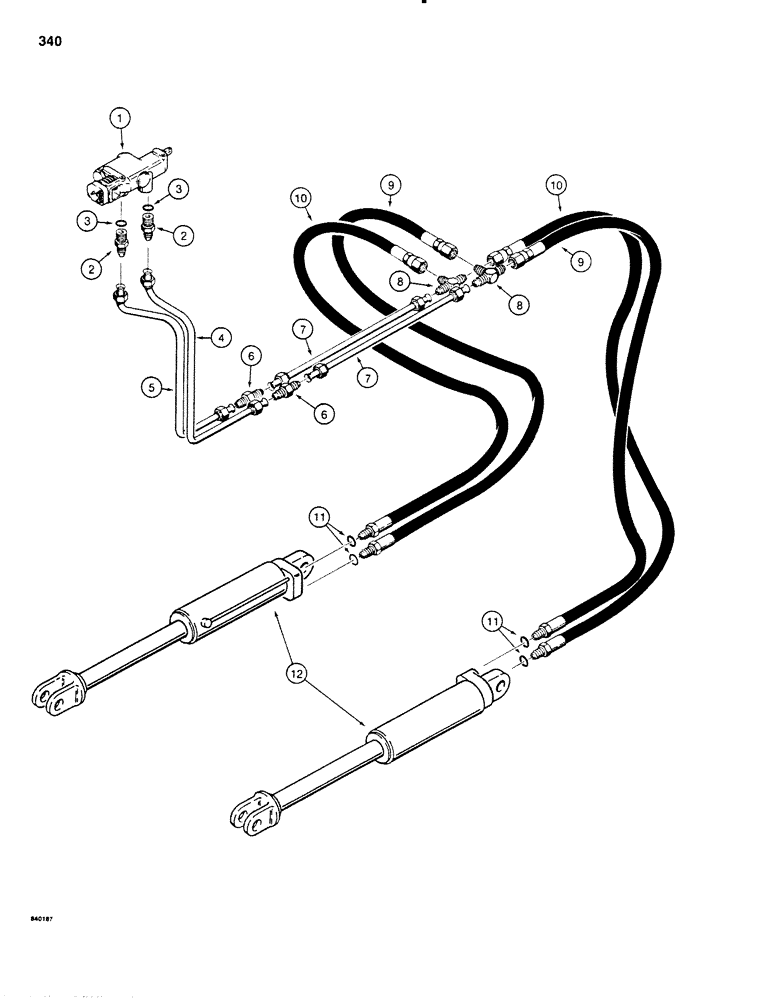

Запчасти Case P60 (340) - LINE LAYER LIFT HYDRAULIC CIRCUIT, USED BEFORE 30+4 SERIAL NO. 4700 AND BEFORE 40+4 SERIAL NO. 3600 (35) - HYDRAULIC SYSTEMS

1

H537647

LOCK VALVE

CONTROL VALVE - one spool, Cessna No. 30501-AZ, parts list figure 270

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

H563791

TUBE,0.5" OD x 2.5, 9.75" L

- valve to closed end of cylinder

1шт.

5

H563809

TUBE,0.5" OD

- valve to rod end of cylinder

1шт.

6

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, male

2шт.

7

H562173

TUBE,0.5" OD x 18" L

- tube to hose

2шт.

8

218-594

TEE,3/4"-16, 37 Degree

- TUBE 2

2шт.

9

H200188

HOSE

- 20-1/2" (521 mm) long, to closed end of clinder

2шт.

10

H200188

HOSE

- 26" (660 mm) long, to rod end of cylinder, Includes: Ref. 11

2шт.

12

H560730

CYLINDER

- line layer lift , parts list figure 366

2шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
