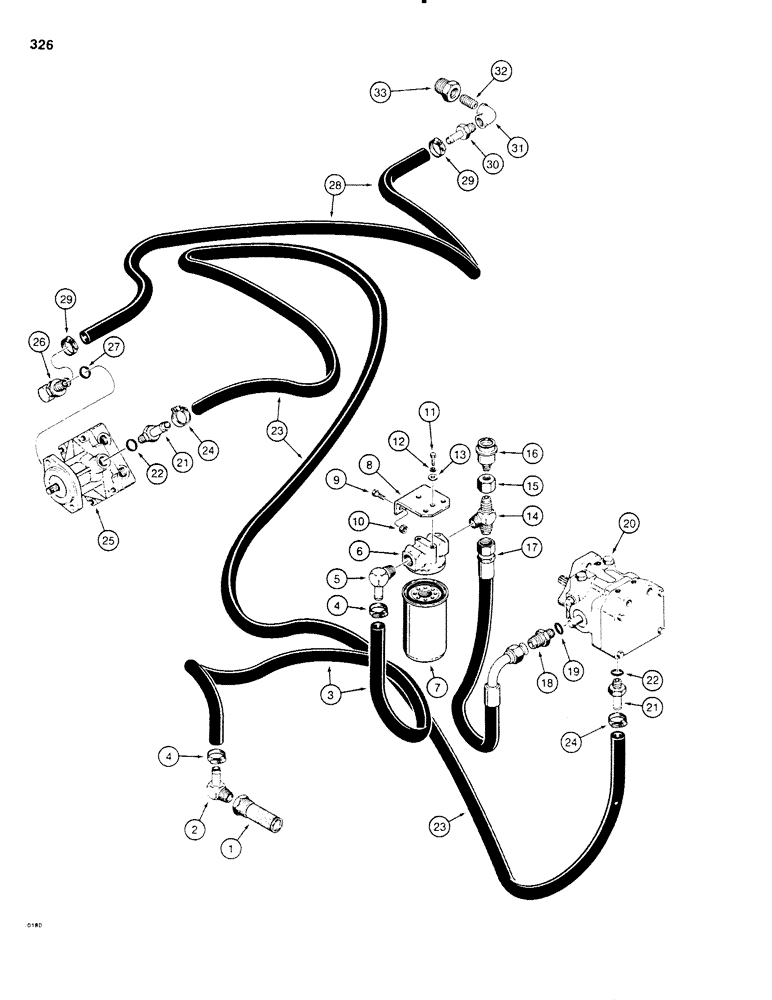

Запчасти Case P60 (326) - LINE LAYER HYDRAULIC SUCTION AND RETURN CIRCUIT (35) - HYDRAULIC SYSTEMS

1

H501478

STRAINER ASSY.

SCREEN - suction filter, reservoir, 3/4" NPT, if used

1шт.

1

H599720

FILTER

SCREEN - suction filter, reservoir, 1" NPT, if used

1шт.

2

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - 90 degree, 3/4" NPT at tank, used with H501478 only

1шт.

2

217-330

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1" Male NPTF

STEM FITTING - 90 degree, 1" NPT at tank, used withe H599720 only

1шт.

3

H309062

HOSE

- suctin, 51" (1295 mm) long

1шт.

4

214-245

CLAMP - hose, worm drive, SAE No. 12

2шт.

5

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - 90 degree, 3/4" NPT at filter

1шт.

6

H616508

FILTER HEAD

BASE - filter, hydraulic

1шт.

7

H311647

HYDRAULIC OIL FILTER

ELEMENT - filter, hydraulic

1шт.

8

H191528

BRACKET

- filter mounting

1шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

10

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

13

195-518

WASHER,1/4", SAE

- flat, 1/4"

2шт.

14

218-1105

TEE,1 1/16"-12, 37º x 7/8"-14, 37º x 3/4"-14, NPTF Br

- suction

1шт.

15

H207134

CYLINDER END CAP

CAP - special

1шт.

16

H287466

GAUGE ASSY.

INDICATOR - vacuum, tee

1шт.

17

H267112

HOSE ASSY.

HOSE - suction, 26" (660 mm) long with 90 degree tube end

1шт.

18

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, male, Includes: Ref. 19

1шт.

20

REF

INSTRUCTION

PUMP ASSEMBLY - line layer, Sundstrand, parts list figure 358

1шт.

21

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - straight, male, Includes: Ref. 22

2шт.

23

H356600

HOSE

- DRAIN, 132" (3353 mm) long, Serial Range: pump-motor

1шт.

24

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, worm drive, SAE No. 12

2шт.

25

REF

INSTRUCTION

MOTOR ASSEMBLY - line layer, Sundstrand, parts list figure 364

1шт.

26

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - 90 degree, adjustable, male, Includes: Ref. 27

1шт.

28

H353516

HOSE

- drain, 96" (2438 mm) long, Serial Range: motor-reservoir

1шт.

29

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, worm drive, SAE No. 12

2шт.

30

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - straight, male

1шт.

31

221-378

ELBOW,90 Degree, 3/4" NPT

- 90 degree pipe, female, 3/4" NPT

1шт.

32

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4" NPT x 1-3/8" long

1шт.

33

221-608

REDUCER,Hex, 1 1/4" x 3/4" NPT

BUSHING - pipe, reducing, 1-1/4" NPT to 3/4" NPT

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting

1шт.
