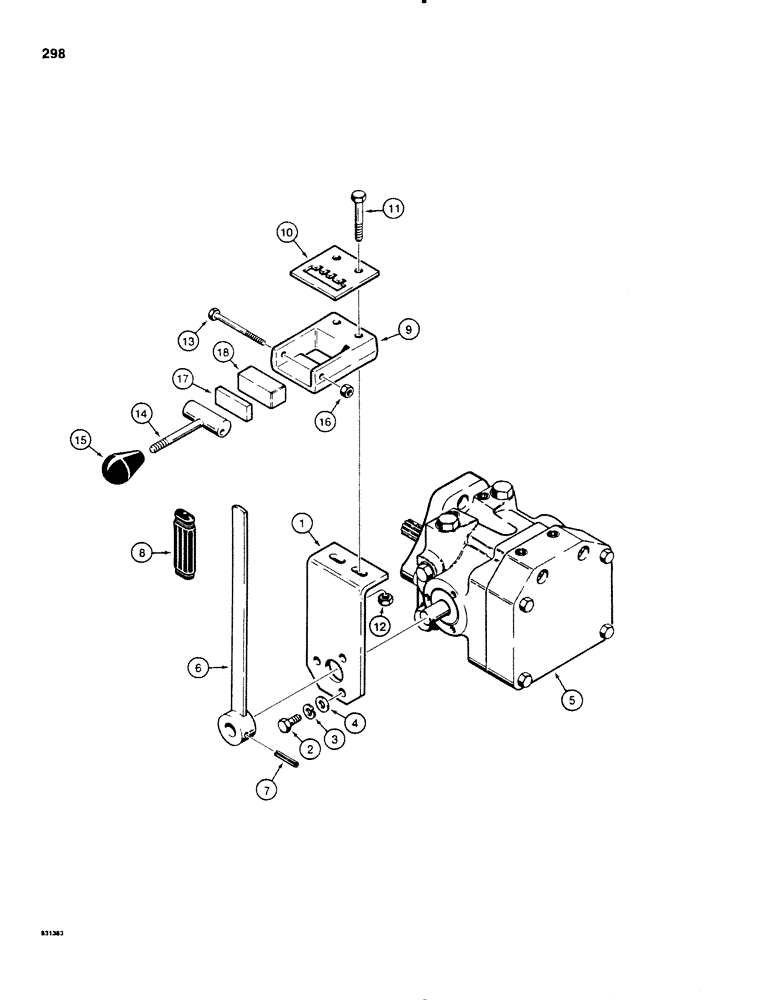

Запчасти Case P60 (298) - LINE LAYER PUMP CONTROLS, USED ON 30+4 S/N 1139802 AND AFTER, ON 40+4 S/N 1140505 AND AFTER (35) - HYDRAULIC SYSTEMS

1

NLS

NO LONGER SERVICED

BRACKET - pump controls

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

4

195-521

WASHER,5/16", SAE

- flat, 5/16"

3шт.

5

H619676

FASTENER

PUMP - hydraulic, line layer, sundstrand, see figure 290

1шт.

6

H632539

LEVER

HANDLE - pump control

1шт.

7

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1-1/8", Slotted, Shaft

1шт.

8

H195701

HANDLE

GRIP - lever

1шт.

9

H351593

BRACKET

- control

1шт.

10

H351577

PLATE

COVER - control

1шт.

11

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

- hex head, 1/4" - 20 NC x 2"

2шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

13

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex head, 1/4" - 20 NC x 2-3/4"

1шт.

14

H577783

CAM

LEVER - cam locking

1шт.

15

A14051

GRIP

KNOB - handle

1шт.

16

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

17

H299149

BLOCK

CUSHION - cam

1шт.

18

H351569

LOCK

BLOCK - cam lock

1шт.
