Запчасти Case P60 (294) - LINE LAYER PUMP CONTROLS, USED BEF. 30+4 S/N 5465, BEF. 40+4 S/N 4045, & BEF. 30+4 SPECIAL S/N 3761 (35) - HYDRAULIC SYSTEMS

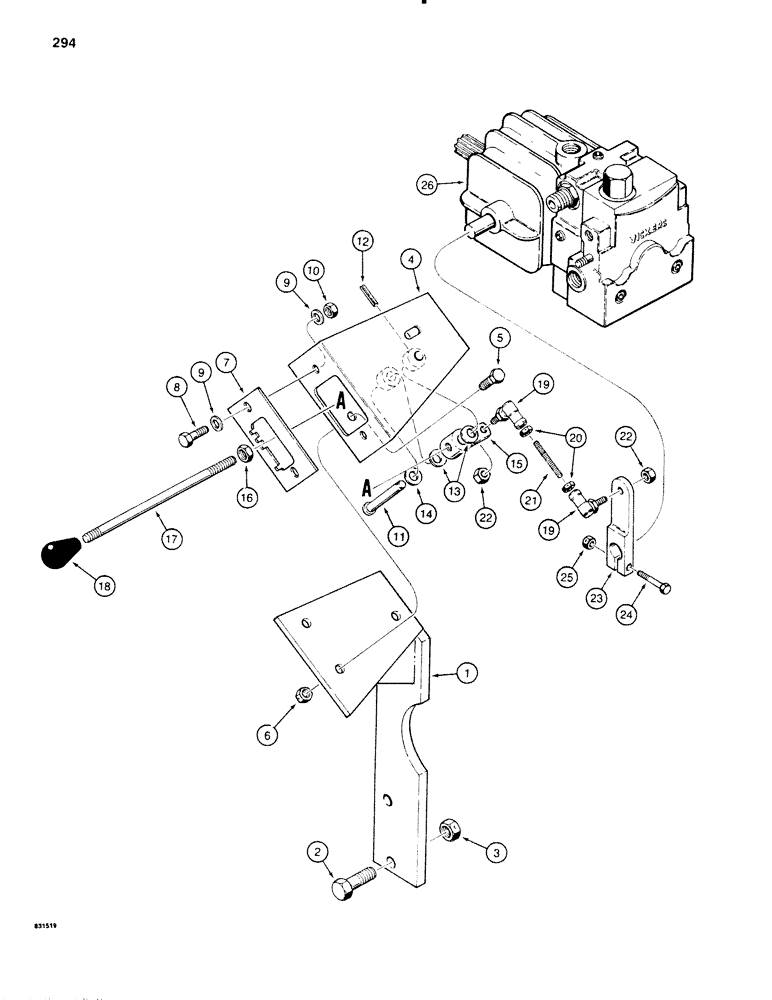

Схема запчастей Case P60 - (294) - LINE LAYER PUMP CONTROLS, USED BEF. 30+4 S/N 5465, BEF. 40+4 S/N 4045, & BEF. 30+4 SPECIAL S/N 3761 (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

H571026

PEDESTAL

BRACKET - support, pump controls

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

4

H563585

BRACKET

- pump controls

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

3шт.

7

H236836

PLATE ASSY.

PLATE - adjusting

1шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

195-103

WASHER,5/16"

- flat, 5/16"

4шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16' - 18 NC

2шт.

11

H201418

SHAFT

- lever mounting

1шт.

12

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1-1/8", Slotted, Shaft

1шт.

13

H202325

WASHER

- spring, special

2шт.

14

195-106

WASHER,1/2"

- flat, 1/2"

1-2шт.

15

H570523

LEVER

- control

1шт.

16

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

17

H562561

HANDLE

- control

1шт.

18

A14051

GRIP

KNOB - handle

1шт.

19

H169920

BALL JOINT

- lever

2шт.

20

131-1168

LOCK NUT,1/4"-28, GA

NUT, LOCK, 1/4"-28, GA

2шт.

21

H190512

ROD

- adjusting

1шт.

22

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

23

H236521

LEVER

- pump control

1шт.

24

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

25

131-1102

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4" - 20 NC

1шт.

26

H577536

PUMP

- hydraulic, line layer, Vickers, see figure 288

1шт.

Выбрано товаров: 26
