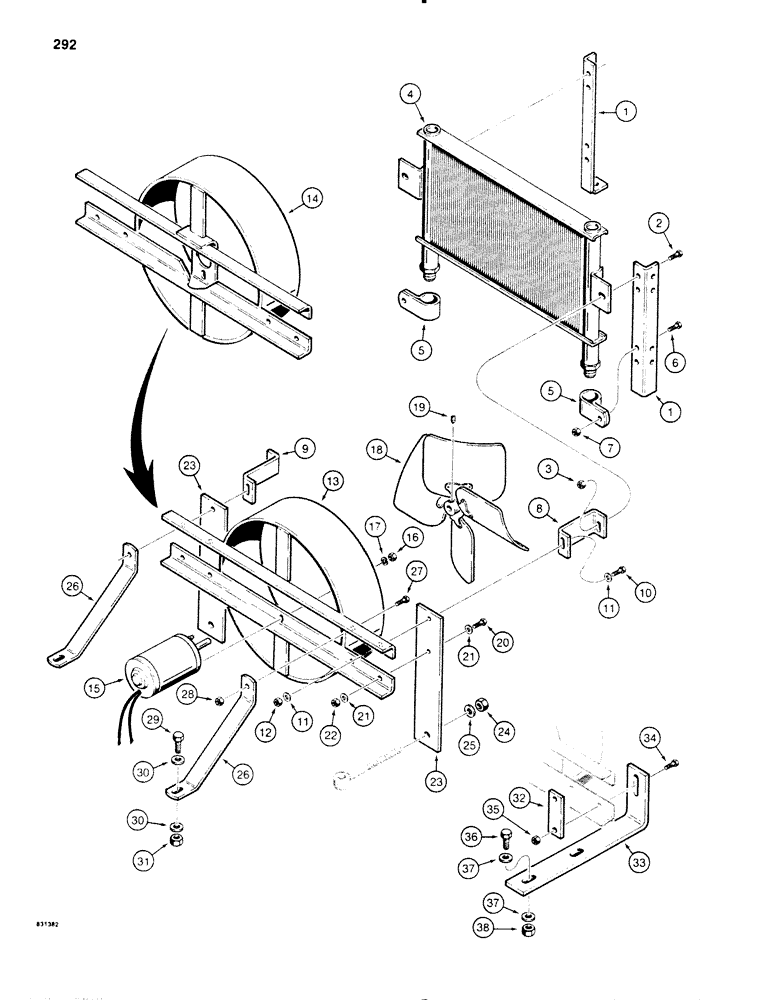

Запчасти Case P60 (292) - OIL COOLER AND FAN MOUNTING (35) - HYDRAULIC SYSTEMS

1

H559906

ANGLE

BRACKET - oil cooler mounting, front

2шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" -18 NC

2шт.

4

H559609

COOLER, OIL

OIL COOLER - hydraulic

1шт.

5

H195081

CLAMP

- oil cooler, lower

2шт.

6

113-1180

BOLT - hex head, 1/4" - 20 NC

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

H195040

BRACKET

- oil cooler, upper, right-hand

1шт.

9

H195057

BRACKET

- oil cooler, upper, left-hand

1шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

11

195-103

WASHER,5/16"

- flat, 5/16"

4шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT- hex, self-locking, 5/16" - 18 NC

2шт.

13

H559898

MOUNTING PARTS

BRACKET - shroud and fan mounting, if used

1шт.

14

H621888

MOUNTING PARTS

BRACKET - shroud and fan mounting, if used

1шт.

15

H602300

MOTOR, ELECTRIC

MOTOR - fan

1шт.

16

129-37

NUT,#10-32

2шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

18

H191460

FAN

- motor, oil cooler

1шт.

19

178-831

SET SCREW,Hex Soc, #10-32 x 3/8"

= jex spclet jead. No. 10 - 32 NC x 3/8"

1шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

21

195-103

WASHER,5/16"

- flat, 5/16"

4-8шт.

22

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex , self-locking, 5/16" - 18 NC

4шт.

23

H195065

BRACE

BRACKET - support, rear 30+4 and 40+4 trenchers

2шт.

24

131-168

LOCK NUT,1/2"-20, GA

NUT - hex, self-locking, 1/2" - 20 NF 30+4 and 40+4 trenchers

2шт.

25

195-533

WASHER,1/2", SAE

- flat, 1/2", 30+4 and 40+4 trenchers

2шт.

26

H195073

BRACE

- support, rear 30+4 and 40+4 trenchers

2шт.

27

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

30+4 and 40+4 trenchers Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

28

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16:" - 18 NC 30+4 and 40+4 trenchers

1шт.

29

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

30+4 and 40+4 trenchers Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

29

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

40+4 Deutz only 30+4 and trenchers Hex, 3/8"-16 x 1 3/4", G5

2шт.

30

195-525

WASHER,3/8", SAE

- flat, 3/8" 30+4 and 40+4 trenchers

4шт.

31

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, 30+4 and 40+4 trenchers

2шт.

32

H205435

STRAP

PLATE - tie 30+4 special

2шт.

33

H205401

ANGLE

BRACE - support, rear 30+4 special

2шт.

34

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

30+4 special Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

35

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC 30+4 special

1шт.

36

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

30+4 special Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

37

195-525

WASHER,3/8", SAE

- flat, 3/8" 30+4 special

8шт.

38

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, 30+4 special

4шт.
