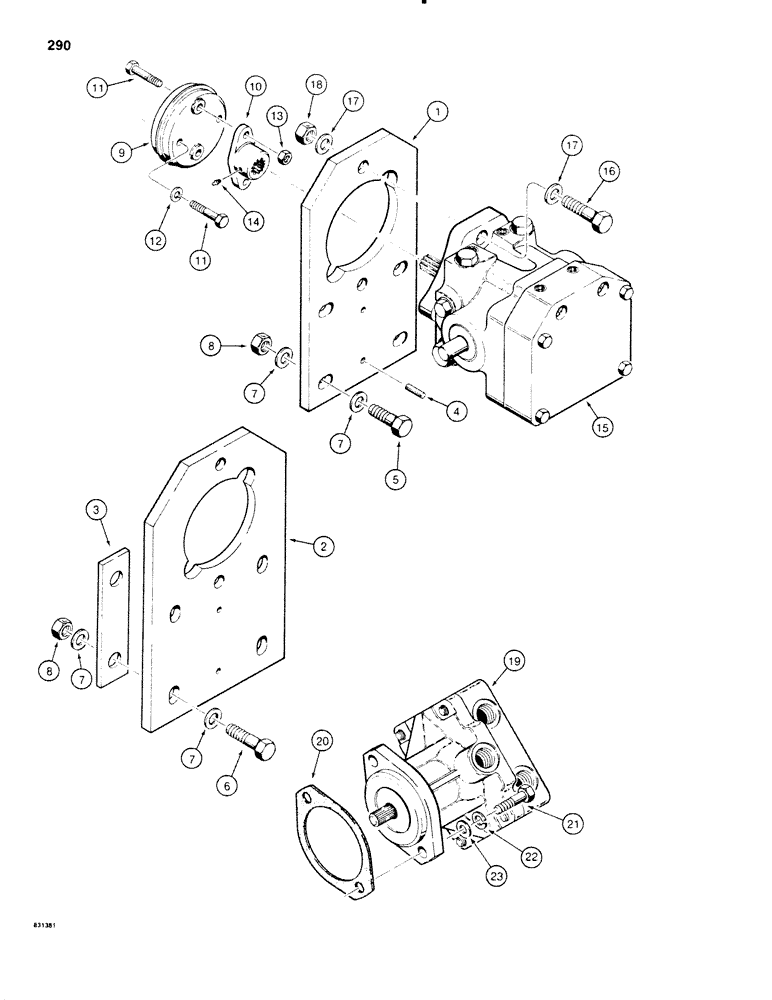

Запчасти Case P60 (290) - LINE LAYER PUMP AND MOTOR MOUNTING, USED ON 30+4 S/N 5465 AND AFTER, ON 40+4 S/N 4045 AND AFTER (35) - HYDRAULIC SYSTEMS

1

H284372

PLATE

- pump mounting, 30+4 and 30+4 Special only

1шт.

2

H284398

PLATE

- pump mounting, 40+4 only

1шт.

3

H286039

PLATE

- spacer, used on some older tractors when converting to Sundstrand pump, if used

2шт.

4

135-1250

PIN, Groove, 1/4" x 3/4", Type B, Hardened, plate alignment 1/4" x 3/4", Type B, Hardened

2шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

6

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Used with ref. 3 (H286039 only if used Hex, 1/2"-13 x 1 3/4", G5

4шт.

7

195-106

WASHER,1/2"

- flat, 1/2"

8шт.

8

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self - locking, 1/2" -13 NC

4шт.

9

H59543

COUPLING

- pump drive

1шт.

10

H602250

FLANGE

ADAPTER - pump drive, Sundstrand pump

1шт.

11

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

12

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4"-28 NF

1шт.

15

H602276

PUMP

- hydraulic, line layer, Sundstrand parts list figure 358, used on 30+4 SN 1139802 on 40+4 SN 4045 to 1140505, and on 30+4 Special SN, Serial Range: 3761-1140302

1шт.

15

H631937

PUMP

- hydraulic, line layer, Sundstrand, parts list figure 358. used on 30+4 SN 1139802 and after, on 40+4 SN 1140505 and after and on 30+4 Special SN 1140302 and after

1шт.

16

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

17

195-106

WASHER,1/2"

- flat, 1/2"

4шт.

18

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" -13 NC

2шт.

19

H585463

MOTOR

- hydraulic, line layer, Sundstrand, parts list figure 364, used on 30+4 SN 5465 to 1139802, on 40+4 SN 4045 to 1140505, and on 30+4 Special SN, Serial Range: 3761-1140302

1шт.

19

H619676

FASTENER

MOTOR - hydraulic, line layer, sundstrand, parts list figure 364, used on 30+4 SN 1139802 and after, on 40+4 SN 1140305 and after and on 30+4 Special SN 1140302 and after

1шт.

20

H32375

GASKET

- motor

1шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

195-104

WASHER,3/8"

- flat, 3/8"

2шт.
