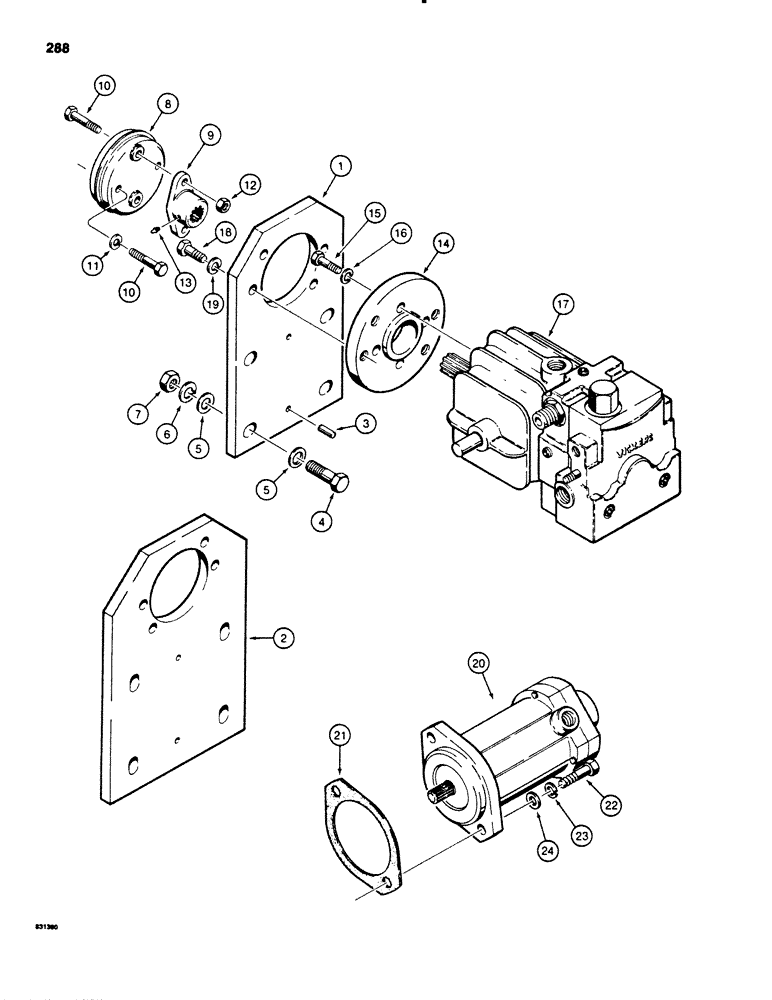

Запчасти Case P60 (288) - LINE LAYER PUMP AND MOTOR MOUNTING, USED BEFORE 30+4 SERIAL NO. 5465, BEFORE 40+4 SERIAL NO. 4045 (35) - HYDRAULIC SYSTEMS

1

H221226

PLATE

- pump mounting, 30+4 and 30+4 Special only

1шт.

H560458 Mtg Plate for H562462

1шт.

2

H220939

PLATE

- pump mounting, 40+4 only

1шт.

3

135-1250

Pin, Groove, 1/4" x 3/4", Type B, Hardened, plate alignment 1/4" x 3/4", Type B, Hardened

2шт.

4

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

195-106

WASHER,1/2"

- flat, 1/2"

8шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , If used 1/2"

4шт.

7

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self - locking, 1/2" - 13 NC

4шт.

8

H59543

COUPLING

- pump drive

1шт.

H53149 Adapter & Coupling for the H562462 Pump

1шт.

9

H585497

FLANGE

ADAPTER - pump drive

1шт.

10

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

11

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self - locking, 5/16" - 18 NC

2шт.

13

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4"-28 NF

1шт.

14

H236489

PLATE

- adapter, pump

1шт.

15

61-516

HEX SOC SCREW,5/16"-18 x 1"

MACHINE SCREW - hex socket head, 5/16" - 18 NC x 1"

4шт.

16

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

H577536

PUMP

- hydraulic, line layer, Vickers, parts list figure 354

1шт.

H562462 Vickers Pump, w/Keyed Shaft (H204305 Key)

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

H575282

SPARE PART

MOTOR -hydraulic, line layer, Vickers, parts list figure 362

1шт.

21

H32375

GASKET

- motor

1шт.

22

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

195-104

WASHER,3/8"

- flat, 3/8"

2шт.
