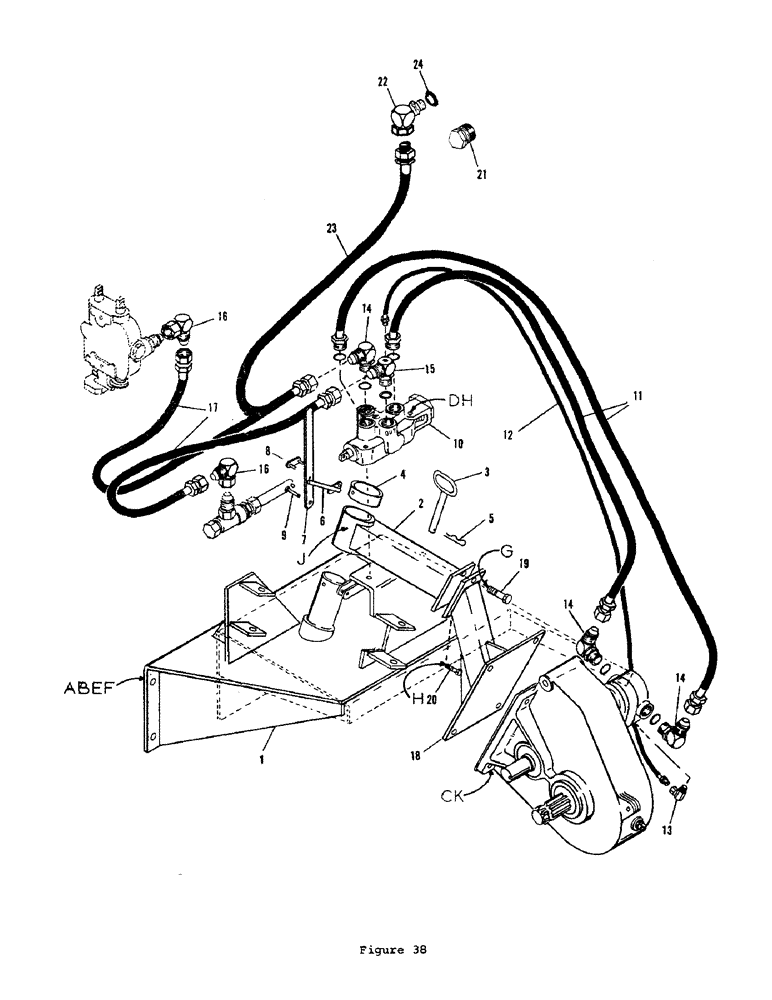

Запчасти Case P55 (78) - HYDRA-BORER ATTACHMENT

1

H571299

MOUNTING BRACKET

1шт.

2

H571497

PIVOT ARM

1шт.

3

H571356

LOCK PIN

1шт.

4

H223842

LOCK RING

1шт.

5

H32292

PIN

HAIR PIN

1шт.

6

H742858

ROLL PIN (3/8" x 2-3/8")

1шт.

7

H71415

LEVER

VALVE LEVER

1шт.

8

H748293

LINK

CONNECTOR LINK (#50)

1шт.

9

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN

1шт.

10

H544718

LOCK VALVE

CONTROL VALVE ASSEMBLY

1шт.

11

H91892

HOSE,0.50" ID x 48.00", SAE 100R1

2шт.

12

H223974

HOSE (3/16" x 48" - 1/8" MP - 1/4" MP)

1шт.

13

H71662

FITTING

ADAPTER - 90 degrees

1шт.

14

H31674

ADAPTER

- 90 degrees

3шт.

15

H211557

ADAPTER

- 90 degree - special

1шт.

16

H30726

ELBOW

ADAPTER - 90 degrees

2шт.

Used only on units not equipped with backhoe.

1шт.

17

H185165

HOSE (1/2" x 60" - 7/8 JIC Fe Sw - both ends)

2шт.

Used only on units not equipped with backhoe.

1шт.

18

H571323

LOWER PIVOT ARM

1шт.

19

H711382

BOLT

(5/8" x 1-3/4" NC)

1шт.

20

H709477

BOLT

(5/16" x 1-1/2" NC)

1шт.

21

H63347

PLUG

(3/8" level seal pipe)

1шт.

Used only on units equipped with backhoe.

1шт.

22

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ADAPTER - 90 degrees

1шт.

Used only on units equipped with backhoe.

1шт.

23

H68833

HOSE ASSY.

HOSE (1/2" x 58" - 1/2" MP - 7/8" JIC Fe Sw)

1шт.

Used only on units equipped with backhoe.

1шт.

24

H745174

O-RING

O RING

6шт.

a

H709865

BOLT

HHCS (3/8" x 1-1/4" NC)

3шт.

b

H709873

BOLT

HHCS (3/8" x 1-1/2" NC)

4шт.

c

H710665

BOLT

HHCS (1/2" x 2" NC)

4шт.

d

H709519

BOLT

HHCS (5/16" x 2-1/4" NC)

2шт.

e

H738468

WASHER

FLAT WASHER (3/8")

2шт.

f

H738013

LOCK NUT

NUT (3/8" NC - lock)

7шт.

g

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8" NC - lock)

1шт.

h

230-4215

NUT,5/16"-18, GA

NUT (5/16" NC - lock)

3шт.

j

H745299

FITTING

GREASE FITTING

1шт.

k

H738039

LOCK NUT

NUT (1/2 NC - lock)

4шт.
