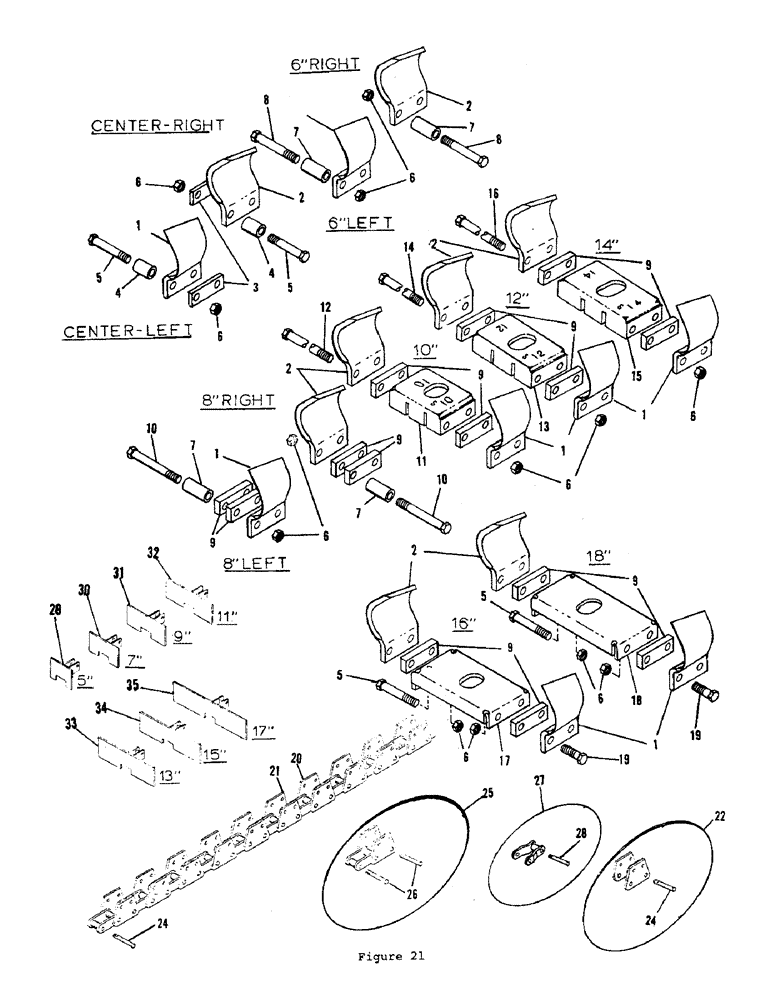

Запчасти Case P55 (44) - HEAVY DUTY CHAIN - TEETH

1

H251371

TOOTH

DIGGING TOOTH - left

1шт.

2

H251389

TOOTH

DIGGING TOOTH - right

1шт.

3

H138990

SPACER

- 5/16" flat

1шт.

4

H213496

SPACER

- 1" x 1-15/32" tubular

1шт.

5

H711457

BOLT

HHCS (5/8" x 3-1/2" NC)

1шт.

6

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8" NC - lock)

1шт.

7

H138982

SPACER

- 1" x 2-1/8" tubular

1шт.

8

H711473

BOLT

HHCS (5/8" x 4" NC)

1шт.

9

H251504

SPACER

- 1/2" flat

1шт.

10

H711515

BOLT

HHCS (5/8" x 5" NC)

1шт.

11

H135335

BRACKET

TOOTH BRACKET - 10"

1шт.

12

H711630

BOLT

HHCS (5/8" x 8" NC)

1шт.

13

H148551

BRACKET

TOOTH BRACKET - 12"

1шт.

14

H711713

BOLT

HHCS (5/8" x 10" NC)

1шт.

15

H135590

TOOTH

BRACKET - 14" (replaces H227686 )

1шт.

16

H756031

BOLT

HHCS (5/8" x 12" NC)

1шт.

17

H543892

TOOTH

BRACKET - 16"

1шт.

18

H543900

TOOTH

BRACKET - 18"

1шт.

19

H711739

BOLT

HHCS (5/8" x 1-3/4 NC)

1шт.

20

H601328

CHAIN (CE)

DIGGING CHAIN - 57 pitches

1шт.

Parts listed are for new style chain and are interchangeable with old style chain with these exceptions 1. Old style chains have flats in the side plate holes to match the pin. New style chains have full round pins. 2. To replace connector pin on old style chain, order full connector link assembly. 3. To replace two pitch repair section on old style chain, order (1) two pitch repair section and (1) connector link. This replaces a total of (3) pitches.

1шт.

21

H601336

CHAIN (CE)

DIGGING CHAIN - 10 pitches

1шт.

Parts listed are for new style chain and are interchangeable with old style chain with these exceptions 1. Old style chains have flats in the side plate holes to match the pin. New style chains have full round pins. 2. To replace connector pin on old style chain, order full connector link assembly. 3. To replace two pitch repair section on old style chain, order (1) two pitch repair section and (1) connector link. This replaces a total of (3) pitches.

1шт.

22

H275438

LINK

CONNECTOR LINK - 1 pitch

1шт.

Parts listed are for new style chain and are interchangeable with old style chain with these exceptions 1. Old style chains have flats in the side plate holes to match the pin. New style chains have full round pins. 2. To replace connector pin on old style chain, order full connector link assembly. 3. To replace two pitch repair section on old style chain, order (1) two pitch repair section and (1) connector link. This replaces a total of (3) pitches.

1шт.

24

H283663

AXLE PIN

CONNECTOR PIN

1шт.

Parts listed are for new style chain and are interchangeable with old style chain with these exceptions 1. Old style chains have flats in the side plate holes to match the pin. New style chains have full round pins. 2. To replace connector pin on old style chain, order full connector link assembly. 3. To replace two pitch repair section on old style chain, order (1) two pitch repair section and (1) connector link. This replaces a total of (3) pitches.

1шт.

25

H601344

LINK

REPAIR SECTION - 2 pitches

1шт.

Parts listed are for new style chain and are interchangeable with old style chain with these exceptions 1. Old style chains have flats in the side plate holes to match the pin. New style chains have full round pins. 2. To replace connector pin on old style chain, order full connector link assembly. 3. To replace two pitch repair section on old style chain, order (1) two pitch repair section and (1) connector link. This replaces a total of (3) pitches.

1шт.

26

H283663

AXLE PIN

CONNECTOR PIN

1шт.

Parts listed are for new style chain and are interchangeable with old style chain with these exceptions 1. Old style chains have flats in the side plate holes to match the pin. New style chains have full round pins. 2. To replace connector pin on old style chain, order full connector link assembly. 3. To replace two pitch repair section on old style chain, order (1) two pitch repair section and (1) connector link. This replaces a total of (3) pitches.

1шт.

27

H283671

DRAG LINK

HALF LINK

1шт.

Parts listed are for new style chain and are interchangeable with old style chain with these exceptions 1. Old style chains have flats in the side plate holes to match the pin. New style chains have full round pins. 2. To replace connector pin on old style chain, order full connector link assembly. 3. To replace two pitch repair section on old style chain, order (1) two pitch repair section and (1) connector link. This replaces a total of (3) pitches.

1шт.

28

H283663

AXLE PIN

CONNECTOR PIN

1шт.

Parts listed are for new style chain and are interchangeable with old style chain with these exceptions 1. Old style chains have flats in the side plate holes to match the pin. New style chains have full round pins. 2. To replace connector pin on old style chain, order full connector link assembly. 3. To replace two pitch repair section on old style chain, order (1) two pitch repair section and (1) connector link. This replaces a total of (3) pitches.

1шт.

29

H544429

SPARE PART

5" DIRT DRAG

1шт.

Includes 2 ea. Refs. 5 & 6.

1шт.

30

H544437

LINK

7" DIRT DRAG

1шт.

Includes 2 ea. Refs. 5 & 6.

1шт.

31

H544445

X

9" DIRT DRAG

1шт.

Includes 2 ea. Refs. 5 & 6.

1шт.

32

H544452

X

11" DIRT DRAG

1шт.

Includes 2 ea. Refs. 5 & 6.

1шт.

33

H544460

SPARE PART

13" DIRT DRAG

1шт.

Includes 2 ea. Refs. 5 & 6.

1шт.

34

H544478

X

15" DIRT DRAG

1шт.

Includes 2 ea. Refs. 5 & 6.

1шт.

35

H544486

SPARE PART

17" DIRT DRAG

1шт.

Includes 2 ea. Refs. 5 & 6.

1шт.

H586149

ASSEMBLY

TOOTH complete center left

1шт.

H586150

ASSEMBLY

TOOTH complete center right

1шт.

H585729

TOOTH complete 6" left

1шт.

H585737

TOOTH complete 6" right

1шт.

H585745

TOOTH complete 8" left

1шт.

H585752

TOOTH complete 8" right

1шт.

H585760

TOOTH complete 10"

1шт.

H585778

TOOTH complete 12"

1шт.

H585786

TOOTH complete 14"

1шт.

H585794

TOOTH complete 16"

1шт.

H585802

TOOTH complete 18"

1шт.
