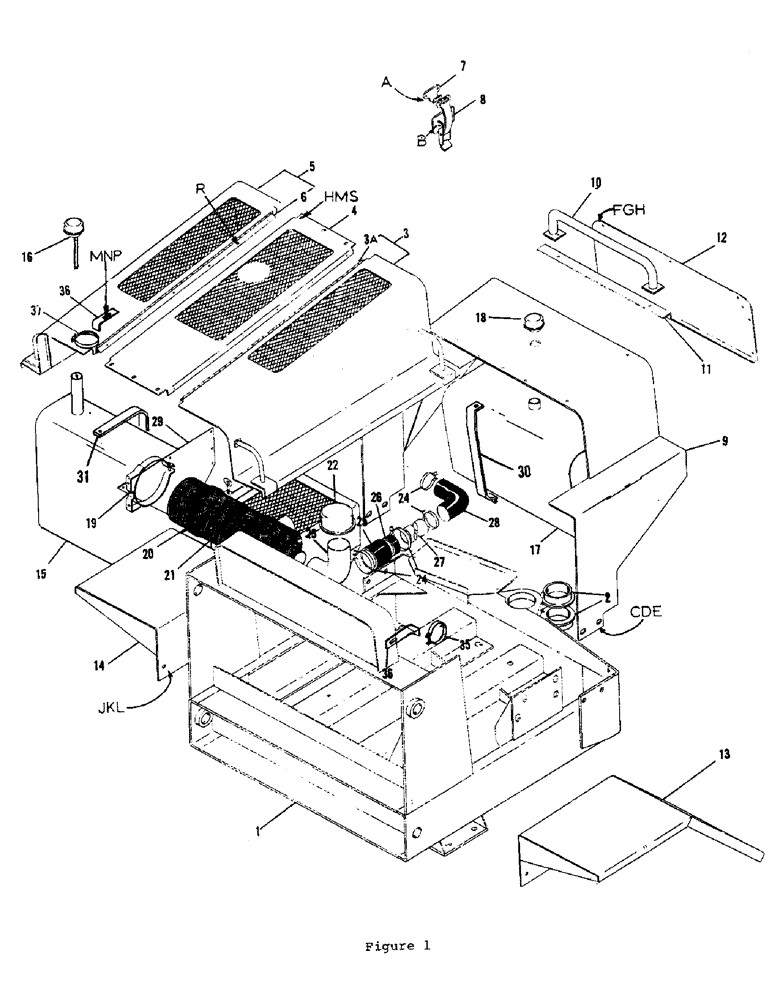

Запчасти Case P55 (04) - HOOD, FRONT FENDERS, OIL RESERVOIRS, AIR CLEANER - WISCONSIN ENGINES

1

H585554

FRONT FRAME ASSEMBLY

1шт.

Fits Ford engine installations up to spec. no. P55FG32, P55FD33, and all Wisconsin engine installations.

1шт.

1

H601542

FRONT FRAME ASSEMBLY

1шт.

Fits Ford engine installations spec. no. P55FG32, P55FD33 and up.

1шт.

2

H207449

BUSHING

PIVOT BUSHING

2шт.

3

H566448

HOOD - left

1шт.

Fits Ford engine installations up to spec. no. P55FG32, P55FD33, and all Wisconsin engine installations.

1шт.

3a

H213470

HOOD HINGE

1шт.

4

H567966

HOOD - center

1шт.

Fits Ford engine installations up to spec. no. P55FG32, P55FD33, and all Wisconsin engine installations.

1шт.

5

H566513

HOOD - right

1шт.

Fits Ford engine installations up to spec. no. P55FG32, P55FD33, and all Wisconsin engine installations.

1шт.

6

H213470

HOOD HINGE

1шт.

7

H196766

ROD

HOOD - strike (replaces H242321 )

4шт.

8

H242339

LATCH ASSY.

HOOD LATCH

4шт.

9

H566190

CONSOLE

1шт.

Fits Ford engine installations up to spec. no. P55FG32, P55FD33, and all Wisconsin engine installations.

1шт.

10

H569087

HANDLE ASM

1шт.

11

H211060

UPPER STRAP

1шт.

12

H215806

COVER PANEL

1шт.

13

H568246

FENDER - left front

1шт.

Fits Ford engine installations up to spec. no. P55FG32, P55FD33, and all Wisconsin engine installations.

1шт.

14

H570077

FENDER - right front

1шт.

Fits Ford engine installations up to spec. no. P55FG32, P55FD33, and all Wisconsin engine installations.

1шт.

15

H577627

RESERVOIR

OIL RESERVOIR - front

1шт.

Round cornered oil reservoirs

1шт.

15

H594929

RESERVOIR

OIL RESERVOIR - front

1шт.

Square cornered oil reservoirs.

1шт.

16

H236083

DIPSTICK

& BREATHER

1шт.

17

H566471

OIL RESERVOIR - rear

1шт.

Round cornered oil reservoirs

1шт.

17

H594937

OIL RESERVOIR - rear

1шт.

Square cornered oil reservoirs.

1шт.

18

H222018

DIPSTICK

& BREATHER

1шт.

19

H129551

BAND

AIR CLEANER BAND

2шт.

20

H129536

CLEANER

BODY - air cleaner

1шт.

Fits Ford engine installations up to spec. no. P55FG32, P55FD33, and all Wisconsin engine installations.

1шт.

21

H151969

ELEMENT

AIR CLEANER ELEMENT

1шт.

22

H129544

CAP

- air cleaner

1шт.

23

H102228

ELBOW - air cleaner (2-3/8" x 90 degrees)

1шт.

24

H42804

HOSE CLAMP

4шт.

25

H158592

HOSE,57.20 mm ID x 101.60 mm, SAE 20R2

Air Cleaner 57.20 mm ID x 101.60 mm, SAE 20R2

1шт.

26

H158493

HOSE BUSHING

1шт.

27

H217257

AIR CLEANER TUBE 1.75" OD x 12" L

1шт.

28

H162834

AIR CLEANER HOSE - 90 degrees

1шт.

29

H220368

OIL COOLER COVER PANEL

1шт.

30

H215855

STRAP

1шт.

Round cornered oil reservoirs

1шт.

31

H272229

STRAP

2шт.

Square cornered oil reservoirs.

1шт.

32

H215863

STRAP

2шт.

Round cornered oil reservoirs

1шт.

34

H272237

STRAP

1шт.

Square cornered oil reservoirs.

1шт.

35

H84145

CLAMP

HOSE CLAMP

1шт.

Fits Ford engine installations up to spec. no. P55FG32, P55FD33, and all Wisconsin engine installations.

1шт.

36

H224774

BRACKET

SUPPORT BRACKET

2шт.

Fits Ford engine installations up to spec. no. P55FG32, P55FD33, and all Wisconsin engine installations.

1шт.

37

H164145

HOSE CLAMP

1шт.

a

H755504

RIVET (1/4" x 3/8") hood strike

8шт.

b

H755546

RIVET (1/4" x 1/8") hood latch

8шт.

c

H710632

BOLT

HHCS (1/2" x 1-1/4" NC)

4шт.

d

H738484

WASHER

FLAT WASHER (1/2")

4шт.

e

H738039

LOCK NUT

NUT (1/2" NC - lock)

4шт.

f

H749499

SCREW

STCS (5/16" x 3/4")

7шт.

g

H739201

WASHER

LOCK WASHER (5/16")

7шт.

h

H738450

WASHER

FLAT WASHER

11шт.

j

H709857

BOLT

HHCS (3/8" x 1 NC)

4шт.

k

H709873

BOLT

HHCS (3/8 x 1-1/2" NC)

4шт.

l

H738013

LOCK NUT

NUT (3/8" NC - lock)

8шт.

m

230-4215

NUT,5/16"-18, GA

NUT (5/16" NC - lock)

5шт.

n

H709436

BOLT

HHCS (5/16" x 3/4" NC)

1шт.

p

H738450

WASHER

FLAT WASHER (5/16")

1шт.

r

H750216

WAGON BOX RIVET (3/16" x 1/2") hood

12шт.

s

H709451

BOLT (SPREADER)

HHCS (5/16" x 1" NC) center hood

4шт.
