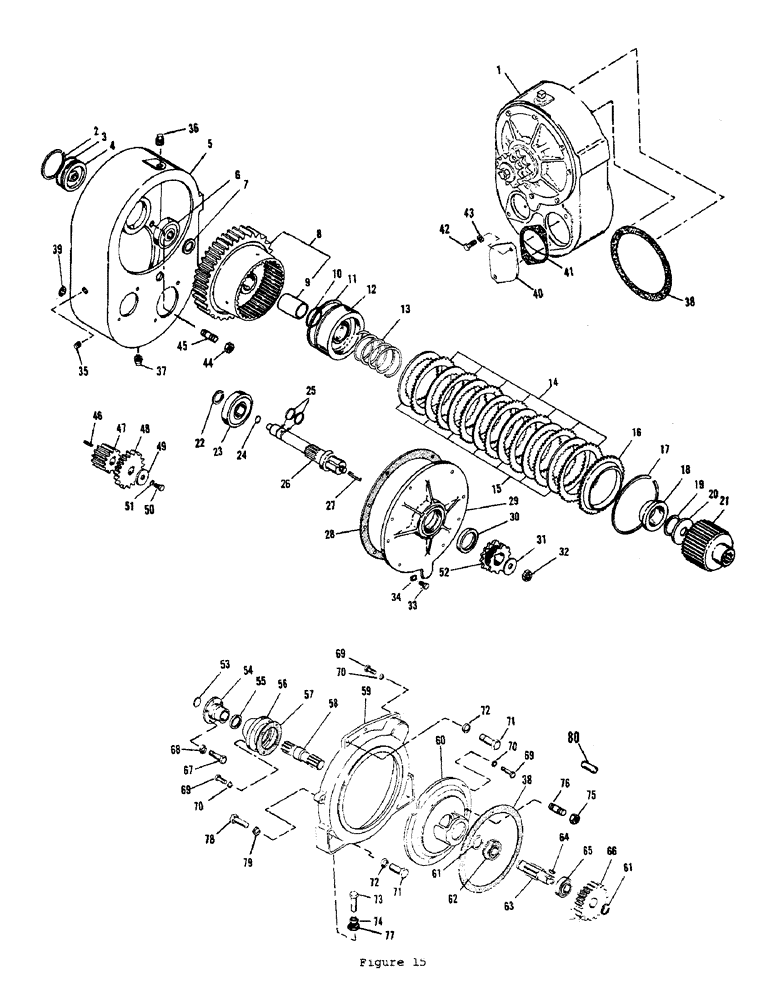

Запчасти Case P55 (32) - PTO CLUTCH ASSEMBLY

1

H591032

TRANSMISSION

PTO CLUTCH ASM

1шт.

2

H76356

RING, SNAP

SNAP RING

1шт.

3

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

O RING (replaces H76349 )

1шт.

4

H76307

FITTING

PRESSURE FITTING

1шт.

5

H262949

HOUSING

GEAR HOUSING

1шт.

6

H750570

BEARING

output

1шт.

7

H76315

SPACER

1шт.

8

H566869

GEAR WHEEL

TRENCHER GEAR & BSHG ASM

1шт.

9

H167072

BUSHING

1шт.

10

H66902

O-RING,0.21" Thk x 2.475" ID, -333, Cl 5, 75 Duro

O RING

1шт.

11

H66894

O-RING

PISTON SEAL

1шт.

12

H66852

PISTON

1шт.

13

H66910

VALVE SPRING

SPRING - piston

1шт.

14

H66878

CLUTCH ASSEMBLY

CLUTCH PLATE - driver

7шт.

15

H66951

CLUTCH PLATE

- driven

7шт.

16

H167122

GEAR

CLUTCH BACKER PLATE

1шт.

17

H66886

RING, SNAP

SNAP RING

1шт.

18

H66928

RETAINER

SPRING RETAINER

1шт.

19

H66936

SNAP RING,#250, 2.366", Ext Spiral

- spring ret

1шт.

20

H76323

WASHER

THRUST SPACER

1шт.

21

H95984

CLUTCH

HUB

1шт.

22

H751297

RING, SNAP

SNAP RING

1шт.

23

H747287

BEARING,50 mm ID x 130 mm OD x 31 mm

output

1шт.

24

H744672

O-RING

O RING

1шт.

25

H66944

RING

SEAL RING

2шт.

26

H95992

SHAFT

OUTPUT SHAFT

1шт.

27

H76406

KEY

- output shaft

1шт.

28

H76265

GASKET

COVER GASKET

1шт.

29

H262931

COVER ASSY

COVER

1шт.

29

H76224

COVER

1шт.

Up to Spec. no. P55WS22, P55FG23, P55FD24, Order H076224 cover if not replacing gear housing.

1шт.

30

H76380

OIL SEAL

OIL SEAL - output shaft

1шт.

31

H76414

WASHER

- output shaft

1шт.

32

H66969

NUT

- output shaft

1шт.

33

H718783

HHCS (3/8-16 x 1-1/4 NC)

8шт.

34

H739367

LOCK WASHER

WASHER (3/8 external star)

8шт.

35

H749606

PLUG - check level

1шт.

36

H749648

PLUG

- filler

1шт.

37

H91967

PLUG

DRAIN PLUG - magnetic

1шт.

38

H42580

GASKET

same on 207 diesel

1шт.

39

H70771

PLUG

GASKET SOFT PLUG

1шт.

40

H217067

PLATE

COVER PLATE

1шт.

41

H238303

GASKET

GASKET

1шт.

42

H710624

X

HHCS (1/2 x 1 NC)

2шт.

43

H739235

WASHER

LOCK WASHER (1/2)

2шт.

44

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

45

H297408

STUD

4шт.

46

H76398

KEY

(1/4 x 2-5/8)

1шт.

47

H76240

GEAR

- crank shaft

1шт.

48

H76257

GEAR WHEEL

GEAR - pump drive

1шт.

49

H76455

WASHER

1шт.

50

H714717

X

HHCS (7/16 x 1-1/4 NF)

1шт.

51

H739227

WASHER, LOCK

LOCK WASHER (7/16)

1шт.

52

H45054

SPROCKET ASSY.

SPROCKET - digging chain dr

1шт.

53

H42564

PLUG

FREEZE PLUG

1шт.

54

H124172

HUB CAP

DRIVE HUB 6 hole, 4 hole hub for Case 207 diesel is H331710

1шт.

55

H749218

OIL SEAL,44.45mm ID x 63.65mm OD x 7.95mm Thk

OIL SEAL same on 207 diesel

1шт.

56

H42515

RETAINER

BEARING RETAINER same on 207 diesel

1шт.

57

H42572

GASKET

same on 207 diesel

1шт.

58

H124263

SHAFT

-, Serial Range: engine-PTO

1шт.

59

H114181

FLYWHEEL HOUSING

1шт.

60

H262956

HOUSING ADAPTER

1шт.

61

H746735

RING, SNAP

SNAP RING same on 207 diesel

2шт.

62

H750604

BEARING

same on 207 diesel

1шт.

63

H42531

GEAR - pinion

1шт.

64

H42598

KEY

(5/16 x 7/8)

1шт.

65

H747196

BEARING

1шт.

66

H42549

GEAR

- pump drive

1шт.

67

H715490

BOLT

HHCS (9/16 x 2 NF)

6шт.

68

H739243

WASHER, LOCK

LOCK WASHER (9/16)

6шт.

69

H709865

BOLT

HHCS (3/8 x 1-1/4 NC)

1шт.

70

H739219

LOCK WASHER

(3/8)

1шт.

71

H716183

BOLT

HHCS (3/4 x 1-1/2 NF)

4шт.

72

H739268

WASHER

LOCK WASHER (3/4)

4шт.

73

H711390

BOLT

HHCS (5/8 x 2 NC)

2шт.

74

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

75

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

76

H297408

STUD

4шт.

77

H737775

NUT (5/8 NC - jam lock)

2шт.

78

H715870

BOLT

HHCS (5/8 x 2-1/2 NF)

4шт.

79

H739250

WASHER

LOCK WASHER (5/8)

4шт.

80

H755272

DOWEL

(3/8 x 1)

4шт.

Spec. no. P55FG56, P55FD57 and up.

1шт.
