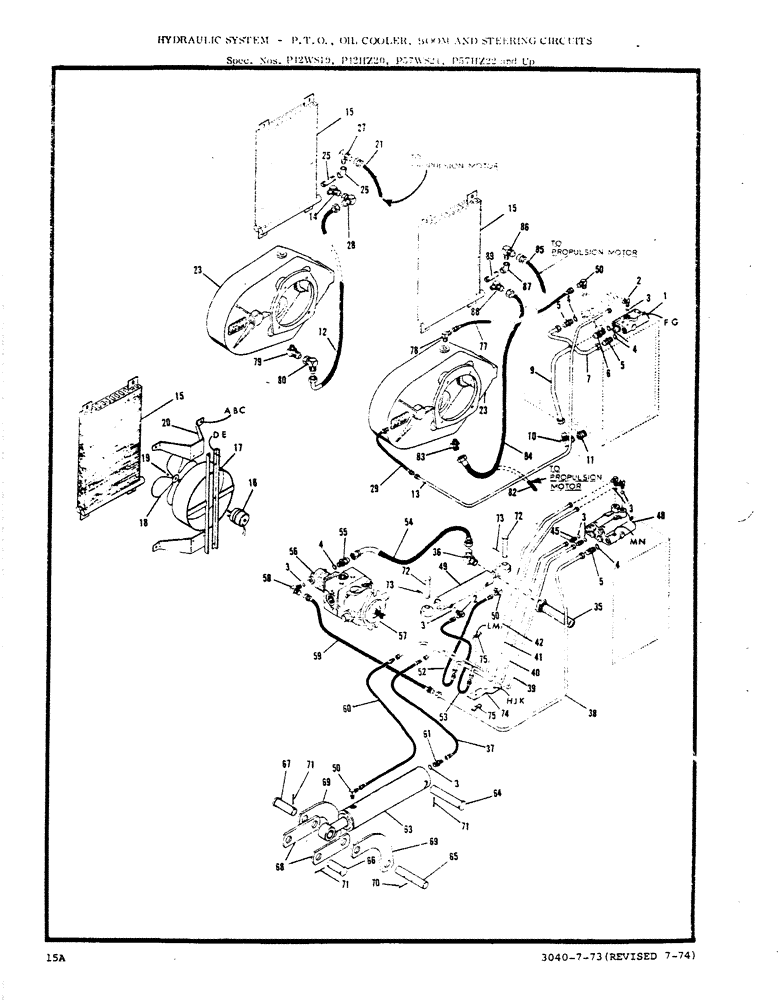

Запчасти Case P42 (15A) - HYDRAULIC SYSTEM, P.T.O., OIL COOLER, BOOM AND STEERING CIRCUITS

1

H571968

VALVE

P.T.O. Control Valve (See Figure 26)

1шт.

2

H165068

ADAPTER

-90 degrees

3шт.

3

H745158

O-RING

O Ring

7шт.

4

H745166

O-RING

O Ring

4шт.

5

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Adapter - Straight

2шт.

6

H191742

ADAPTER

- Straight

1шт.

7

H592436

TUBE,0.5" OD

- Boom And Steering Valve To P.T.O. Valve

1шт.

9

H599423

TUBE,0.625" OD

- P.T.O. Valve to Reservoir

1шт.

10

277165

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

Adapter - 90 degrees

2шт.

11

H753970

BUSHING

Pipe Bushing (1" To 3/4" Black)

1шт.

12

H265454

Hose (3/4" x 34" - 1 1/16" JIC Fe. Sw. - Both Ends)

1шт.

Up To Spec No. P42WS27, P42HZ28, P57WS29, P57HZ30.

1шт.

13

H592444

TUBE,0.375" OD

- P.T.O. Valve To P.T.O.

1шт.

14

H91595

ADAPTER

- 90 degrees

1шт.

Up To Spec No. P42WS27, P42HZ28, P57WS29, P57HZ30.

1шт.

15

H592758

COOLER, OIL

Heat Exchanger Asm.

1шт.

16

H602300

MOTOR, ELECTRIC

Oil Cooler Fan Motor

1шт.

17

H559898

MOUNTING PARTS

Fan & Motor Mtg. Bracket

1шт.

18

H271106

FAN

Oil Cooler Fan

1шт.

19

H753277

X

Set Screw (#10-32 x 3/8")

1шт.

20

H257311

BRACKET

Cooler Mtg. Bracket

2шт.

21

H71399

HOSE

(1/2 x 42 - 7/8 JIC Fe. Sw.-Both Ends)

1шт.

Up To Spec No. P42WS27, P42HZ28, P57WS29, P57HZ30.

1шт.

23

H589978

ASSEMBLY

P.T.O. Assembly (See Figure 20)

1шт.

25

H751586

Nipple (1/2" x 2 1/2" Pipe)

1шт.

Up To Spec No. P42WS27, P42HZ28, P57WS29, P57HZ30.

1шт.

26

H749713

ELBOW

(1/2" x 90 degrees Black Pipe)

1шт.

Up To Spec No. P42WS27, P42HZ28, P57WS29, P57HZ30.

1шт.

27

H91595

ADAPTER

- 90 degrees

1шт.

Up To Spec No. P42WS27, P42HZ28, P57WS29, P57HZ30.

1шт.

28

218-5375

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Adapter - 90 degrees

1шт.

Up To Spec No. P42WS27, P42HZ28, P57WS29, P57HZ30.

1шт.

29

H270454

HOSE ASSY.

Hose (1/4" x 20" - 1/4" Male Pipe - 9/16" JIC Male)

1шт.

31

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

Adapter - 90 degrees

1шт.

35

H151399

FILTER STRAINER

Suction Filter Asm.

4шт.

36

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degrees

1шт.

37

H165340

HYDRAULIC HOSE,6.35 mm ID x 304.80 mm, SAE 100R1

6.35 mm ID x 304.80 mm, SAE 100R1

1шт.

38

H592469

TUBE,0.5" OD

- Pressure

1шт.

39

H592428

TUBE,0.375" OD

- Tube HD End Steer. Cyl.

1шт.

40

H592394

TUBE,0.375" OD

- HD End Boom Cyl.

1шт.

41

H592410

TUBE,0.375" OD

- Rod End Steer. Cyl.

1шт.

42

H592402

TUBE,0.375" OD

- Rod End Boom Cyl.

1шт.

45

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

CONNECTOR, HYD., 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

48

H550079

LOCK VALVE

Boom & Steering Valve Asm. (See Figure 26)

1шт.

49

H547331

CYLINDER

Steering Cyl. Asm. (See Figure 26)

1шт.

50

H165076

ELBOW

Adapter - 90 degrees

3шт.

52

H165282

HYDRAULIC HOSE,6.35 mm ID x 533.40 mm, SAE 100R1

6.35 mm ID x 533.40 mm, SAE 100R

2шт.

53

H165340

HYDRAULIC HOSE,6.35 mm ID x 304.80 mm, SAE 100R1

6.35 mm ID x 304.80 mm, SAE 100R1

2шт.

54

H267112

HOSE ASSY.

Hose & Tube (3/4" x 26" - 1 1/16" JIC Fe. Sw. - Both Ends)

1шт.

55

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Adapter - Straight

1шт.

56

H588418

PUMP

Boom & Steer. Pump Asm. (See Figure 28)

1шт.

57

H585307

PUMP

Propulsion Pump Asm. (See Figure 28)

1шт.

58

H275271

FITTING

Adapter - 90 degrees

1шт.

59

H202101

ELECTRICAL WIRE

Hose (3/8" x 28" - 3/4" JIC Fe. Sw.)

1шт.

60

H195362

HYDRAULIC HOSE,6.35 mm ID x 685.80 mm, SAE 100R1

6.35 mm ID x 685.80 mm, SAE 100R1

1шт.

61

H112565

COUPLING, BREAK AWAY

Adapter - Straight

1шт.

63

H530519

CYLINDER BLOCK

Boom Cyl. Asm. (See Figure 26)

1шт.

64

H114983

AXLE PIN,31.72mm OD x 163.51mm L

Pin (1 1/4" x 6 1/4")

1шт.

65

H150144

AXLE PIN

Pin (1 1/4" x 4 11/16")

1шт.

66

H114959

AXLE PIN

Pin (1 1/4" x 3 1/16")

1шт.

67

H114975

AXLE PIN

Pin (1 1/4" x 3 3/4")

1шт.

68

H114116

DRAG LINK

Link - Straight

2шт.

69

H114108

DRAG LINK

Link - Curved

2шт.

70

H740340

BOLT

Cotter Pin (3/16" x 3 3/4")

2шт.

71

H740548

PIN

Cotter Pin (1/4" x 1 3/4")

3шт.

72

H70623

AXLE PIN

Pin (1" x 3 1/2")

2шт.

73

H740324

HARDWARE

Cotter Pin (3/16" x 3 1/2")

2шт.

74

H264234

BRACKET

Tube Bracket

1шт.

75

H45468

CLAMP

Tube Clamp

2шт.

77

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

6.35 mm ID x 609.60 mm, SAE 100R1

1шт.

78

H190082

ADAPTER

- 90 degrees

1шт.

79

H224865

ELBOW

Adapter - 90 degrees

1шт.

Up To Spec No. P42WS27, P42HZ28, P57WS29, P57HZ30.

1шт.

80

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

Adapter - 90 degrees

1шт.

Up To Spec No. P42WS27, P42HZ28, P57WS29, P57HZ30.

1шт.

82

H250720

Hose (3/4 x 37 - 1 1/16 JIC Fe. Sw. x 7/8 JIC Fe. Sw.)

1шт.

Spec. No. P42WS27, P42HZ28, P57WS29, P57HZ30, And Up Without Line-Layer.

1шт.

83

H265090

ELBOW

- 45 degrees

1шт.

Spec. No. P42WS27, P42HZ28, P57WS29, P57HZ30 And Up.

1шт.

84

H265454

Hose (3/4 x 34 - 1 1/16 JIC Fe. Sw. - Both Ends)

1шт.

Spec. No. P42WS27, P42HZ28, P57WS29, P57HZ30 And Up With Line-Layer.

1шт.

85

H71399

HOSE

(1/2 x 42- 7/8 JIC Fe. Sw. - Both Ends)

1шт.

Spec. No. P42WS27, P42HZ28, P57WS29, P57HZ30 And Up With Line-Layer.

1шт.

86

H91595

ADAPTER

Elbow - 90 degrees

1шт.

Spec. No. P42WS27, P42HZ28, P57WS29, P57HZ30 And Up With Line-Layer.

1шт.

87

H749713

ELBOW

- 90 degrees

1шт.

Spec. No. P42WS27, P42HZ28, P57WS29, P57HZ30 And Up With Line-Layer.

1шт.

88

H224865

ELBOW

- 90 degrees

1шт.

Spec. No. P42WS27, P42HZ28, P57WS29, P57HZ30 And Up With Line-Layer.

1шт.

89

221-193

PIPE,Nipple, 1/2" NPT x 3 1/2"

Nipple (1/2 x 3 1/2 Pipe)

1шт.

Spec. No. P42WS27, P42HZ28, P57WS29, P57HZ30 And Up With Line-Layer.

1шт.

a

H709857

BOLT

HHCS (3/8" x 1" NC)

1шт.

b

H738013

LOCK NUT

Nut (3/8" NC-Lock)

1шт.

c

H738468

WASHER

(3/8" Flat)

1шт.

d

H709436

BOLT

HHCS (5/16" x 3/4" NC)

1шт.

e

230-4215

NUT,5/16"-18, GA

Nut (5/16" NC - Lock)

1шт.

f

H709170

BOLT

HHCS (1/4" x 2" NC)

1шт.

g

H737999

LOCK NUT

Nut (1/4" NC - Lock)

1шт.

h

H710632

BOLT

HHCS (1/2" x 1 1/4" NC)

1шт.

j

H738484

WASHER

(1/2" Flat)

1шт.

k

H738039

LOCK NUT

Nut (1/2" NC - Lock)

1шт.

l

H709477

BOLT

HHCS (5/16" x 1 1/2" NC)

1шт.

m

230-4215

NUT,5/16"-18, GA

Nut (5/16" NC - Lock)

1шт.

n

H709501

BOLT

HHCS (5/16" x 2 1/2" NC)

1шт.
