Запчасти Case P42 (10) - DIGGING CHAIN, DIGGING TEETH

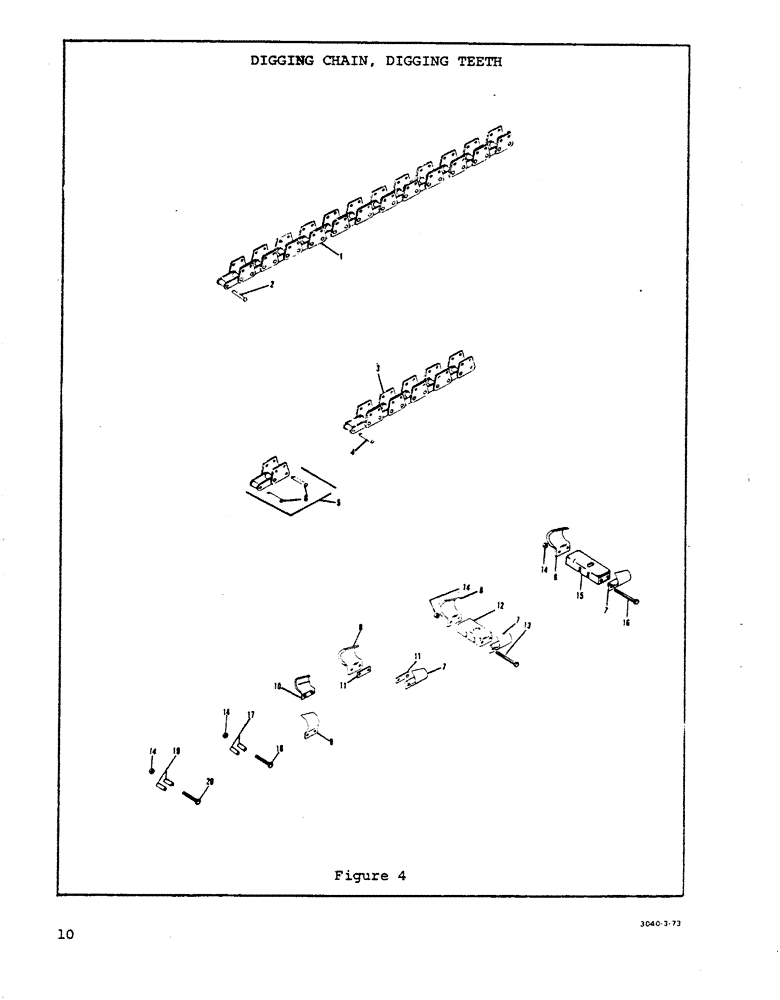

Схема запчастей Case P42 - (10) - DIGGING CHAIN, DIGGING TEETH
11
13
8
11
14
10
12
13
5
18
1
17
20
7
2
4
16
6
14
9
7
7
14
15
8
3
16

Артикул

Название

Примечание

Количество

1

H542068

CHAIN (CE)

Digging Chain-48 Pitches

1шт.

To order chain for 3 ft. Boom, Order: one H542068 To order chain for 4 ft. Boom, Order: one H542068 and one H538512 To order chain for 5 ft. Boom, Order: one H542068 and two H538512

1шт.

2

H145011

AXLE PIN

Connector Pin

1шт.

3

H538512

CHAIN (CE)

Digging Chain-10 Pitches

1шт.

To order chain for 3 ft. Boom, Order: one H542068 To order chain for 4 ft. Boom, Order: one H542068 and one H538512 To order chain for 5 ft. Boom, Order: one H542068 and two H538512

1шт.

4

H145011

AXLE PIN

Connector Pin

1шт.

5

H543983

CHAIN (CE)

Repair Section

1шт.

6

H145011

AXLE PIN

Connector Pin

2шт.

7

H131268

TOOTH

Standard Digging Tooth-Left

1шт.

For one 4" or 6" L.H. Standard Tooth, order one H131276, one H130815, two H138016, two H711432 and two H737494.

1шт.

For one 8" L.H. Standard Tooth, order one H131276, one H130815, two H138008, two H711457 and two H737494.

1шт.

8

H131268

TOOTH

Standard Digging Tooth-Right

1шт.

For one 4" or 6" R.H. Standard Tooth, order one H131268, one H130815, two H138016, two H711432 and two H737494.

1шт.

For one 8" R.H. Standard Tooth, order one H131268, one H130815, two H138008, two H711457 and two H737494.

1шт.

9

H151258

TOOTH

Center Cut to 4" Mud Tooth - Left

1шт.

For one Center Cut to 4" L.H. Mud Tooth, order one H151258, two H138008, two H711457 and two H737494.

1шт.

10

H151241

TOOTH

Center Cut to 4" Mud Tooth - Right

1шт.

For one Center Cut to 4" R.H. Mud Tooth, order one H151241, two H138008, two H711457 and two H737494.

1шт.

11

H130815

SPACER

1шт.

12

H148031

SUPPORT

Tooth Bracket -10" Tooth

1шт.

For one complete 10" Digging Tooth Assembly, order H544742

1шт.

13

H711572

BOLT

HHCS (5/8" x 6 1/2" NC)

1шт.

14

H737494

LOCK NUT

Nut (5/8" NC - Lock)

1шт.

15

H148049

SUPPORT

Tooth Bracket - 12" Tooth

1шт.

For one complete 12" Digging Tooth Assembly, order H544759

1шт.

16

H711655

BOLT

HHCS (5/8 1/2" NC)

1шт.

17

H138008

SPACER

Tubular Spacer - 1 3/4" Long

1шт.

18

H711457

BOLT

HHCS (5/8" x 3 1/2" NC)

1шт.

19

H138016

SPACER

Tubular Spacer - 1 1/4" Long

1шт.

20

H711432

BOLT

HHCS (5/8" x 3" NC)

1шт.

Выбрано товаров: 30
