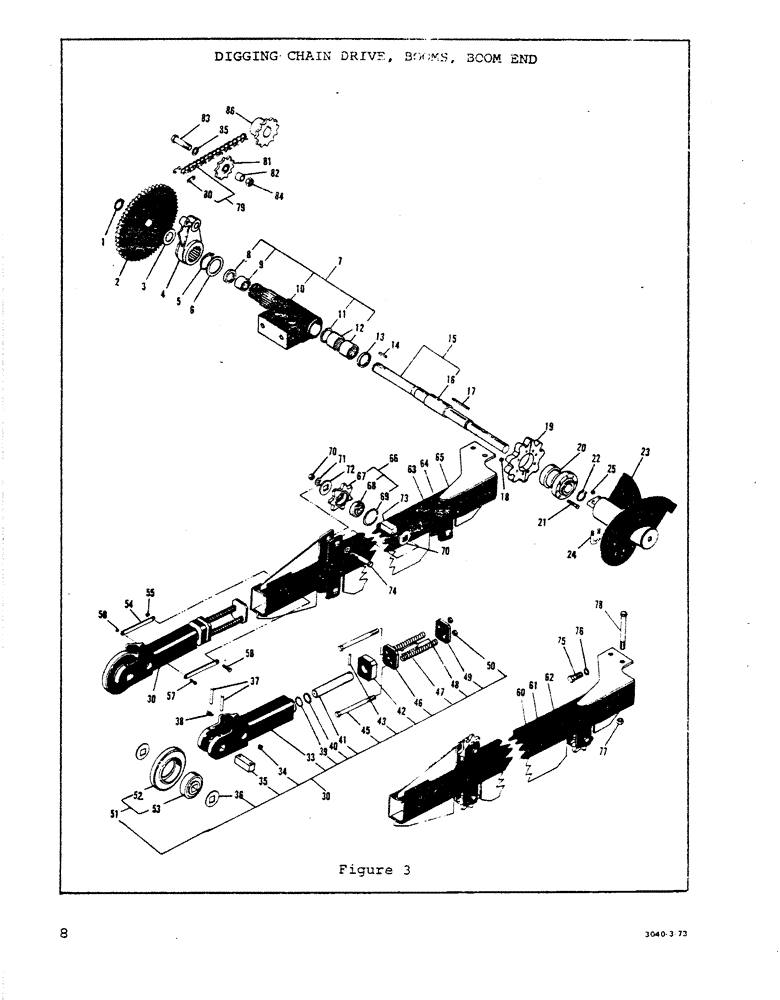

Запчасти Case P42 (08) - DIGGING CHAIN DRIVE, BOOMS, BOOM END

1

H746594

RING, SNAP

Snap Ring, 30+4 only

1шт.

1

H746610

RING, SNAP

Snap Ring, 40+4 only

1шт.

2

H150185

DRIVE SPROCKET

Sprocket, 30+4 only

1шт.

2

H216846

DRIVE SPROCKET

Sprocket, 40+4 only

1шт.

3

H150151

WASHER

Thrust Washer, 30+4 only

1шт.

3

H145219

WASHER

Thrust Washer, 40+4 only

1шт.

4

H150276

BOOM

Crank Cast

1шт.

5

H746677

RING, SNAP

Snap Ring

1шт.

6

H150375

WASHER

Thrust Washer

1шт.

7

H569079

MOUNTING PARTS

Boom Mtg. Cast. Asm., 40+4 only

1шт.

7

H541052

MOUNTING PARTS

Boom Mtg. Cast. Asm., 30+4 only

1шт.

8

H749283

SEAL

Grease Seal, 30+4 only

1шт.

8

H754804

OIL SEAL

Grease Seal, 40+4 only

1шт.

9

H748228

BEARING, NEEDLE

Bearing, 30+4 only

1шт.

9

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

Bearing, 40+4 only

1шт.

10

H140319

HOUSING

Boom Mtg. Cast., 30+4 only

1шт.

On the splined end there is a brass spacer that goes between the splines and Ref. 4. It is P/N H438317 per the 360 book.

1шт.

10

H216812

BOOM

Mtg. Cast., 40+4 only

1шт.

On the splined end there is a brass spacer that goes between the splines and Ref. 4. It is P/N H438317 per the 360 book.

1шт.

11

H150169

WASHER

Thrust Washer, 30+4 only

2шт.

11

H216887

WASHER

Thrust Washer, 40+4 only

2шт.

12

H748087

NEEDLE BEARING,Needle, 63.78mm ID x 76.2mm OD x 38.1mm W

Bearing, 30+4 only

2шт.

12

H748145

BEARING

40+4 only

2шт.

13

H749242

OIL SEAL

Grease Seal, 30+4 only

2шт.

13

H754812

SEAL

Grease Seal, 40+4 only

2шт.

14

H70045

KEY

(3/8" sq. x 1-3/4"), 30+4 only

1шт.

14

H219287

KEY

(1/2" sq. x 1 3/4"), 40+4 only

1шт.

15

H541011

SHAFT

Drive Shaft Asm, 30+4 only

1шт.

15

H568394

SHAFT

Drive Shaft Asm., 40+4 only

1шт.

16

H114066

SLEEVE CYLINDER

Sleeve, 30+4 only

1шт.

16

H216820

SLEEVE CYLINDER

Sleeve, 40+4 only

1шт.

17

H115816

KEY

(1/2" sq. x 3 1/4")

1шт.

18

H746750

LOCK NUT

Nut (3/8" NF-Lock)

8шт.

19

H148569

DRIVE SPROCKET

(Set Only)

1шт.

20

H114025

HUB CAP

Hub-Sprocket, 30+4 only

1шт.

20

H216739

HUB CAP

Hub-Sprocket, 40+4 only

1шт.

21

H723288

BOLT

HHCS (3/8" x 2 1/4" NF-HT)

8шт.

22

H746602

RING, SNAP

Snap Ring, 30+4 only

1шт.

22

H746628

RING

Snap Ring, 40+4 only

1шт.

23

H551523

AUGER

Dirt Auger, 30+4 only

1шт.

23

H591677

AUGER

Dirt Auger, 40+4 only

1шт.

24

H170241

HARDWARE

U Bolt, 30+4 only

1шт.

24

H226282

U-BOLT

U Bolt, 40+4 only

1шт.

25

230-42110

LOCK NUT,5/8"-11, GA

Nut (5/8" NC-Lock)

2шт.

30

H531087

BOOM

End Asm

1шт.

33

H115204

CASTING

Boom End Cast.

1шт.

34

H114728

PLUG

Bleed Plug

1шт.

35

H115246

SHAFT

Square Shaft

1шт.

36

H117598

WASHER

-Boom End

2шт.

37

H742866

PIN

Roll Pin (3/8" x 2 1/2")

2шт.

38

H745398

FITTING

Grease Fitting

1шт.

39

H748871

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

O Ring

1шт.

40

H749341

WASHER

Backup Washer

1шт.

41

H115188

PLUNGER

Rod

1шт.

42

H115196

BEARING

Plate

1шт.

43

H742395

ROLL PIN

(1/4" x 1 1/2")

1шт.

45

H90787

BOLT

Special Bolt

2шт.

46

H115238

VALVE SPRING

Spring Retainer-Outer

1шт.

47

H101998

VALVE SPRING

Spring

2шт.

48

H119172

CLEVIS COUPLING

Clevis Pin

1шт.

49

H119164

VALVE SPRING

Spring Retainer-Inner

1шт.

50

H737494

LOCK NUT

Nut (5/8" NC-Lock)

2шт.

51

H531384

ROLLER

Outer Roller Asm.

1шт.

52

H115261

ROLLER

Outer Roller

1шт.

53

H747444

ROLLER BEARING,1.5" ID x 100 mm OD x 1.3125"

Bearing

1шт.

54

H114934

DRAG LINK

Link-Boom End Retainer

2шт.

55

H738013

LOCK NUT

Nut (3/8" NC-Lock)

1шт.

56

230-4215

NUT,5/16"-18, GA

Nut (5/16" NC-Lock)

1шт.

57

H709477

BOLT

HHCS (5/16" x 1 1/2" NC)

1шт.

58

H709873

BOLT

HHCS (3/8" x 1 1/2" NC )

1шт.

60

H560888

BOOM

& Spkt Asm.-3 ft. Depth

1шт.

61

H560896

SPARE PART

Boom &Spkt Asm.-4 ft. Depth

1шт.

62

H567800

BOOM

Spkt. Asm.-5 ft. Depth

1шт.

63

H560581

BOOM

Weld Asm.-3 ft. Depth

1шт.

64

H560599

BOOM

Weld Asm.-4 ft. Depth

1шт.

65

H676644

Boom Weld Asm.-5 ft. Depth

1шт.

66

H531251

PINION

Sprocket Asm.

1шт.

Two Sprocket Assemblies Required for 3 ft. Boom Depth Three Sprocket Assemblies Required for 4 ft. Boom Depth Four Sprocket Assemblies Required for 5 ft. Boom Depth

1шт.

67

H115683

DRIVE SPROCKET

Sprocket

1шт.

68

H747139

BALL BEARING

Bearing

1шт.

69

H33837

RING

Retainer Ring

1шт.

70

230-42110

LOCK NUT,5/8"-11, GA

Nut (5/8" NC-Lock)

1шт.

71

H738658

WASHER

Flatwasher (5/8: Wrought)

1шт.

72

H117606

WASHER

Special Washer

1шт.

72a

H117598

WASHER

Square Hole

1шт.

73

H251033

BOOM

Shaft-Idler Sprocket

1шт.

74

H711440

BOLT

HHCS (5/8" x 3 1/4" NC)

1шт.

75

H720649

BOLT

HHCS (3/4" x 1 1/2" NC-HT)

2шт.

76

H739268

WASHER

(3/4"-Lock)

2шт.

77

H738062

NUT

(3/4" NC- Lock)

2шт.

78

H720821

BOLT

HHCS (3/4" x 6" NC-HT)

2шт.

79

H752998

CHAIN (AG)

Drive Chain (#80-90 Pitches)

1шт.

80

H748335

LINK

Connector Link (#80)

1шт.

81

H747436

DRIVE SPROCKET

Sprocket-Idler

1шт.

82

H142679

SPACER

-Idler

1шт.

83

H711770

BOLT

HHCS (3/4" x 2 3/4" NC)

1шт.

84

H738062

NUT

(3/4" NC-Lock)

1шт.

85

H738518

WASHER

(3/4" Flat)

1шт.

86

H216903

DRIVE SPROCKET

-P.T.O.

1шт.
