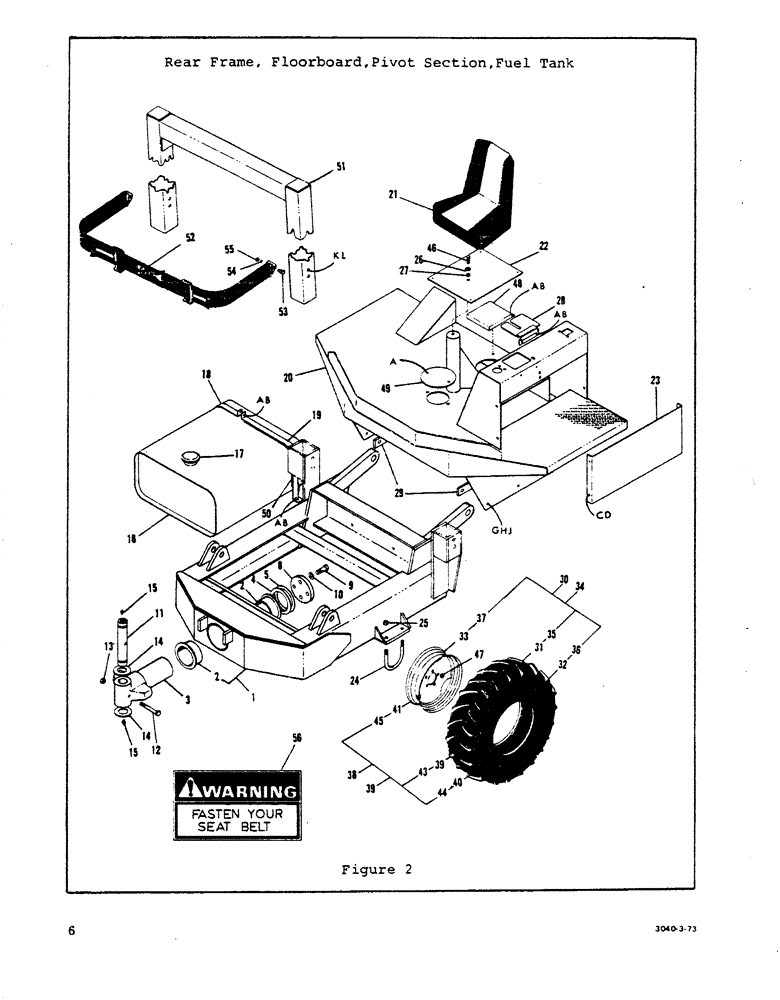

Запчасти Case P42 (06) - REAR FRAME, FLOORBOARD, PIVOT SECTION, FUEL TANK

1

H583922

Rear Frame Asm

1шт.

2

H150193

BUSHING

2шт.

3

H243279

PIVOT ASSY.

Pivot Shaft

1шт.

4

H169748

SHIM,.062" Thk

1шт.

5

H169755

SHIM,.030" Thk

1шт.

8

H264127

PLATE ASSY.

Plate - Keeper

1шт.

9

H255885

BOLT

- Special (5/8-18 x 29/64")

4шт.

10

H738500

WASHER

Flat Washer (5/8")

4шт.

11

H182634

PIVOT PIN

1шт.

12

H710723

X

HHCS (1/2" x 3 1/2")

1шт.

13

H738039

LOCK NUT

Nut (1/2" NC - Lock)

1шт.

14

H263913

WASHER

Thrust Washer

2шт.

14

H173385

BEARING WASHER

Shim (.188)

1шт.

14

H164962

BEARING WASHER

Shim (.25)

1шт.

15

H745257

FITTING

Grease Fitting

2шт.

16

H586834

RESERVOIR

Fuel Tank (30+4 - Wisc & Hatz)

1шт.

16

H587790

Fuel Tank (40+4 - Wisc & Hatz)

1шт.

17

H151274

CYLINDER END CAP

Tank Cap

1шт.

18

H255778

STRAP

Tank Strap - Short

2шт.

19

H256404

Tank Strap - Long

2шт.

20

H587550

Floor Board Asm

1шт.

21

H594556

SEAT

Asm

1шт.

22

H594739

MOUNTING PARTS

Seat Asm

1шт.

23

H264580

PANEL

Cover Panel

1шт.

24

H184135

HARDWARE

U-Bolt - Axle Retainer

4шт.

25

230-42110

LOCK NUT,5/8"-11, GA

Nut (5/8" NC - Lock)

8шт.

26

H738617

WASHER

(5/8" Wrought)

1шт.

27

H270538

SPACER

Seat Spacer

1шт.

28

H562546

LATCH

Safety Lock Starter Plate

1шт.

29

H265272

Floor Board Spacer

2шт.

30

H592725

Hi-Flotation Tire & Wheel - 12"

4шт.

31

H170654

TYRE/TIRE

Tire - 26 x 12 x 12

1шт.

32

H173237

TUBE

- 12 x 12

1шт.

33

H266411

RIM

Wheel - 10.5 x 12 - 5 Bolt

1шт.

34

H592733

Hi-Flotation Transport Tire & Wheel

4шт.

Used 30+4 Only

1шт.

35

H171967

WHEEL

Tire - 26 x 12 x 12

1шт.

36

H173237

TUBE

- 12 x 12

1шт.

37

H266411

RIM

Wheel - 10.5 x 12 - 5 Bolt

1шт.

38

H588681

TYRE/TIRE

Tire & Wheel -Super Terra Grip

4шт.

Used 40+4 Only

1шт.

39

H256800

TYRE/TIRE

Tire - 29 x 12 x 15 - 4 Ply

1шт.

40

H256818

TUBE

- 29 x 12 x 15

1шт.

41

H588483

WHEEL (STEERING)

Wheel - 15 x 12 - 5 Bolt

1шт.

42

H588699

Tire & Wheel - Xtra Traction

4шт.

Used 40+4 Only

1шт.

43

H256834

RUBBER

Tire - 29 x 12 x 15 - 4 Ply

1шт.

44

H256818

TUBE

- 29 x 12 x 15

1шт.

45

H588483

WHEEL (STEERING)

Wheel - 15 x 12 - 5 Bolt

1шт.

46

H718783

HHCS (3/8" x 1 1/4" NC - Grade 8

1шт.

47

H98467

LUG

Wheel Nut (1/2" - 20 x 60 degrees)

20шт.

48

H601468

Fuel Cover

1шт.

49

H271700

Cover - Fuel Tank Sender

1шт.

50

H83337

Belting - Fuel Tank Strap

6шт.

51

H598839

ROPS Asm

1шт.

52

H594564

SAFETY BELT ,3.00" W

3.00" W

1шт.

53

H714717

X

HHCS (7/16" x 1 1/4" NF)

2шт.

54

H277566

WASHER

2шт.

55

H736181

Nut (7/16" NF - Lock)

2шт.

56

H270751

DECAL

- Seat Belt

1шт.

a

H709436

BOLT

HHCS (5/16" x 3/4" NC)

1шт.

b

230-4215

NUT,5/16"-18, GA

Nut (5/16" NC - Lock)

1шт.

c

H709113

X

HHCS (1/4" x 3/4" NC )

1шт.

d

H739193

WASHER, LOCK

Washer (1/4" Lock)

1шт.

g

H709865

BOLT

HHCS (3/8" x 1 1/4" NC

1шт.

h

H738468

WASHER

(3/8" Flat)

1шт.

j

H738013

LOCK NUT

Nut (3/8" NC Lock)

1шт.

k

H710764

BOLT

HHCS (1/2" x 4 1/4" NC)

1шт.

l

H738039

LOCK NUT

Nut (1/2" NC)

1шт.
