(50) - P.T.O. BRAKE, SPEC. NUMBERS P42WS21, P42HZ22, P57WS23, P57HZ24 AND UP

Запчасти Case P42 (50) - P.T.O. BRAKE, SPEC. NUMBERS P42WS21, P42HZ22, P57WS23, P57HZ24 AND UP

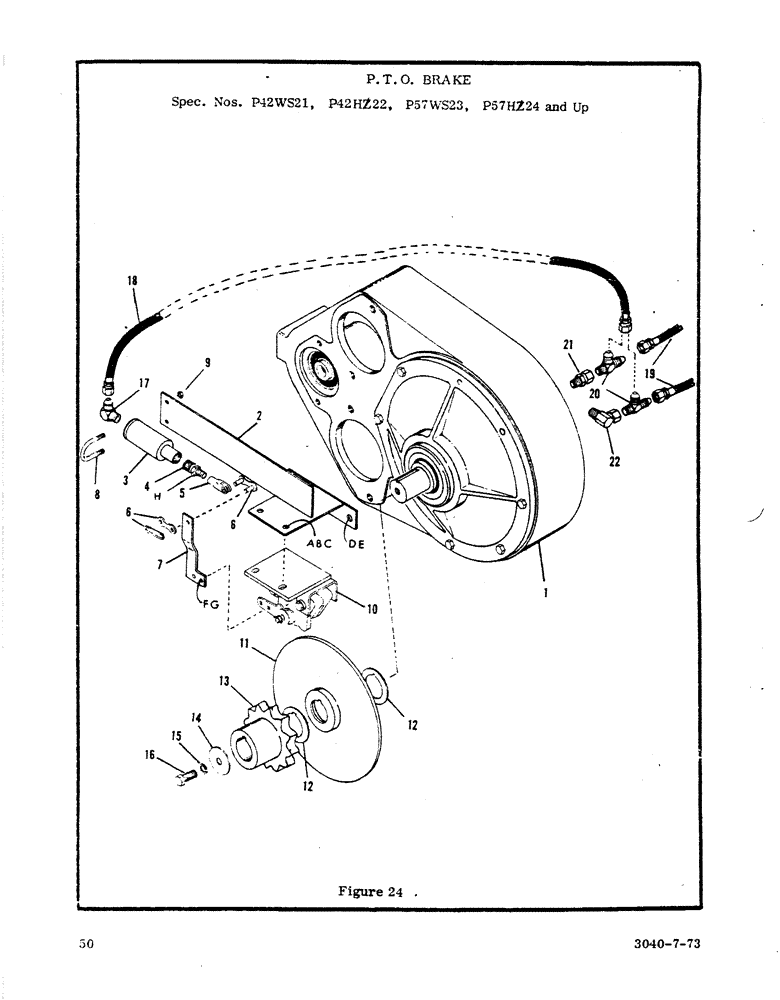

Схема запчастей Case P42 - (50) - P.T.O. BRAKE, SPEC. NUMBERS P42WS21, P42HZ22, P57WS23, P57HZ24 AND UP
1
15
4
8
2
10
5
19
12
7
3
22
16
13
17
20
9
6
14
12
18
21
11
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P.T.O. Asm. (See Figure 20)

1шт.

2

H599332

BRACKET

Brake Mtg. Bracket

1шт.

3

H599373

CYLINDER BLOCK

Brake Cyl.

1шт.

4

H280495

ADAPTER

Cyl. Adapter

1шт.

5

H281444

AXLE PIN

Clevis

1шт.

6

H748319

LINK

Connector (ASA #60)

1шт.

7

H280503

LEVER

Brake Lever

1шт.

8

H280487

BOLT

U Bolt

1шт.

9

H737999

LOCK NUT

Nut (1/4" NC Lock)

2шт.

10

H591818

SPARE PART

Brake Asm.

1шт.

11

H598946

BRAKE LINE

Brake Disc

1шт.

12

H283531

SPACER

Washer

1шт.

13

H216903

DRIVE SPROCKET

1шт.

14

H165720

WASHER

1шт.

15

H739227

WASHER, LOCK

Washer (7/16" Lock)

1шт.

16

H714709

BOLT

HHCS (7/16" x 1" NF)

1шт.

17

H165076

ELBOW

Adapter - 90deg.

1шт.

18

H185744

HOSE

(1/4" x 25" - 9/16" JIC Fe. Sw. - Both Ends)

1шт.

19

H165282

HYDRAULIC HOSE,6.35 mm ID x 533.40 mm, SAE 100R1

6.35 mm ID x 533.40 mm, SAE 100R

1шт.

20

H168666

TEE

1шт.

21

H189407

ADAPTER

- Straight (Used when port is in end of P.T.O. Boss)

1шт.

22

H82818

TUBE NUT

Adapter - 90deg. (Used when port is on the side of P.T.O. Boss)

1шт.

a

H709857

BOLT

HHCS (3/8" x 1" NC)

2шт.

b

H738468

WASHER

(3/8" Flat)

2шт.

c

H738013

LOCK NUT

Nut (3/8" NC - Lock)

2шт.

d

H709865

BOLT

HHCS (3/8" x 1 1/4" NC)

2шт.

e

H739219

LOCK WASHER

Washer (3/8" Lock)

2шт.

f

H709113

X

HHCS (1/4" x 3/4" NC)

2шт.

g

H737999

LOCK NUT

Nut (1/4" NC - Lock)

2шт.

h

H735928

NUT

(5/16" NF)

1шт.
