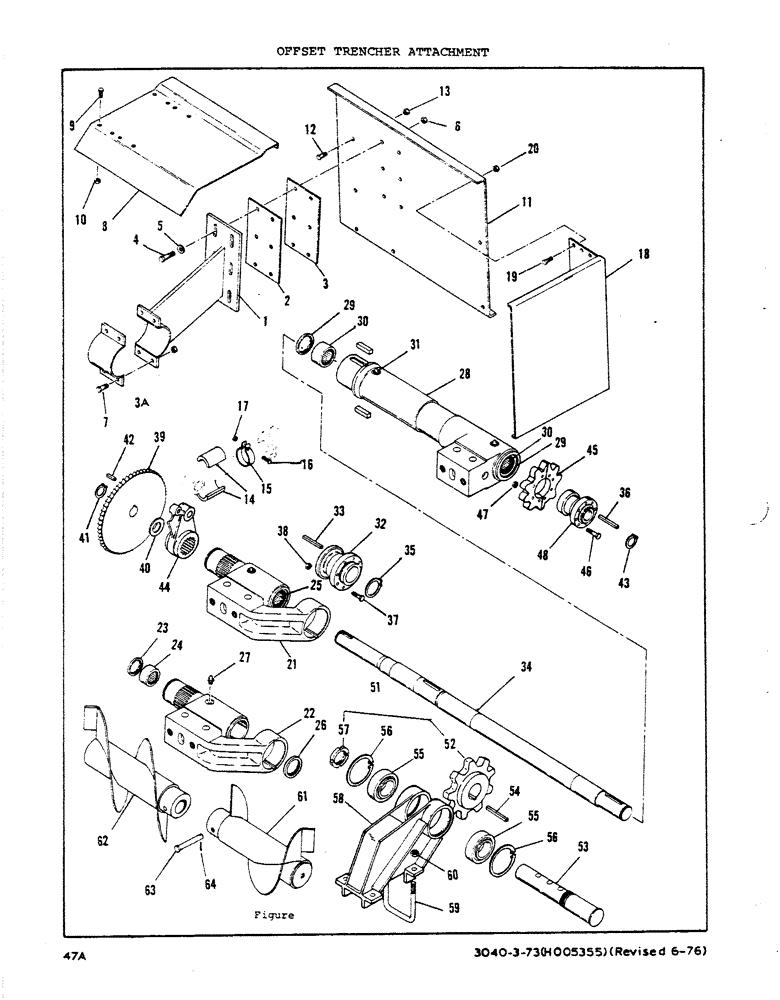

Запчасти Case P42 (47A) - OFFSET TRENCHER ATTACHMENT

1

H615245

Support Bracket

1шт.

2

H313908

SHIM,.134" Thk

Support Bracket .134" Thk

1шт.

3

H313916

SHIM,.060" Thk

Support Bracket .060" Thk

1шт.

3a

H615252

CAP

- Support Bracket

1шт.

4

H710657

BOLT

HHCS (1/2 x 1 3/4 NC)

6шт.

5

H738484

WASHER

(1/2 Flat)

6шт.

6

H738039

LOCK NUT

Nut (1/2 NC Hex Lock)

10шт.

7

H710632

BOLT

HHCS (1/2 x 1 1/4 NC)

4шт.

8

H313866

Extension - Dirt Deflector

1шт.

9

H709436

BOLT

HHCS (5/16 x 3/4 NC)

4шт.

10

230-4215

NUT,5/16"-18, GA

Nut (5/16 NC Hex Lock)

4шт.

11

H315960

SHIELD

Extension - Dirt Deflector

1шт.

12

H709857

BOLT

HHCS (3/8 x 1 NC)

7шт.

13

H738013

LOCK NUT

Nut (3/8 NC Hex Lock)

7шт.

14

H319095

SPACER

- Boom Cylinder

2шт.

15

H321117

CLAMP

- Cylinder Stop

1шт.

16

H709451

BOLT (SPREADER)

HHCS (5/16 x 1 NC)

1шт.

17

230-4215

NUT,5/16"-18, GA

Nut (5/16 NC Hex Lock)

1шт.

18

H317073

REAR COVER

End Cover - Dirt Shield

1шт.

19

H709436

BOLT

HHCS (5/16 x 3/4 NC)

3шт.

20

230-4215

NUT,5/16"-18, GA

Nut (5/16 NC Hex Lock)

3шт.

21

H617530

PIVOT ASSY.

Boom Pivot Asm

1шт.

22

H313577

Boom Pivot

1шт.

23

H754804

OIL SEAL

Grease Seal

1шт.

24

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

Bearing

1шт.

25

H757534

BEARING

2шт.

26

H757526

SEAL

Grease Seal

1шт.

27

H745299

FITTING

Grease Fitting

1шт.

28

H617548

Boom Pivot Extension

1шт.

29

H757526

SEAL

Grease Seal

2шт.

30

H757534

BEARING

3шт.

31

H745299

FITTING

Grease Fitting

2шт.

32

H313536

HUB

1шт.

33

H315861

Key (1/2 sq x 2 1/8)

2шт.

34

H313585

DRIVE SHAFT

Shaft - Digging Chain Drive

1шт.

35

H746636

RING, SNAP

Snap Ring

1шт.

36

H115816

KEY

(1/2 Sq x 3 1/4)

1шт.

37

H723288

BOLT

HHCS (3/8 x 2 1/4 NF - Grade 8)

8шт.

38

H746750

LOCK NUT

Nut (3/8 NF Hex Lock)

8шт.

39

H216846

DRIVE SPROCKET

Sprocket

1шт.

40

H145219

WASHER

Thrust Washer

1шт.

These parts are front of sprocket kit H926196 for 30+4 only. Used when kit is field installed.

1шт.

41

H746610

RING, SNAP

Snap Ring

1шт.

These parts are front of sprocket kit H926196 for 30+4 only. Used when kit is field installed.

1шт.

42

H219287

KEY

(1/2 Sq x 1 3/4)

1шт.

These parts are front of sprocket kit H926196 for 30+4 only. Used when kit is field installed.

1шт.

43

H746628

RING

Snap Ring

1шт.

These parts are front of sprocket kit H926196 for 30+4 only. Used when kit is field installed.

1шт.

44

H150276

BOOM

Crank Casting

1шт.

45

H148569

DRIVE SPROCKET

Sprocket (Sit Only)

1шт.

46

H723288

BOLT

HHCS (3/8 x 2 1/2 NF - Grade 8)

8шт.

47

H746750

LOCK NUT

Nut (3/8 NF Hex Lock)

8шт.

48

H114025

HUB CAP

Hub - Sprocket (30+4 Only)

1шт.

48

H216739

HUB CAP

Hub - Sprocket (40+4O Only)

1шт.

51

H617555

Auger Mounting Casting & Shaft Asm

1шт.

52

H99135

DRIVE SPROCKET

Sprocket

1шт.

53

H102756

SHAFT

- Auger

1шт.

54

H99150

KEY

(1/2 Sq x 2 3/8)

1шт.

55

H747394

BEARING,55.6mm ID x 100mm OD x 33.4mm W

2шт.

56

H746438

SNAP RING

2шт.

57

H748715

NUT

1шт.

58

H616367

Auger Bracket

1шт.

59

H317214

U-BOLT

U Bolt

2шт.

60

230-42110

LOCK NUT,5/8"-11, GA

Nut (5/8 NC Hex Lock)

4шт.

61

H616276

AUGER

- L/H

1шт.

62

H552661

AUGER

- R/H

1шт.

63

H99200

AXLE PIN

Pin - Auger Retainer

1шт.

64

H740506

KEY

Pin - Cotter (1/4 x 1 1/4)

1шт.
