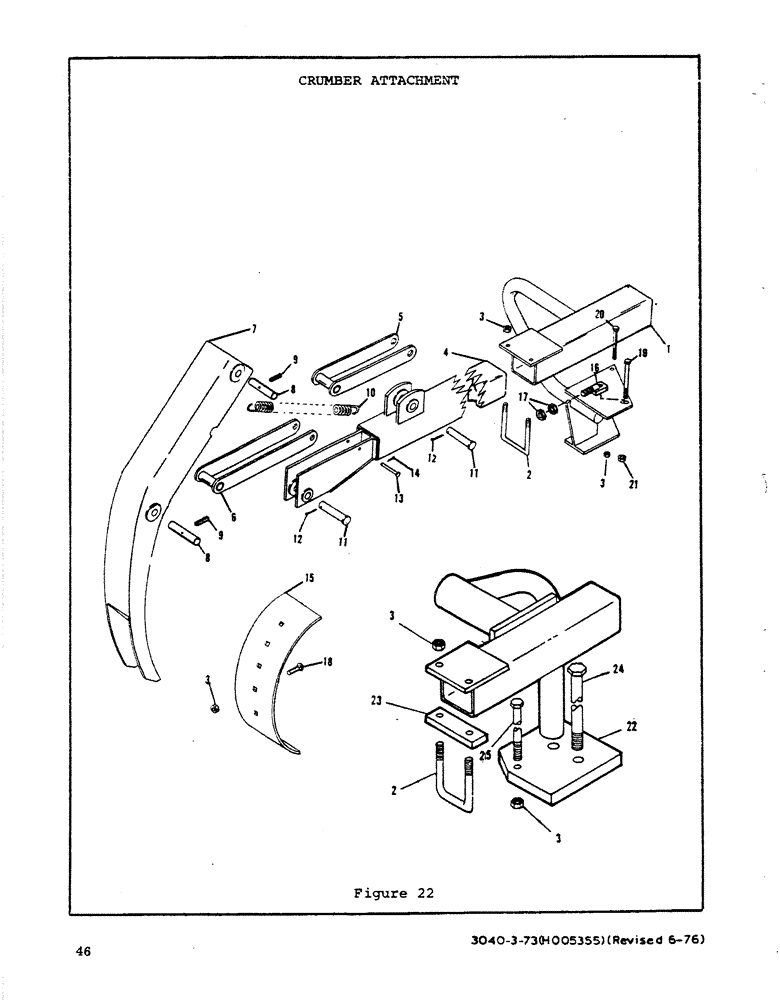

Запчасти Case P42 (46) - CRUMBER ATTACHMENT

1

H542100

ARM

Crumber Attaching Bracket

1шт.

2

H54312

BOLT

U Bolt

1шт.

3

H738039

LOCK NUT

Nut (1/2" NC Lock)

5шт.

4

H542894

BOOM

Outer Boom Asm - 3 Ft. Boom

1шт.

4

H542902

BOOM

Outer Boom Asm - 4 Ft. Boom

1шт.

4

H538553

BOOM

Outer Boom Asm - 5 Ft. Boom

1шт.

5

H536664

DRAG LINK

Short Link

1шт.

6

H532440

DRAG LINK

Long Link

1шт.

7

H536656

BRACKET

Crumber Blade Bracket

1шт.

8

H118109

AXLE PIN,19.05mm OD x 92.08mm L

Pin - Headless

2шт.

9

H742023

PIN, ROLL

Roll Pin (3/16" x 1 3/8")

2шт.

10

H128280

VALVE SPRING

Spring

1шт.

11

H54320

AXLE PIN,19.05mm OD x 79.38mm L

Clevis Pin (3/4" x 2 7/8")

2шт.

12

H740522

HARDWARE

Cotter Pin (1/4" x 1 1/2")

2шт.

13

H54395

AXLE PIN,9.47mm OD x 60.33mm L

Clevis Pin (3/8 x 2 1/4")

2шт.

14

H740118

X

Cotter Pin (5/32" x 1")

1шт.

15

H127480

BLADE

5" Crumber Blade - 6" Width Trench

1шт.

15

H60087

BLADE

7" Crumber Blade - 8" Width Trench

1шт.

15

H60103

BLADE

9" Crumber Blade - 10" Width Trench

1шт.

16

H545608

BOLT

Adjusting Bolt Asm

1шт.

17

H739219

LOCK WASHER

Nut (3/8" NC)

2шт.

18

H728477

BOLT

(1/2" x 1 1/2" Carr.)

2шт.

19

H711598

BOLT

HHCS (5/8" x 7" NC)

1шт.

20

H710863

BOLT

HHCS (1/2" x 7" NC)

1шт.

21

230-42110

LOCK NUT,5/8"-11, GA

Nut (5/8" NC Lock)

1шт.

22

H617621

ARM

Crumber Arm

1шт.

Used With Offset Trencher Attachment.

1шт.

23

H309450

SPACER

1шт.

Used With Offset Trencher Attachment.

1шт.

24

H720862

BOLT

HHCS (3/4" x 7" NC)

2шт.

Used With Offset Trencher Attachment.

1шт.

25

H710905

HHCS (1/2" x 8" NC)

1шт.

Used With Offset Trencher Attachment.

1шт.
