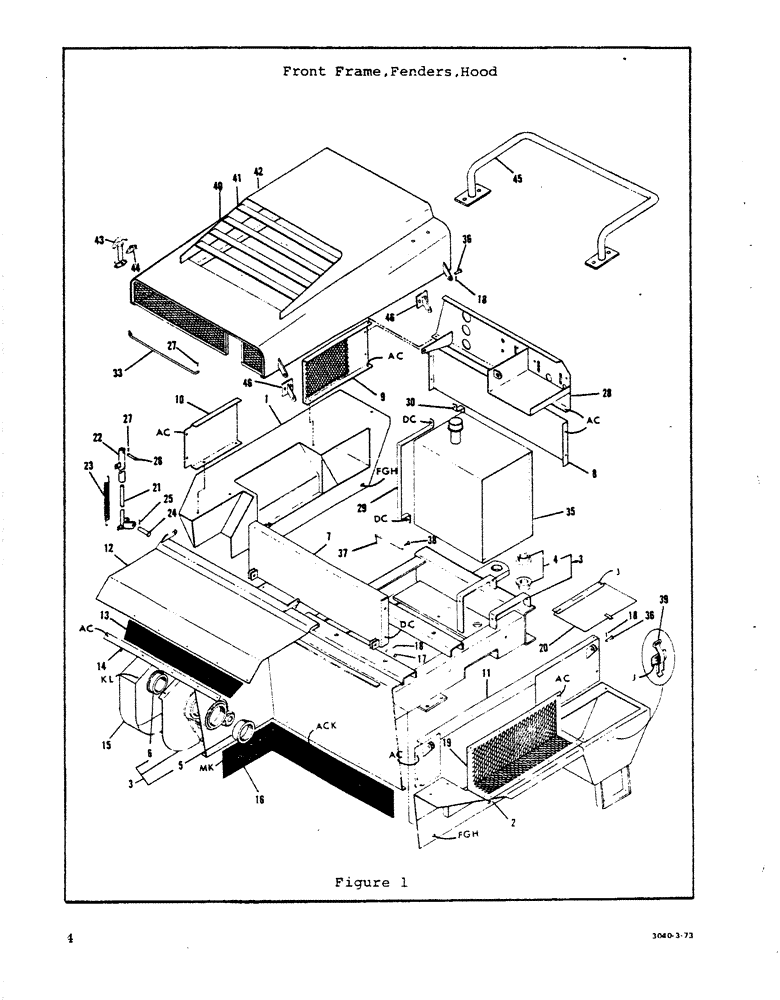

Запчасти Case P42 (04) - FRONT FRAME, FENDERS, HOOD

1

H591016

Fender - Right Front

1шт.

2

H590273

Fender - Left Front

1шт.

3

H587337

Front Frame Asm

1шт.

4

H159574

BUSHING

1шт.

5

H150193

BUSHING

2шт.

6

H150201

BUSHING

1шт.

7

H587741

Hood Riser

1шт.

8

H264119

Back Panel

1шт.

9

H591644

Side Panel - Rear

1шт.

10

H263194

Side Panel - Front

1шт.

11

H591057

Side Panel - Left

1шт.

12

H592683

DEFLECTOR

Dirt Deflector

1шт.

13

H104422

FLAP

Dirt Flap

1шт.

14

H104414

FLAP

Plate

1шт.

15

H541086

GUARD ASSY.

Chain Guard

1шт.

16

H170571

MUDFLAP

Dirt Flap

1шт.

17

H25957

CLEVIS COUPLING

Pin - Dirt Deflector Hinge (Replaces H92957)

2шт.

18

H740092

X

Cotter Pin (5/32" x 3/4")

4шт.

19

H591727

SCREEN

Inlet Screen

1шт.

20

H591735

DOOR ASSY.

Cover Door

1шт.

21

H592543

ROD ASSY.

Dirt Deflector Lift Tube

1шт.

22

H541847

TUBE

Guide Tube

1шт.

23

H32946

VALVE SPRING

Spring - Hold-Down

1шт.

24

CASH32920

LARGE PIN

Pin (5/8" x 2 1/2")

1шт.

25

H739946

KEY

Cotter Pin (1/8" x 1")

1шт.

26

H32284

AXLE PIN

Pin (3/8" x 1 3/4")

1шт.

27

H739920

SPARE PART

Cotter Pin (18" x 3/4")

2шт.

28

H587634

Instrument Panel

1шт.

29

H272252

Oil Reservoir Strap

2шт.

30

H272245

STRAP

Oil Reservoir Strap

2шт.

33

H522284

SUPPORT

Hood Support

1шт.

35

H594911

Oil Reservoir

1шт.

Used with dipstick/cap, P/N H271841

1шт.

36

H92015

AXLE PIN

Pin (3/8" x 1 1/4")

2шт.

37

H197111

INDICATOR

Line Guide Indicator

1шт.

38

H65847

THUMB SCREW,5/16" - 18 x 3/4"

Thumb Screw

1шт.

39

H196758

LATCH ASSY.

Cover Clamp

1шт.

40

H587758

Hood - 30+4 W/Wisconsin Engine (Up To Spec #P42WS09)

1шт.

40

H597476

HOOD

- 30+4 With Wisconsin Engine (Spec. #P42WS09 & Up)

1шт.

41

H595009

Hood - 30+4 With Hatz Engine (Up To Spec. #P42HZ10)

1шт.

41

H597484

Hood - 30+4 With Hatz Engine (Spec. #P42HZ10 & Up)

1шт.

42

H587758

Hood - 40+4 With Wisconsin Engine (Up To Spec. #P57WS09 & Up)

1шт.

42

H597476

HOOD

- 40+4 With Wisconsin Engine (Spec. #P57WS09 & Up)

1шт.

43

H242339

LATCH ASSY.

Hood Latch

2шт.

44

H242321

LATCH ASSY.

Hood Catch

2шт.

45

H595959

BAR

Hand Bar

1шт.

46

H597427

BRACKET

- Hood Hinge

2шт.

a

H709436

BOLT

HHCS (5/16" x 3/4")

1шт.

c

230-4215

NUT,5/16"-18, GA

Nut (5/16" NC - Lock)

1шт.

d

H709451

BOLT (SPREADER)

HHCS (5/16" x 1" NC)

1шт.

e

H709493

BOLT

HHCS (5/16" x 2" NC)

1шт.

f

H709857

BOLT

HHCS (3/8" x 1" NC)

1шт.

g

H738468

WASHER

(3/8" Flat)

1шт.

h

H738013

LOCK NUT

Nut (3/8" NC - Lock)

1шт.

j

H750265

WASHER

Rivet (3/16" x 1/2" Pop)

1шт.

k

H738450

WASHER

(5/16" Flat)

1шт.

l

H749499

SCREW

Cap Screw (5/16" x 3/4" Self Tapping)

1шт.

m

H749507

SCREW

Cap Screw (5/16" x 1" Self Tapping)

1шт.
