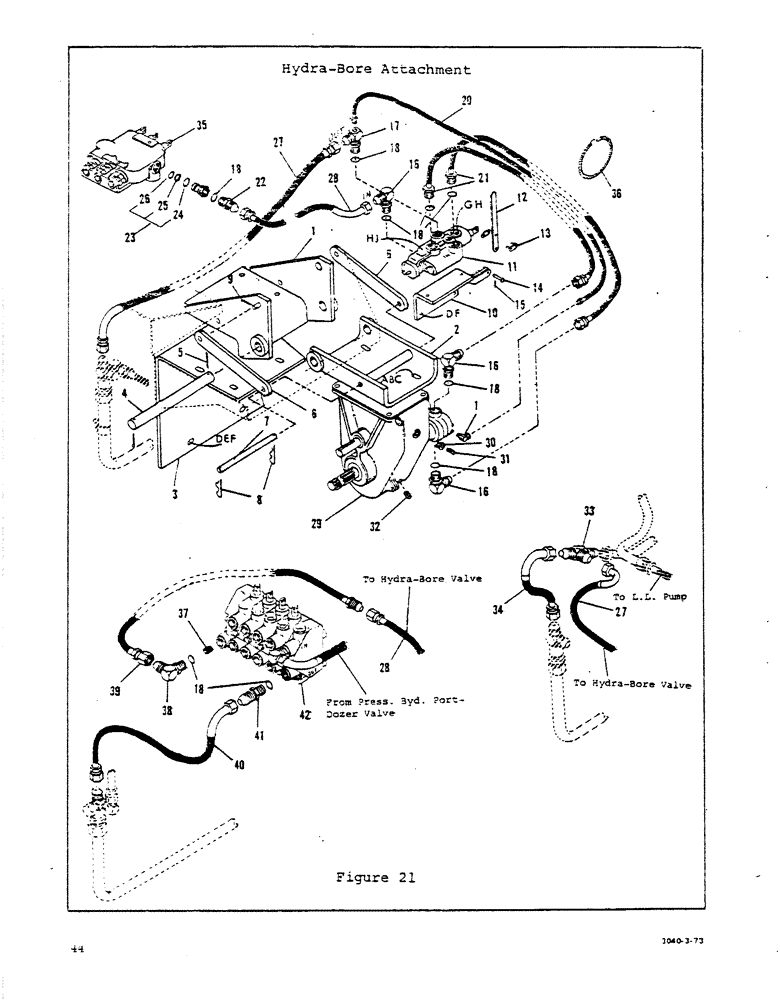

Запчасти Case P42 (44) - HYDRA-BORE ATTACHMENT

1

H553370

BRACKET

Mounting Bracket

1шт.

2

H553388

CHANNEL

Mounting Channel

1шт.

3

H268326

ANGLE

Stiffener Shaft

1шт.

4

H175448

SHAFT

Pivot Shaft

1шт.

5

H740548

PIN

Cotter Pin (1/4" x 1 3/4")

2шт.

6

H175430

LINK

2шт.

7

H175414

PIN

Lock Pin

1шт.

8

H32292

PIN

Hair Pin

2шт.

9

H739946

KEY

Cotter Pin (1/8" x 1")

3шт.

10

H519132

BRACKET

Valve Mounting Bracket

1шт.

11

H544718

LOCK VALVE

Control Valve Asm.

1шт.

12

H71415

LEVER

-Control Valve

1шт.

13

H748293

LINK

Connector Link-Control Valve

1шт.

14

H35279

AXLE PIN,4.72mm OD x 23.76mm L

Pin (3/16" x 31/32")

1шт.

15

H739623

PIN

Cotter Pin (1/16" x 1/2")

1шт.

16

H31674

ADAPTER

- 90deg.

3шт.

17

H211557

ADAPTER

- 90deg. (Special)

1шт.

18

H745174

O-RING

7шт.

19

H71662

FITTING

Adapter - 90deg.

1шт.

20

H71407

HOSE,0.25" ID x 39.00"

1шт.

21

H109470

HOSE,12.70 mm ID x 863.60 mm, SAE 100R1

2шт.

22

H191742

ADAPTER

- Straight

1шт.

23

H47530

SLEEVE

Pressure Beyond Adapter

1шт.

24

H743351

O-RING

1шт.

25

H88997

BACK-UP RING

Backup Washer

1шт.

26

H744656

O-RING

1шт.

27

H268599

HOSE

(3/4" x 56" - 7/8" JIC Fe. Sw. - 3/4" x 90deg. Bent Tube)

1шт.

28

H248641

HOSE

(1/2" x 41" - 7/8" JIC Fe. Sw. - 5/8" x 90deg. Bent Tube)

1шт.

29

H511105

GEARBOX ASSY

Gear Case

1шт.

30

H749549

PLUG

Bushing (3/8" x 1/8" - Pipe)

1шт.

31

H58826

BREATHER

Air Breather

1шт.

32

H749598

PLUG

(1/8" sq. hd. Pipe)

1шт.

33

H228346

TEE

Tube Tee

1шт.

Used When Line-Layer Installed.

1шт.

34

H265496

HOSE

(3/4" x 20" - 7/8" Fm. Sw. - 3/4" Bent Tube)

1шт.

Used When Line-Layer Installed.

1шт.

35

H595041

VALVE

Dozer Valve Asm.

1шт.

36

H52548

SPRING

-Hose Retainer

1шт.

37

H63347

PLUG

Pressure Beyond Plug

1шт.

Used When Backhoe Installed

1шт.

38

H195313

X

Adapter-90deg.

1шт.

Used When Backhoe Installed

1шт.

39

H275818

HOSE

(1/2" x 20" - 1/16" J.I.C. Fe. Sw. - 7/8" J.I.C. Male)

1шт.

Used When Backhoe Installed

1шт.

40

H266247

HOSE

& Tube (3/4" x 22" - 1-1/16" J.I.C. Fe. Sw. - both ends)

1шт.

Used When Backhoe Installed

1шт.

41

H218016

CONNECTOR, ELEC

Adapter-Straight

1шт.

Used When Backhoe Installed

1шт.

42

H588566

VALVE

Backhoe Control Valve Asm.

1шт.

Used When Backhoe Installed

1шт.

a

H710665

BOLT

HHCS (1/2" x 2" NC)

1шт.

b

H738484

WASHER

(1/2" Flat)

1шт.

c

H733089

Nut (1/2" NC Lock)

1шт.

d

H709899

SPARE PART

HHCS (3/8" x 2" NC)

1шт.

e

H738468

WASHER

(3/8" Flat)

1шт.

f

H738013

LOCK NUT

Nut (3/8" Lock)

1шт.

g

H709493

BOLT

HHCS (5/16" x 2" NC)

1шт.

h

230-4215

NUT,5/16"-18, GA

Nut (5/16" NC Lock)

1шт.

j

H709501

BOLT

HHCS (5/16" x 2 1/4" NC)

1шт.
