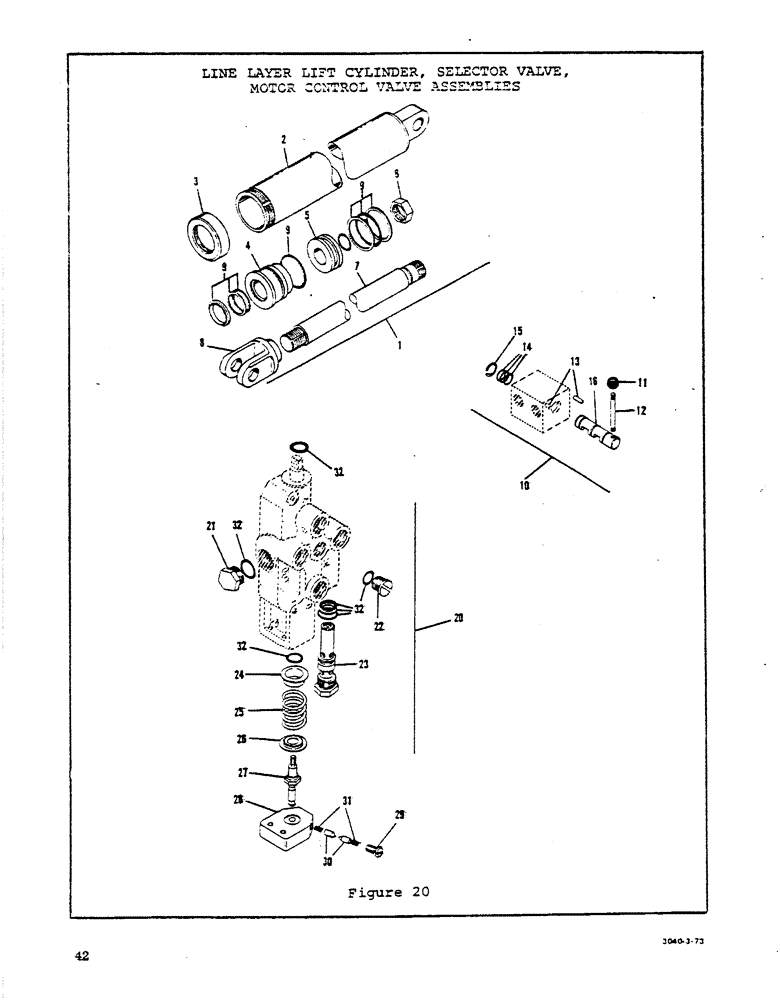

Запчасти Case P42 (42) - LINE-LAYER LIFT CYLINDER, SELECTOR VALVE, MOTOR CONTROL VALVE ASSEMBLIES

1

H588731

CYLINDER

Line Layer Lift Cylinder Asm.

1шт.

2

H591248

Barrel Asm.

1шт.

3

H232116

COLLAR

Gland collar

1шт.

4

H207043

GLAND

1шт.

5

H207035

PISTON ASSY.

Piston

1шт.

6

H223024

LOCK NUT

-Piston Retaining

1шт.

7

H591230

ROD

- Piston

1шт.

8

H223065

CLEVIS COUPLING

Rod - Clevis

1шт.

9

H591222

SEAL ASSY.

Seal Repair Kit

1шт.

10

H588467

VALVE

Selector Valve Asm.

1шт.

11

H268680

KNOB

1шт.

12

H268698

HANDLE

1шт.

13

H756502

Pin (1/4" x 3/4" Drive Lock)

2шт.

14

H743344

WASHER

O-Ring

3шт.

15

H746503

RING, SNAP

Snap Ring

1шт.

16

H268706

Spool

1шт.

20

H550350

Line Layer Motor Control Valve Asm.

1шт.

21

H94219

PLUG

Asm.

1шт.

22

H72223

PLUG

Asm. (Includes O-Ring)

1шт.

23

H135756

VALVE, PRESSURE RELI

Relief Valve Asm. (includes O Rings)

1шт.

24

H138271

WASHER

-Deep

1шт.

25

H52928

VALVE SPRING

Spring

1шт.

26

H31401

WASHER

- Shallow

1шт.

27

H152157

SCREW

Detent - Screw

1шт.

28

H125831

BLOCK

Detent Block

1шт.

29

H105015

PLUG

Detent Plug

1шт.

30

H104992

PAWL

Detent Pawl

2шт.

31

H105049

SPRING

Detent Spring

2шт.

32

H175562

SEAL ASSY.

Seal Repair Kit

1шт.
