Запчасти Case P42 (41A) - HYDRAULIC SYSTEM, LINE LAYER MOTOR, WITHOUT BACKFILL BLADE

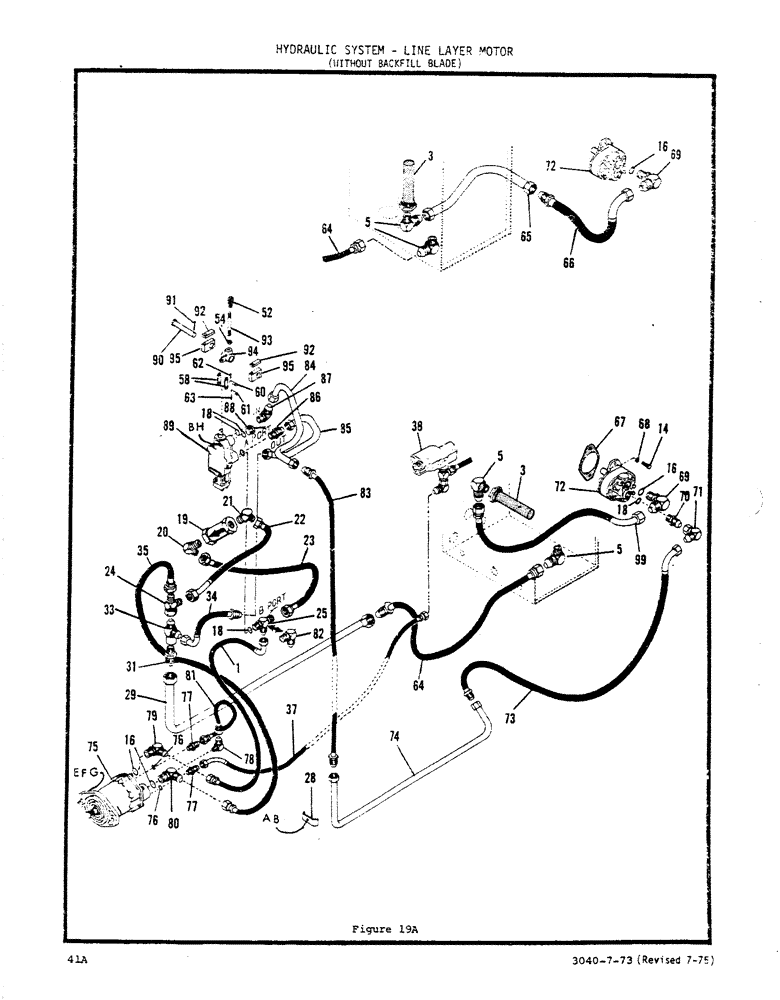

Схема запчастей Case P42 - (41A) - HYDRAULIC SYSTEM, LINE LAYER MOTOR, WITHOUT BACKFILL BLADE
89
52
67
99
71
65
22
76
31
90
34
16
21
5
24
5
93
92
66
29
77
74
69
95
78
64
54
84
25
20
95
88
61
62
35
14
81
3
64
91
38
73
77
72
83
18
63
37
3
28
16
79
37
85
82
69
45
94
80
33
63
76
5
18
1
92
18
19
86
16
68
58
75
23
70

Артикул

Название

Примечание

Количество

1

H265777

HOSE

& Tube (1/2 x 60 - 7/8 JIC Fe Sw - Both Ends)

1шт.

3

H151399

FILTER STRAINER

Suction Filter Asm

1шт.

5

H218461

ELBOW

Adapter - 90deg.

2шт.

14

H710244

X

HHCS (7/16" x 1" NC)

2шт.

16

H745182

O-RING

O Ring

1шт.

18

H745174

O-RING

O Ring

1шт.

19

H607275

VALVE, CHECK

Check Valve

1шт.

20

277165

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

- 90deg.

1шт.

21

H266288

ELBOW

- 45deg.

1шт.

22

H256477

Hose (3/4 x 19 1 1/16 JIC Fe Sw x 45deg. 3/4 OD Bent Tube)

1шт.

23

H195958

HOSE,45.00", SAE 100R1

1шт.

24

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

25

H30718

TEE

1шт.

28

H46888

CLAMP

Tube Clamp

1шт.

29

H592022

TUBE,1" OD

- Return

1шт.

31

H256446

ADAPTER

- Straight

1шт.

33

H265363

TEE

1шт.

34

H265769

HOSE ASSY.

Hose & Tube (3/4" x 20" 1 1/16" JIC Male 1 1/16" JIC Fe Sw)

1шт.

35

H265751

HYDRAULIC HOSE,19.05 mm ID x 1524.00 mm, SAE 100R1A

(1 1/16" JIC Fe Sw - Both Ends) 19.05 mm ID x 1524.00 mm, SAE 100R1A

1шт.

37

H265785

HOSE

& Tube (1/2" x 60" 7/8" JIC Fe Sw - Both Ends)

1шт.

38

H599027

VALVE

Line-Layer Lift Valve Asm

1шт.

52

H182121

KNOB

1шт.

54

H736645

NUT

(3/8" NC - Jam)

1шт.

58

H185066

DRAG LINK

Valve Link

2шт.

60

H174771

CLEVIS PIN

Pin (1/4" x 1")

1шт.

61

H35279

AXLE PIN,4.72mm OD x 23.76mm L

Pin (3/16" x 3/4")

1шт.

62

H739771

HARDWARE

Cotter Pin (3/32" x 3/4")

1шт.

63

H739623

PIN

Cotter Pin (1/16" x 1/2")

1шт.

64

H244707

HOSE ASSY.

Hose (1" x 21" - 1 5/16" JIC Male 1 5/16" JIC Fe. Sw.)

1шт.

65

H590828

TUBE,1" OD

Section

1шт.

Up To Spec. Nos. P42WS19, P42HZ20, P57WS21, P57HZ22.

1шт.

66

H275594

HOSE

& Tube (1" x 18" 1 5/16" JIC Male 1 5/16" JIC Fe. Sw.)

1шт.

Up To Spec. Nos. P42WS19, P42HZ20, P57WS21, P57HZ22.

1шт.

67

H291278

Tube Of Sealer - Replaces Gasket

1шт.

68

H739227

WASHER, LOCK

Washer (7/16" Lock)

2шт.

69

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Adapter - 90deg.

1шт.

70

H218016

CONNECTOR, ELEC

Adapter - Straight

1шт.

71

H275289

FITTING

Adapter - 90deg.

1шт.

72

H588426

PUMP

Hydraulic Pump Asm (See Figure 30)

1шт.

73

H273110

HOSE

& Tube (3/4" x 54" 1 1/16" JIC Male 1 1/16 JIC Fe. Sw.)

1шт.

74

H592097

TUBE,0.75" OD

- Pressure

1шт.

75

H588434

MOTOR

Line-Layer Motor Asm

1шт.

76

H745158

O-RING

O Ring

2шт.

77

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Adapter - Straight

2шт.

78

H169847

ADAPTER

- 90deg.

1шт.

79

H169011

FITTING

Adapter - 90deg.

1шт.

80

H224386

ADAPTER

- 90deg. Special

1шт.

81

H195750

HYDRAULIC HOSE,9.52 mm ID x 355.60 mm, SAE 100R1

9.52 mm ID x 355.60 mm, SAE 100R1

1шт.

82

H31674

ADAPTER

- 90deg.

1шт.

83

H279661

HOSE

and tube, 3/4" x 23" 1-1/16 JIC Fe. Sw. - both ends

1шт.

84

H592485

TUBE,0.75" OD

- Pressure

1шт.

85

H592477

TUBE,0.75" OD

- Return

1шт.

86

H218016

CONNECTOR, ELEC

Adapter - Straight

1шт.

87

H195313

X

Adapter - Straight

1шт.

88

H57661

PLUG

- "A" Port

1шт.

89

H550350

Line-Layer Motor Valve Asm (See Figure 39A)

1шт.

90

H120683

PIN,15.88mm OD x 94.06mm L

(5/8" x 3 1/2")

1шт.

91

H740118

X

Cotter Pin (5/32" x 1")

1шт.

92

H265025

SPACER

2шт.

93

H242701

HANDLE

Valve Lever

1шт.

94

H275255

CRANK LEVER

Lever Casting

1шт.

95

H558403

BLOCK

Bearing Block

2шт.

99

H280677

HOSE

& Tube (1" x 33" - 1 5/16" JIC Fe. Sw. - Both Ends)

1шт.

Spec. Nos. P42WS19, P42HZ20, P57WS21, P57HZ22 And Up

1шт.

a

H709477

BOLT

HHCS (5/16" x 1 1/2" NC)

1шт.

b

230-4215

NUT,5/16"-18, GA

Nut (5/16" NC - Lock)

1шт.

e

H738468

WASHER

(3/8" Flat)

1шт.

f

H709873

BOLT

HHCS (3/8" x 1 1/2" NC)

1шт.

g

H739219

LOCK WASHER

Washer (3/8" Lock)

1шт.

h

H709519

BOLT

HHCS (5/16" x 2 1/2" NC

1шт.

Выбрано товаров: 70
