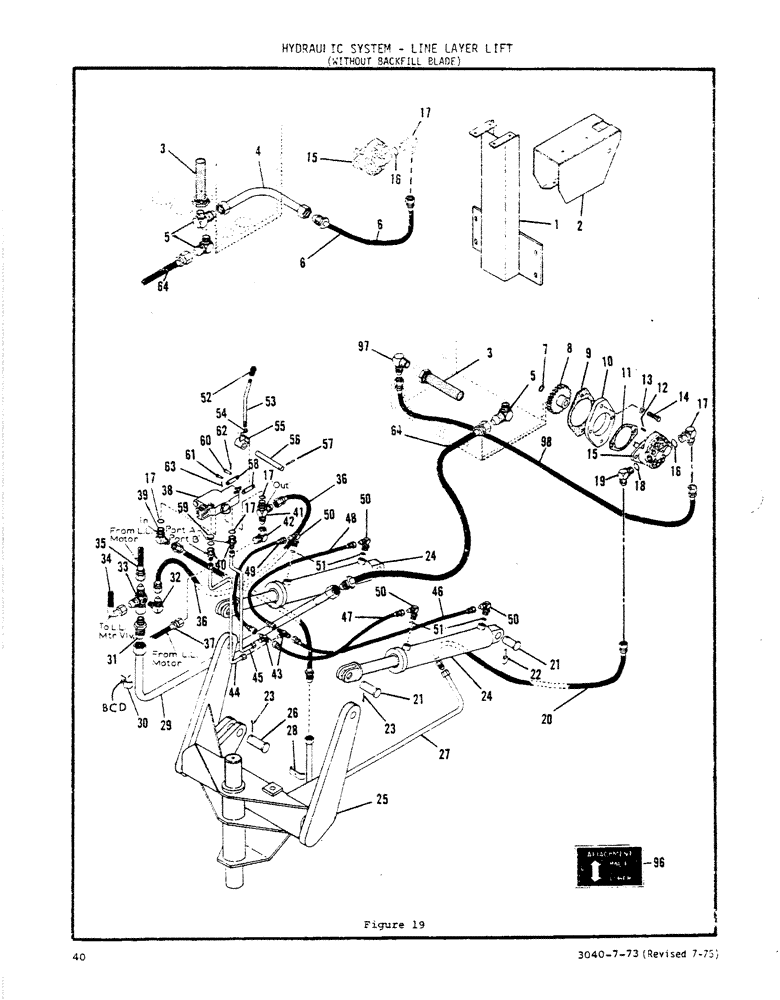

Запчасти Case P42 (40) - HYDRAULIC SYSTEM, LINE LAYER LIFT, WITHOUT BACKFILL BLADE
№
Артикул
Название
Примечание
Количество
1
H597997
PEDESTAL
Valve Pedestal
1шт.
2
H597971
Valve Mtg Bracket
1шт.
3
H151399
FILTER STRAINER
Suction Filter Asm
1шт.
4
H590836
TUBE,1" OD x 5, 8" L
- Suction
1шт.
Up To Spec. Nos. P42WS19, P42HZ20, P57WS21, P57HZ22.
1шт.
5
H218461
ELBOW
Adapter - 90deg.
2шт.
6
H265322
HOSE ASSY.
Hose (3/4" x 25" - 1 1/16" JIC Male - 1 1/16" JIC Fe Sw)
1шт.
Up To Spec. Nos. P42WS19, P42HZ20, P57WS21, P57HZ22.
1шт.
7
H746487
RING, SNAP
Snap Ring
1шт.
8
H254508
GEAR WHEEL
Pump Drive Gear
1шт.
9
H291278
Tube Of Sealer - Replaces Gasket
1шт.
10
H254490
PLATE ASSY.
Adapter Plate
1шт.
11
H291278
Tube Of Sealer - Replaces Gasket
1шт.
12
H233346
KEY
1шт.
13
H57943
SEALING WASHER
Crush Washer
2шт.
14
H710244
X
HHCS (7/16" x 1" NC)
2шт.
15
H587808
PUMP
Hydraulic Pump Asm (See Figure 30)
1шт.
16
H745182
O-RING
O Ring
1шт.
17
H195035
Adapter - 90deg.
1шт.
18
H745174
O-RING
O Ring
1шт.
19
H206938
FITTING
Adapter - 90deg.
1шт.
20
H265314
HOSE
(1/2" x 47" - 7/8" x 47" JIC Male - 7/8" JIC Fe Sw)
1шт.
21
H65011
AXLE PIN,25.3mm OD x 75.41mm L
Pin (1" x 2 5/8")
4шт.
22
H32367
PIN
Klik Pin
2шт.
23
H740548
PIN
Cotter Pin (1/4" x 1 3/4")
4шт.
24
H588731
CYLINDER
Lift Cyl Asm (See Page 31)
2шт.
25
H588756
FRAME
Trunion Frame Asm
1шт.
26
H146118
AXLE PIN
Pin (1 1/4" x 3 1/4")
2шт.
27
H592030
TUBE,0.625" OD
- Pressure
1шт.
28
H46888
CLAMP
Tube - Clamp
1шт.
29
H592022
TUBE,1" OD
- Return
1шт.
30
H247965
CLAMP
Tube - Clamp
2шт.
31
H256446
ADAPTER
- Straight
1шт.
32
H91595
ADAPTER
- 90deg.
33шт.
33
H265363
TEE
1шт.
34
H265769
HOSE ASSY.
Hose & Tube (3/4" x 20" 1 1/16" JIC Male 1 1/16" JIC Fe Sw)
1шт.
35
H265751
HYDRAULIC HOSE,19.05 mm ID x 1524.00 mm, SAE 100R1A
(1 1/16" JIC Fe Sw - Both Ends) 19.05 mm ID x 1524.00 mm, SAE 100R1A
1шт.
36
H175612
HYDRAULIC HOSE,12.70 mm ID x 609.60 mm, SAE 100R1
12.70 mm ID x 609.60 mm, SAE 100R1
1шт.
37
H265785
HOSE
& Tube (1/2" x 60" 7/8" JIC Fe Swv - Both Ends)
1шт.
38
H599027
VALVE
Line-Layer Lift Valve Asm
1шт.
39
218-5137
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
Adapter - 45 deg.
1шт.
40
H45534
ROD, CONNECTING
Adapter - Straight
1шт.
41
H30718
TEE
1шт.
42
H30726
ELBOW
Adapter - 90deg.
1шт.
43
H213041
TEE
2шт.
44
H599084
TUBE,0.375" OD
1шт.
45
H599076
TUBE,0.375" OD
1шт.
46
H218453
HYDRAULIC HOSE,6.35 mm ID x 838.20 mm, SAE 100R1
6.35 mm ID x 838.20 mm, SAE 100R1
1шт.
47
H168658
HYDRAULIC HOSE,6.35 mm ID x 508.00 mm, SAE 100R1
6.35 mm ID x 508.00 mm
1шт.
48
H248989
HYDRAULIC HOSE,6.35 mm ID x 685.40 mm, SAE 100R1
6.35 mm ID x 685.40 mm, SAE 100R1
1шт.
49
H234245
HYDRAULIC HOSE,6.35 mm ID x 406.40 mm, SAE 100R1
6.35 mm ID x 406.40 mm, SAE 100R1
1шт.
50
H169763
FITTING
Adapter - 90deg.
4шт.
51
H745158
O-RING
O Ring
4шт.
52
H182121
KNOB
1шт.
53
H191924
LEVER
Valve Lever
1шт.
54
H736645
NUT
(3/8" NC - Jam)
1шт.
55
H275263
LEVER
Casting
1шт.
56
H278804
PIN
Valve Lever Shaft
1шт.
57
H742007
PIN
Roll Pin (3/16" x 1 1/8")
1шт.
58
H185066
DRAG LINK
Valve Link
2шт.
59
H206235
SCREW
Orifice Plate (.052)
1шт.
60
H174771
CLEVIS PIN
Pin (1/4" x 1")
1шт.
61
H35279
AXLE PIN,4.72mm OD x 23.76mm L
Pin (3/16" x 3/4")
1шт.
62
H739771
HARDWARE
Cotter Pin (3/32" x 3/4")
1шт.
63
H739623
PIN
Cotter Pin (1/16" x 1/2")
1шт.
64
H244707
HOSE ASSY.
Hose (1" x 21" - 1 5/16" JIC Male 1 5/16" JIC Fe Sw)
1шт.
96
H249920
DECAL
- Attachment Control
1шт.
97
218-1046
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF
Adapter - 90deg.
1шт.
Spec. Nos. P42WS19, P42HZ20, P57WS21, P57HZ22 And Up
1шт.
98
H265454
Hose (3/4" x 34" - 1 1/16" JIC Fe Sw - Both Ends)
1шт.
Spec. Nos. P42WS19, P42HZ20, P57WS21, P57HZ22 And Up
1шт.
a
H709477
BOLT
HHCS (5/16" x 1 1/2" NC)
1шт.
b
230-4215
NUT,5/16"-18, GA
Nut (5/16" NC - Lock)
1шт.
c
H709451
BOLT (SPREADER)
HHCS (5/16" x 1" NC)
1шт.
d
H738450
WASHER
(5/16" Flat)
1шт.
Выбрано товаров: 75
