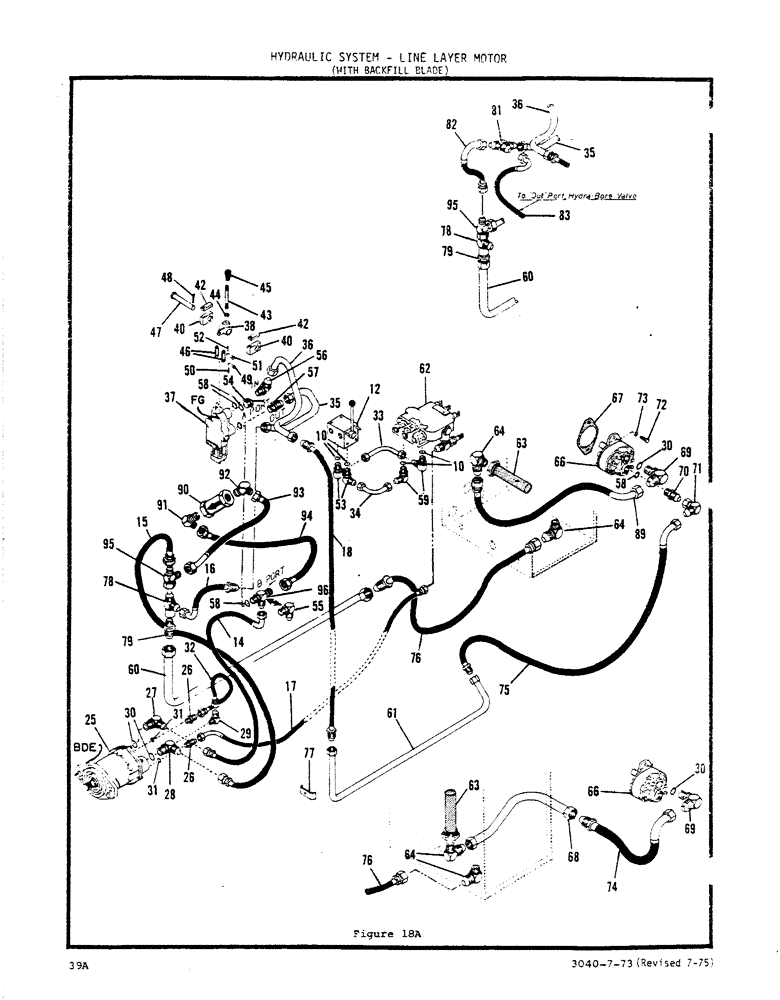

Запчасти Case P42 (39A) - HYDRAULIC SYSTEM, LINE LAYER MOTOR, WITH BACKFILL BLADE

10

H745166

O-RING

O Ring

1шт.

12

H588467

VALVE

Selector Valve Asm - See Figure 42)

1шт.

14

H265777

HOSE

& Tube (1/2" x 60" - 7/8" JIC Fe. Sw. - Both Ends)

1шт.

15

H265751

HYDRAULIC HOSE,19.05 mm ID x 1524.00 mm, SAE 100R1A

(1 1/16 JIC Fe. Sw - Both Ends) 19.05 mm ID x 1524.00 mm, SAE 100R1A

1шт.

16

H265769

HOSE ASSY.

Hose & Tube (3/4" x 20" - 1 1/16" JIC Fe Sw 1 1/16" JIC M)

1шт.

17

H265785

HOSE

& Tube (1/2" x 60" - 7/8" JIC Fe Sw - Both Ends)

1шт.

18

H279661

HOSE

(3/4" x 23" - 1 1/16 JIC Fe. Sw - Both Ends)

1шт.

25

H588434

MOTOR

Line Layer Motor Asm

1шт.

26

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Adapter - Straight

1шт.

27

H169011

FITTING

Adapter - 90deg.

1шт.

28

H224386

ADAPTER

- 90deg. Special

1шт.

29

H169847

ADAPTER

- 90deg. Special

1шт.

30

H745182

O-RING

O Ring

1шт.

31

H745158

O-RING

O Ring

1шт.

32

H195750

HYDRAULIC HOSE,9.52 mm ID x 355.60 mm, SAE 100R1

9.52 mm ID x 355.60 mm, SAE 100R1

1шт.

33

H590802

TUBE,0.5" OD x 2.5, 3.375" L

- "A" Port

1шт.

34

H590810

TUBE,0.5" OD x 2.125, 2.125" L

- "B"

1шт.

35

H592477

TUBE,0.75" OD

- Return

1шт.

36

H592485

TUBE,0.75" OD

- Pressure

1шт.

37

H550350

Control Valve Asm

1шт.

38

H275255

CRANK LEVER

Valve Lever Casting

1шт.

40

H558403

BLOCK

Bearing Block Asm

2шт.

42

H265025

SPACER

2шт.

43

H242701

HANDLE

Valve Lever

1шт.

44

H736645

NUT

(3/8" NC Jam)

1шт.

45

H182121

KNOB

1шт.

46

H185066

DRAG LINK

Valve Link

2шт.

47

H120683

PIN,15.88mm OD x 94.06mm L

(5/8" x 3 1/2")

1шт.

48

H740118

X

Cotter Pin (5/32" x 1")

1шт.

49

H35279

AXLE PIN,4.72mm OD x 23.76mm L

Pin (3/16" x 57/64")

1шт.

50

H739623

PIN

Cotter Pin (1/16" x 1/2")

1шт.

51

H174771

CLEVIS PIN

Pin (1/4" x 1")

1шт.

52

H739771

HARDWARE

Cotter Pin (3/32" x 3/4")

1шт.

53

H168609

ELBOW

Adapter - 90deg.

2шт.

54

H57661

PLUG

- "A" Port

1шт.

55

H31674

ADAPTER

- 90deg., with Check Valve

1шт.

56

H195313

X

Adapter - 90deg.

1шт.

57

H218016

CONNECTOR, ELEC

Adapter - Straight

1шт.

On Some Early Model Machines, Four 218-5262 O Ring Bushings (3/4" ORB x 7/8" SAE Fe.) Were Used To Adapt The Four Adapters To Valve Ports.

1шт.

58

H745174

O-RING

O Ring

1шт.

59

H168609

ELBOW

Adapter - 90deg.

2шт.

60

H592022

TUBE,1" OD

- Return

1шт.

61

H592097

TUBE,0.75" OD

- Pressure

1шт.

62

H595041

VALVE

Control Valve Asm - See Figure 30

1шт.

63

H151399

FILTER STRAINER

Suction Filter Asm

1шт.

64

H218461

ELBOW

Adapter Asm

2шт.

66

H588426

PUMP

Hydraulic Pump Asm - See Figure 30

1шт.

67

H291278

Sealer (Replaces Gasket)

1шт.

68

H590828

TUBE,1" OD

- Suction

1шт.

Up To Spec #P42WS19, P42HZ20, P57WS21, P57HZ22.

1шт.

69

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Adapter - 90deg.

1шт.

70

H218016

CONNECTOR, ELEC

Adapter - Straight

1шт.

71

H275289

FITTING

Adapter - 90deg.

1шт.

72

H710251

SCREW

HHCS (7/16" x 1" NC)

2шт.

73

H739227

WASHER, LOCK

Washer (7/16" Lock)

2шт.

74

H275594

HOSE

& Tube (1" x 18" - 1 5/16" JIC Male - 1 5/16" JIC Fe. Sw.)

1шт.

Up To Spec #P42WS19, P42HZ20, P57WS21, P57HZ22.

1шт.

75

H273110

HOSE

& Tube (3/4" x 54" 1 1/16" JIC Fe. Sw.)

1шт.

76

H244707

HOSE ASSY.

Hose (1" x 21" - 1 5/16" JIC Male - 1 5/16" JIC Fe. Sw.)

1шт.

77

H247965

CLAMP

2шт.

78

H265363

TEE

1шт.

79

H256446

ADAPTER

- Straight

1шт.

81

H228346

TEE

Tube Tee

1шт.

Used Only When Hydra-Bore Attachment Is Used W/Line Layer Or Backfill Blade.

1шт.

82

H265496

HOSE

(3/4" x 20" - 7/8" JIC Fe. Sw)

1шт.

Used Only When Hydra-Bore Attachment Is Used W/Line Layer Or Backfill Blade.

1шт.

83

H268599

HOSE

& Tube (3/4" x 56" - 7/8" JIC Fe. Sw. - Both Ends)

1шт.

89

H280677

HOSE

& Tube (1" x 33" 1 5/16" JIC Fe. Sw.

1шт.

Spec #42WS19, P42HZ20, P75WS21, P57HZ22 And Up.

1шт.

90

H607275

VALVE, CHECK

Check Valve, without Check Valve

1шт.

91

277165

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

- 90deg., without Check Valve

1шт.

92

H266288

ELBOW

- 45deg. without Check Valve

1шт.

93

H256477

Hose (3/4 x 19 - 1 1/16 JIC Fe. Sw x 45deg. 3/4 OD Bent Tube), without Check Valve

1шт.

94

H195958

HOSE,45.00", SAE 100R1

Without Check Valve 45.00", SAE 100R1

1шт.

95

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

without Check Valve 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

96

H30718

TEE

without Check Valve

1шт.
