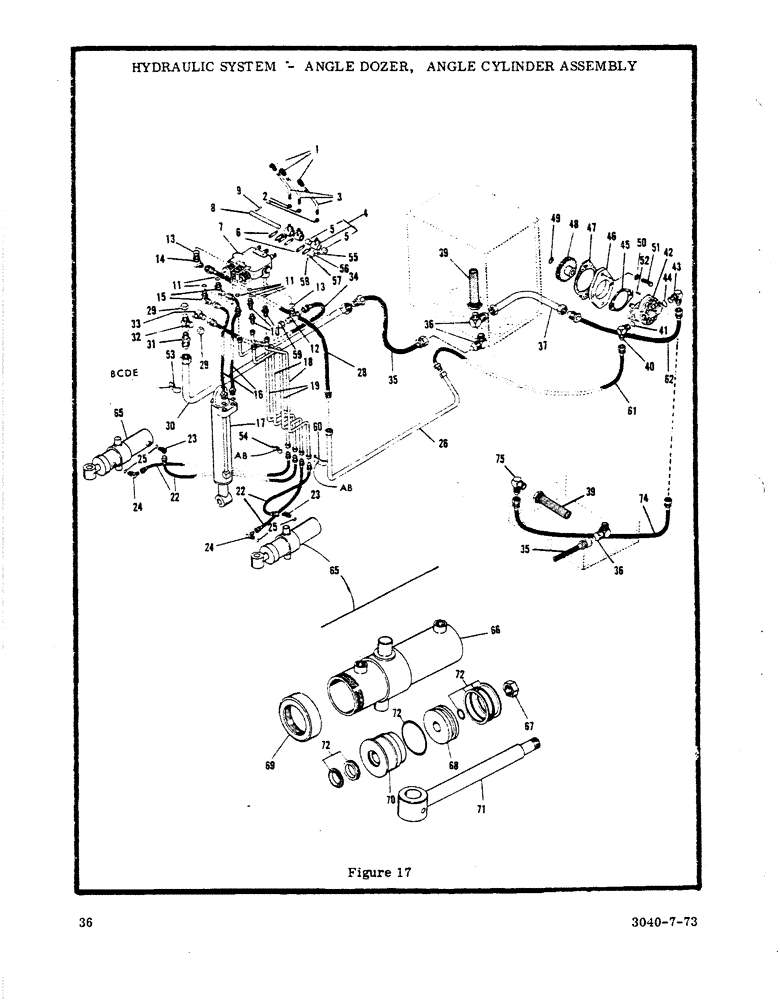

Запчасти Case P42 (36) - HYDRAULIC SYSTEM, ANGLE DOZER, ANGLE CYLINDER ASSEMBLY

1

H182121

KNOB

3шт.

2

H736645

NUT

(3/8" NC Jam)

3шт.

3

H191924

LEVER

Handle

3шт.

4

H275263

LEVER

Casting

3шт.

6

H185066

DRAG LINK

Valve Link

6шт.

7

H595041

VALVE

Control Valve Asm. (See Figure 30)

1шт.

8

H256172

SHAFT

- Dozer Lever

1шт.

9

H742007

PIN

Roll Pin (3/16" x 1 1/8")

1шт.

10

H45534

ROD, CONNECTING

Adapter - Straight

4шт.

11

H745166

O-RING

10шт.

12

H170720

FITTING

Tee - Out Port

1шт.

13

H745174

O-RING

2шт.

14

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adapter - 45 deg. - In Port

1шт.

15

H168591

FITTING

Adapter-90deg.

2шт.

16

H199380

HOSE,0.38" ID x 15.00", SAE 100R1

2шт.

17

H583534

CYLINDER BLOCK

Dozer Lift Cylinder Asm. (See Page 21)

1шт.

18

H595165

TUBE,0.375" OD

"C" & "E" Ports

2шт.

19

H595157

TUBE,0.375" OD

"D" & "F" Ports

2шт.

22

H195362

HYDRAULIC HOSE,6.35 mm ID x 685.80 mm, SAE 100R1

6.35 mm ID x 685.80 mm, SAE 100R1

4шт.

23

H169094

ELBOW

Adapter-45deg.

2шт.

24

H165068

ADAPTER

-90deg.

2шт.

25

H745158

O-RING

4шт.

26

H592030

TUBE,0.625" OD

- Pressure

1шт.

28

H241521

HYDRAULIC HOSE,12.70 mm ID x 635.00 mm, SAE 100R1

12.70 mm ID x 635.00 mm, SAE 100R1

1шт.

29

H218651

CAP

- Tee

2шт.

30

H592022

TUBE,1" OD

- Return

1шт.

31

H256446

ADAPTER

- Straight

1шт.

32

H265363

TEE

- Return Tube

1шт.

33

H91595

ADAPTER

-90deg.

1шт.

34

H175612

HYDRAULIC HOSE,12.70 mm ID x 609.60 mm, SAE 100R1

12.70 mm ID x 609.60 mm, SAE 100R1

1шт.

35

H244707

HOSE ASSY.

Hose (1" x 21" - 1 5/16" JIC Male - 1 5/16" JIC Fe. Sw.)

1шт.

36

H218461

ELBOW

Adapter-90deg.

2шт.

37

H590836

TUBE,1" OD x 5, 8" L

- Suction

1шт.

Up To Spec. Nos. P42WS19, P42HZ20, P57WS21, P57HZ22.

1шт.

39

H151399

FILTER STRAINER

Suction Filter

1шт.

40

H206938

FITTING

Adapter-90deg.

1шт.

41

H745174

O-RING

1шт.

42

H601617

PUMP

Hydraulic Pump Asm. (See Figure 30)

1шт.

43

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Adapter-90deg.

1шт.

44

H745182

O-RING

1шт.

45

H32375

GASKET

- Pump

1шт.

46

H254490

PLATE ASSY.

Adapter Plate

1шт.

47

H238303

GASKET

Gasket, Plate To P.T.O.

1шт.

48

H254508

GEAR WHEEL

Pump Drive Gear

1шт.

49

H746487

RING, SNAP

Snap Ring

1шт.

50

H57943

SEALING WASHER

Washer - Seal

2шт.

51

H710251

SCREW

HHCS (3/16" x 1 1/4" NC)

2шт.

52

H233346

KEY

1шт.

53

H247965

CLAMP

2шт.

54

H59345

CLAMP

2шт.

55

H174771

CLEVIS PIN

Pin (1/4" x 1")

3шт.

56

H739771

HARDWARE

Cotter Pin (3/32" x 3/4")

3шт.

57

H35279

AXLE PIN,4.72mm OD x 23.76mm L

Pin (3/16" x 57/64")

3шт.

58

H739623

PIN

Cotter Pin (1/16" x 1/2")

3шт.

59

H167288

CAP

1шт.

60

H46888

CLAMP

2шт.

61

H265314

HOSE

(1/2" x 47" - 7/8" Fe. Sw. - 7/8" JIC Male)

1шт.

62

H265322

HOSE ASSY.

Hose (3/4" x 25" - 1 5/16" JIC Male - 1 1/16" JIC Fe. Sw.)

1шт.

65

H583542

CYLINDER BLOCK

Dozer Angle Cylinder Asm.

2шт.

66

H591271

TUBE ASSY.

Barrel Asm.

1шт.

67

H738203

LOCK NUT

- Piston Retaining

1шт.

68

H247023

PISTON

1шт.

69

H232116

COLLAR

Gland Collar

1шт.

70

H274035

GLAND

1шт.

71

H591263

ROD

Piston Rod Asm.

1шт.

72

H591255

SEAL

Repair Kit

1шт.

73

H749556

PLUG

1шт.

74

H265454

Hose (3/4" x 34" - 1 1/16" JIC Fe. Sw. - Both Ends)

1шт.

Spec. Nos. P42WS19, P42HZ20, P57WS21, P57HZ22 And Up

1шт.

75

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

Adapter-90deg.

1шт.

Spec. Nos. P42WS19, P42HZ20, P57WS21, P57HZ22 And Up

1шт.

a

H709477

BOLT

HHCS (5/16" x 1 1/2" NC)

1шт.

b

230-4215

NUT,5/16"-18, GA

Nut (5/16" NC Lock)

1шт.

c

H709451

BOLT (SPREADER)

HHCS (5/16" x 1" NC)

1шт.

d

H738450

WASHER

(5/16" Flat)

1шт.

e

H739201

WASHER

(5/16" Lock)

1шт.
