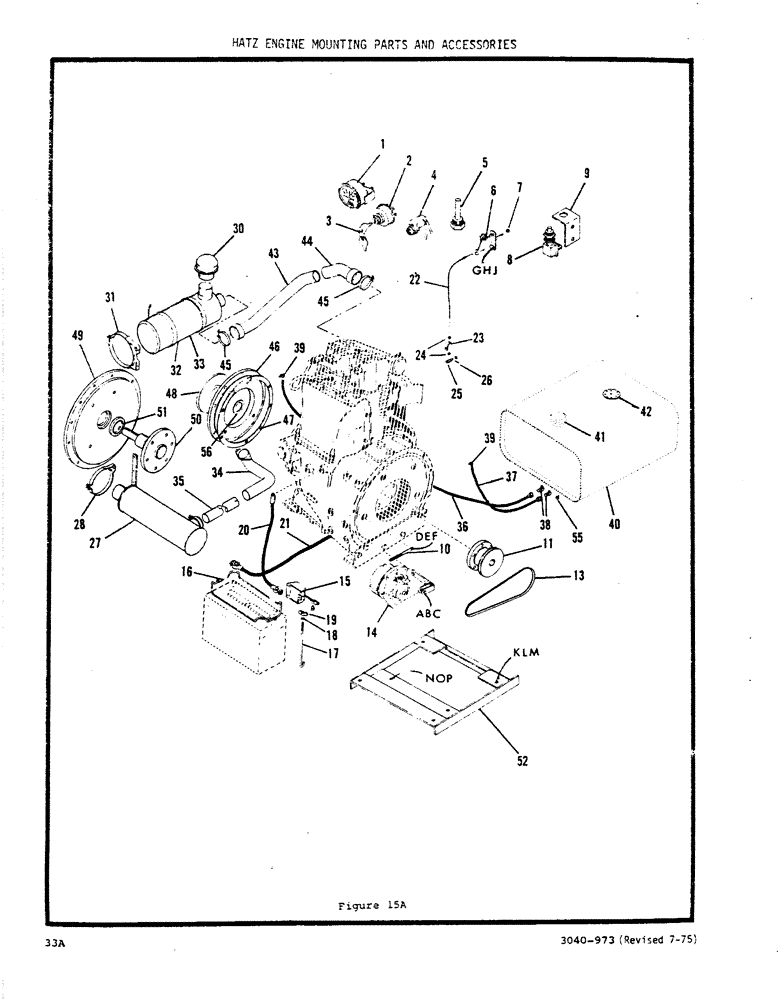

Запчасти Case P42 (33A) - HATZ ENGINE MOUNTING PARTS AND ACCESSORIES

1

H72603

AMMETER

1шт.

2

H71498

SWITCH

Ignition Switch W/Keys

1шт.

3

H95570

KEY

(Set Of Two)

1шт.

4

H516872

LIGHT

Hydraulic Oil Temp Light

1шт.

5

H603852

LIGHT

Oil Temp Sender

1шт.

114323A1

LENS

red replacement

1шт.

6

H581736

CONTROL BLOCK

Throttle & Engine Kill Control

1шт.

7

H244434

KNOB

Ball - Control

1шт.

8

H201285

SWITCH

Starter Button

1шт.

9

H200998

ANGLE

Bracket - Starter Button

1шт.

10

H265116

LINK

- Alternator Adjust, 30+4 only

1шт.

11

H257964

SHEAVE

- Alternator Drive, 30+4 only

1шт.

13

H164970

BELT

- Alternator Drive, 30+4 only

1шт.

14

H527259

ALTERNATOR

Asm., 30+4 only

1шт.

15

H107516

GOVERNOR

Voltage Regulator, 30+4 only

1шт.

16

H578302

BATTERY BOX

Battery Hold-Down Bracket

1шт.

17

H30825

BOLT

Bolt - Hold-Down

2шт.

18

H738450

WASHER

(5/16" Flat)

2шт.

19

H746834

NUT, WING

Nut (5/16" NC - Wing)

2шт.

20

H116996

CABLE PULLING GRIP

Battery Cable, 40+4 only

2шт.

20

H106096

CABLE PULLING GRIP

Battery Cable - Ground, 30+4 only

1шт.

21

H84699

NEG BATTERY CABLE

Battery Cable - Positive, 30+4 only

1шт.

22

H297952

ELECTRICAL WIRE

Control Cable, 40+4 only

1шт.

22

H270785

CONTROL BLOCK

Control Cable, 30+4 only

1шт.

23

H96347

CLIP

Angle - Cable Mtg, 30+4 only

1шт.

24

H99457

PIPE CLAMP

Conduit Nut, 30+4 only

2шт.

25

H139576

JOINT TURNING

Swivel

1шт.

26

H739623

PIN

Cotter Pin (1/16" x 1/2")

1шт.

27

H46177

MUFFLER

30+4 only

1шт.

28

H146340

BRAKE BAND

Muffler - Clamp

2шт.

30

H146308

SPARE PART

Cap - Air Stack, 30+4 only

1шт.

31

H146316

Mounting Band, 30+4 only

2шт.

32

H152553

AIR CLEANER

Body - Air Cleaner, 30+4 only

1шт.

33

H149534

ELEMENT

Cleaner Element

1шт.

34

H600379

TUBE

Exhaust Pipe, 30+4 only

1шт.

35

H282228

TUBE,1.875" OD x 23" L

Exhaust Tube, 30+4 only

1шт.

36

H282475

Fuel Line (1/4" x 75"), 40+4 only

1шт.

36

H270322

HOSE ASSY.

Fuel Line (1/4" x 75"), 30+4 only

1шт.

37

H282467

Fuel Line (1/4" x 67"), 40+4 only

1шт.

37

H270330

Fuel Line (1/4" x 63"), 30+4 only

1шт.

38

REFERENCE

SPARE PART

Elbow - (90deg. - 1/8" NPT M x 7/16" - 20)

2шт.

39

H104612

CLAMP

Hose Clamp

2шт.

40

H587790

Fuel Tank

1шт.

41

H151274

CYLINDER END CAP

Fuel Tank Cap

1шт.

42

H142778

ELECTRICAL GAUGE

Fuel Level Sender

1шт.

43

H196725

INTAKE AIR HOSE,1.50" ID x 15.00", SAE 20R4 CLASS SC

- Air Cleaner Hose, 30+4 only 1.50" ID x 15.00", SAE 20R4 CLASS SC

1шт.

44

H265710

INTAKE AIR HOSE,1.75" ID, 2.00" ID x 15.25", SAE 20R4 CLASS SC

Air Cleaner Hose, 30+4 only

1шт.

45

H42804

HOSE CLAMP

30+4 only

2шт.

46

H272989

P. T. O. Adapter, 30+4 only

1шт.

47

H260653

GASKET

30+4 only

1шт.

48

H756809

OIL SEAL

Oil Seal, 30+4 only

1шт.

49

H263335

FLANGE

P. T. O. Adapter, 40+4 only

1шт.

50

H282426

Stub Shaft, 40+4 only

1шт.

50

H272971

SHAFT

Stub Shaft, 30+4 only

1шт.

51

H754226

OIL SEAL

Oil Seal, 40+4 only

1шт.

52

H600395

Engine Mount Asm, 40+4 only

1шт.

55

H749606

Plug (1/4" Pipe)

1шт.

56

H283531

SPACER

1шт.

H142794

ELECTRICAL GAUGE

GAUGE fuel

1шт.

a

H710673

BOLT

HHCS (1/2" x 2 1/4")

1шт.

b

H738484

WASHER

(1/2" Flat)

1шт.

c

H735811

NUT

(1/2" NC)

1шт.

d

H709436

BOLT

HHCS (5/16" x 3/4" NC)

1шт.

e

H738450

WASHER

(5/16" Flat)

1шт.

f

H739201

WASHER

(5/16" Lock)

1шт.

g

H709105

BOLT

HHCS (1/4" x 1/2" NC)

1шт.

h

H738443

WASHER

(1/4" Flat)

1шт.

j

H737999

LOCK NUT

Nut (1/4" NC)

1шт.

k

H720300

HHCS (5/8" x 1 3/4" NC - Grade 8)

1шт.

l

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

m

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

Washer (5/8" Flat - H.T.)

1шт.

n

H719930

HHCS (9/16" x 1 1/2" NC Grade 8)

1шт.

o

131-1218

LOCK NUT,9/16"-12, GC

NUT, LOCK, 9/16"-12, GC

1шт.

p

D53272

WASHER

(9/16" Flat- H.T.)

1шт.
