Запчасти Case P42 (32) - WISCONSIN ENGINE MOUNTING PARTS AND ACCESSORIES, DECALS

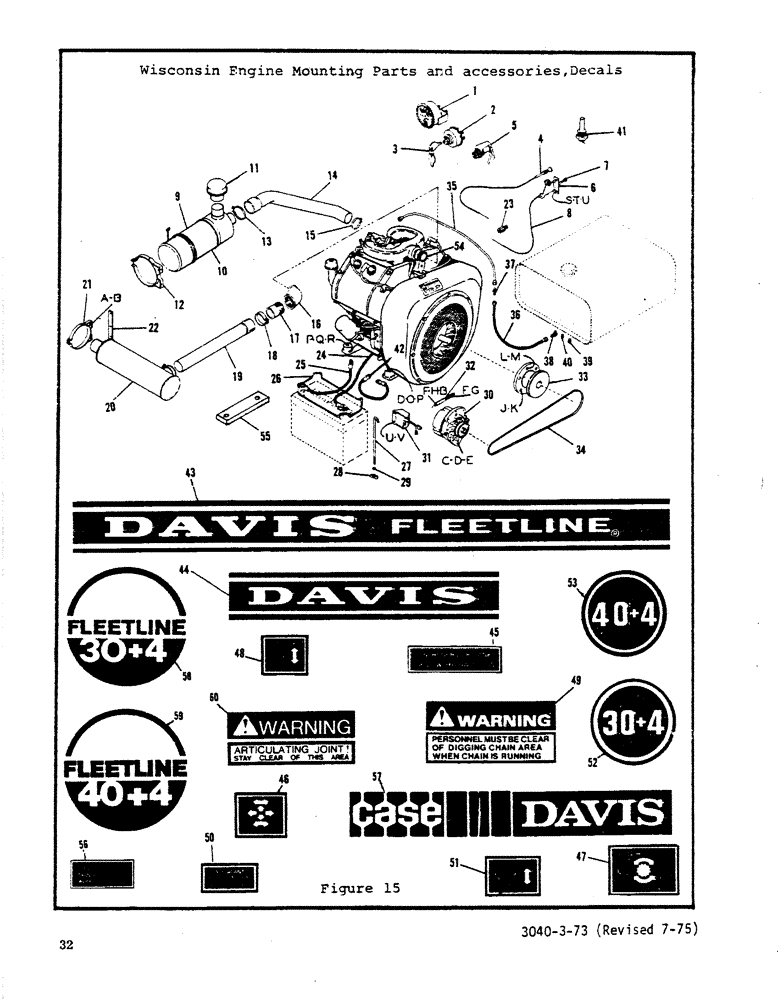

Схема запчастей Case P42 - (32) - WISCONSIN ENGINE MOUNTING PARTS AND ACCESSORIES, DECALS
4
39
34
59
18
47
26
57
41
46
25
54
6
36
17
44
33
16
40
12
24
9
30
10
27
8
3
56
38
37
43
35
29
55
15
31
2
1
7
58
45
21
19
23
11
48
5
20
22
49
13
51
28
50
52
42
53
14
60
32

Артикул

Название

Примечание

Количество

1

H72603

AMMETER

1шт.

2

H71498

SWITCH

Ignition Switch W/Keys

1шт.

3

H95570

KEY

s (Set of Two)

1шт.

4

H501916

CABLE

Choke Control

1шт.

5

H516872

LIGHT

Hydraulic Oil Temp Light

1шт.

6

H581736

CONTROL BLOCK

Throttle Control

1шт.

7

H244434

KNOB

Ball - Throttle Control

1шт.

8

H265728

CABLE

Wire Throttle Control

1шт.

9

H152553

AIR CLEANER

Body

1шт.

10

H149534

ELEMENT

- Air Cleaner

1шт.

11

H146308

SPARE PART

Cap - Air Stack

1шт.

12

H146316

Mounting Band

2шт.

13

H42804

HOSE CLAMP

1шт.

14

H265710

INTAKE AIR HOSE,1.75" ID, 2.00" ID x 15.25", SAE 20R4 CLASS SC

Air Cleaner Hose

1шт.

15

H164145

HOSE CLAMP

1шт.

16

221-391

Elbow - Exhaust (1 1/4" to 1 1/2 Pipe) 30+4 Only

1шт.

16

H749754

ELBOW

- Exhaust (1 1/2" Pipe) 40+4 Only

1шт.

17

221-288

NIPPLE, LUBE

Nipple, Exhaust (1 1/2" x 4")

1шт.

18

H265694

Clamp - Exhaust

2шт.

19

H271296

PIPE

- Exhaust

1шт.

20

H146340

BRAKE BAND

CLAMP

1шт.

H46177

MUFFLER

1шт.

21

H271262

CLAMP

Muffler

2шт.

22

H271288

BRACKET

Mounting Strap-Muffler

2шт.

23

H42796

STOP

Throttle Stop

1шт.

24

H84699

NEG BATTERY CABLE

Battery Cable-Positive (30+4) Only

1шт.

24

H84699

NEG BATTERY CABLE

Battery Cable-Negative (40+4 Only)

1шт.

25

H116996

CABLE PULLING GRIP

Battery Cable-Negative

1шт.

26

H30833

FUNNEL

Frame, Battery Hold-Down

1шт.

27

030825

Bolt, Battery Hold-Down

2шт.

28

H746834

NUT, WING

Nut (5/16" Wing)

2шт.

29

H738450

WASHER

(5/16" Flat)

2шт.

30

H527259

ALTERNATOR

Asm.

1шт.

31

H107516

GOVERNOR

Voltage Regulator

1шт.

32

H265116

LINK

-Alternator Adjusting

1шт.

33

H263970

SHEAVE

-Alternator Drive (40+4 Only)

1шт.

33

H257014

SHEAVE

-Alternator Drive (30+4 Only)

1шт.

34

H211946

BELT

-Alternator Drive

1шт.

35

H592592

LINE

Fuel Line

1шт.

36

H546002

LINE

Fuel Hose

1шт.

37

222-715

Connector (Replaces H213207)

1шт.

38

H52332

Adapter-90deg.

1шт.

39

H749606

Plug (1/4" Pipe)

1шт.

40

H749598

PLUG

(1/8" Pipe)

1шт.

41

H81935

SENDER UNIT

Oil Temperature Sender

1шт.

42

H256990

CABLE PULLING GRIP

Solenoid Cable-Solenoid To Sender)

1шт.

43

H190926

DECAL

-Davis Fleetline

2шт.

44

H169623

DECAL

-Davis

1шт.

45

H277723

DECAL

-Oil Type

1шт.

46

H266627

DECAL

-Direction Control

1шт.

47

H266635

DECAL

-Creep Control

1шт.

48

H277046

DECAL

-Boom Control

1шт.

49

321-3214

DECAL

-Warning

2шт.

50

H266551

DECAL

-Starting Flap

1шт.

51

H266569

DECAL

-Trencher

1шт.

52

H190934

DECAL

-30+4

2шт.

Indicates H592744 Decal Kit For 30+4. Kits Includes one H169623, two H190934, two H190926, one H227744, one H266551, two 321-3214, one H266569, one H283622, one 321-3218, and one H266635.

1шт.

53

H219279

DECAL

-40+4

2шт.

Indicates H592782 Decal Kit For 40+4. Kit Includes one H169623, two H190926, two H219279, one H227744, one H266569, one H266585, two 321-3214, one H266627, one H266635, one 321-3218, and one H283622.

1шт.

54

221-266

PIPE,Nipple, 1 1/4" NPT x 4"

Nipple (1 1/4" x 1 5/8") 30+4 Only

1шт.

54

H754200

Nipple (1 1/2" x 1 3/4") 40+4 Only

1шт.

55

H278747

SPACER

-Engine Mtg. 30+4 only

2шт.

56

H283622

DECAL

-Range Select

1шт.

57

321-3202

DECAL

- Case-Davis

2шт.

58

321-3187

DECAL

- Fleetline 30+4

2шт.

Indicates H611848 Decal Kit for 30+4. Kit Includes Two 321-3202, two 321-3287, one H227744, one H266551, one H266569, one H277046, two 321-3214, one H266627, one H266635, one 321-3218, and one H283622.

1шт.

59

321-3188

DECAL

- Fleetline 40+4

2шт.

Indicates H611616 Decal Kit For 40+4. Kit Includes two 321-3202, two 321-3288, one H227744 one H266551, one H266569, one H277046, two 321-3214, one H266627, one H266635, one 321-3218, and one H283622.

1шт.

60

321-3218

DECAL

- Warning

1шт.

a

H709436

BOLT

HHCS (5/16" x 3/4" NC)

1шт.

b

230-4215

NUT,5/16"-18, GA

Nut (5/16" NC Lock)

1шт.

c

H710707

BOLT

HHCS (1/2" x 3" NC)

1шт.

d

H738039

LOCK NUT

Nut (1/2" NC Lock)

1шт.

e

H738484

WASHER

(1/2" Flat)

1шт.

f

H709451

BOLT (SPREADER)

HHCS (5/16" x 1" NC)

1шт.

g

H738450

WASHER

(5/16" Flat)

1шт.

h

H739201

WASHER

(5/16" Lock)

1шт.

j

H709857

BOLT

HHCS (3/8" x 1" NC) 30+4 Only

1шт.

k

H739219

LOCK WASHER

Washer (3/8" Lock) 30+4 Only

1шт.

l

H710632

BOLT

HHCS (1/2" x 1 1/4" NC) 40+4 Only

1шт.

m

H739235

WASHER

(1/2" Lock)

1шт.

n

H710723

X

HHCS (1/2" x 3 1/2" NC) 30+4 Only

1шт.

o

H738633

WASHER

(1/2" Flat-wrought) 30+4 Only

1шт.

p

H711457

BOLT

HHCS (5/8" x 3 1/2" NC) 40+4 Only

1шт.

q

H738658

WASHER

(5/8" Flat-wrought) 40+4 Only

1шт.

r

230-42110

LOCK NUT,5/8"-11, GA

Nut (5/8" NC Lock) 40+4 Only

1шт.

s

H709105

BOLT

HHCS (1/4" x 1/4" x 1/2" NC)

1шт.

t

H738443

WASHER

(1/4" Flat)

1шт.

u

H737999

LOCK NUT

Nut (1/4" NC Lock)

1шт.

v

H709113

X

HHCS (1/4" x 3/4" NC)

1шт.
