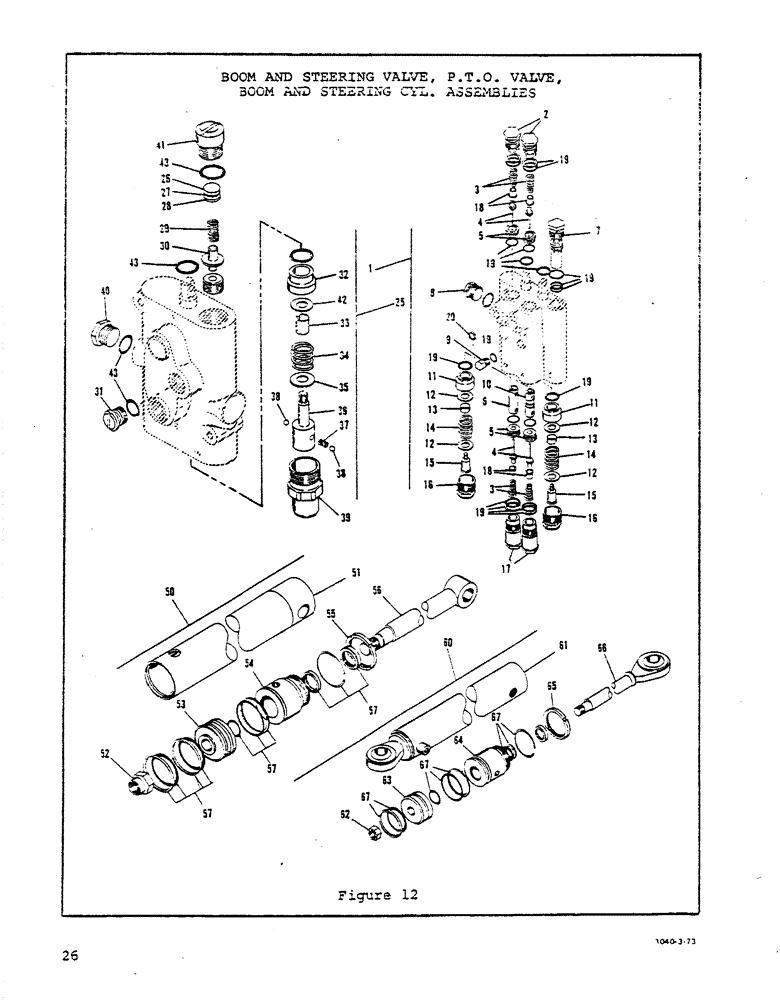

Запчасти Case P42 (26) - BOOM AND STEERING VALVE, P.T.O. VALVE, BOOM AND STEERING CYLINDER ASSEMBLIES

1

H550079

LOCK VALVE

Boom and Steering Valve Asm.

1шт.

2

H172205

PLUG

Asm. (Includes O-Rings)

2шт.

3

H172585

SPRING

-Lockout

4шт.

4

H266098

SPOOL

Poppet Asm. (Also Included in Seal Kit)

4шт.

5

H93781

SEAT

Seal Asm. (Includes O-Rings)

4шт.

6

H57596

PLUNGER

-Lockout

1шт.

7

H102053

VALVE

Relief Valve-2500P.S.I. (Includes O-Rings)

1шт.

8

H94219

PLUG

Asm. (Includes O-Rings)

1шт.

9

H142141

PLUG

Asm. (Includes O-Rings)

1шт.

10

H142133

PLUNGER

Lockout-Float

1шт.

11

H172569

BUSHING

2шт.

12

H746115

WASHER

4шт.

13

H93815

SPACER

Spool

2шт.

14

H93880

SPRING

Spool

2шт.

15

H113134

SPOOL

Screw, Spool

2шт.

16

H201681

CAP

Asm. (Includes O-Rings)

2шт.

17

H172601

PLUG

Asm. (Includes O-Rings)

2шт.

18

H266684

AXLE PIN

Poppet Eye

4шт.

19

H172643

SEAL ASSY.

Seal Repair Kit

1шт.

20

H746875

SCREW

Oriface Plate (.043 Dia. Oriface)

1шт.

25

H571968

VALVE

P.T.O. Valve Asm.

1шт.

26

H77990

SHIM

(.015)

1шт.

27

H746180

SHIM

(.010)

1шт.

28

H220798

SHIM,.035" Thk

1шт.

29

H78006

VALVE SPRING

Spring

1шт.

30

H220962

SPOOL

Poppet

1шт.

31

H570218

Plug (Includes O-Ring)

1шт.

32

H220756

Bushing

1шт.

33

H220749

Spacer

1шт.

34

H220764

SPRING

1шт.

35

H220947

Washer

1шт.

36

H220400

Detent Screw

1шт.

37

H220954

Detent Spring

1шт.

38

H755306

BALL

Detent Ball

2шт.

39

H580035

CYLINDER END CAP

Dentent Cap

1шт.

40

H60525

PLUG

Asm.

1шт.

41

H229195

PLUG

Asm.

1шт.

42

H253062

WASHER

(.046 Thick)

1шт.

42

H253054

WASHER

(.020 Thick)

1шт.

43

H228742

Seal Repair Kit

1шт.

50

H530519

CYLINDER BLOCK

Boom Cylinder Asm.

1шт.

51

H122218

SLEEVE CYLINDER

Barrel Asm.

1шт.

52

H737676

NUT

-Piston Retaining

1шт.

53

H120147

PISTON ASSY.

Piston

1шт.

54

H120360

BEARING

1шт.

55

H745794

BEARING LOCK NUT

Bearing Nut

1шт.

56

H122226

ROD

Piston Rod

1шт.

57

H122234

SEAL ASSY.

Seal Repair Kit

1шт.

60

H547331

CYLINDER

Steering Cylinder Asm.

1шт.

61

H171942

STEERING CYLINDER

Barrel Asm.

1шт.

62

H737643

NUT

-Piston retaining (3/4" NF Lock)

1шт.

63

H171926

PISTON

1шт.

64

H70078

BEARING

1шт.

65

H745786

BEARING LOCK NUT

Bearing Nut

1шт.

66

H171959

PITMAN

Piston Rod

1шт.

67

H171983

GASKET KIT

Seal Repair Kit

1шт.
