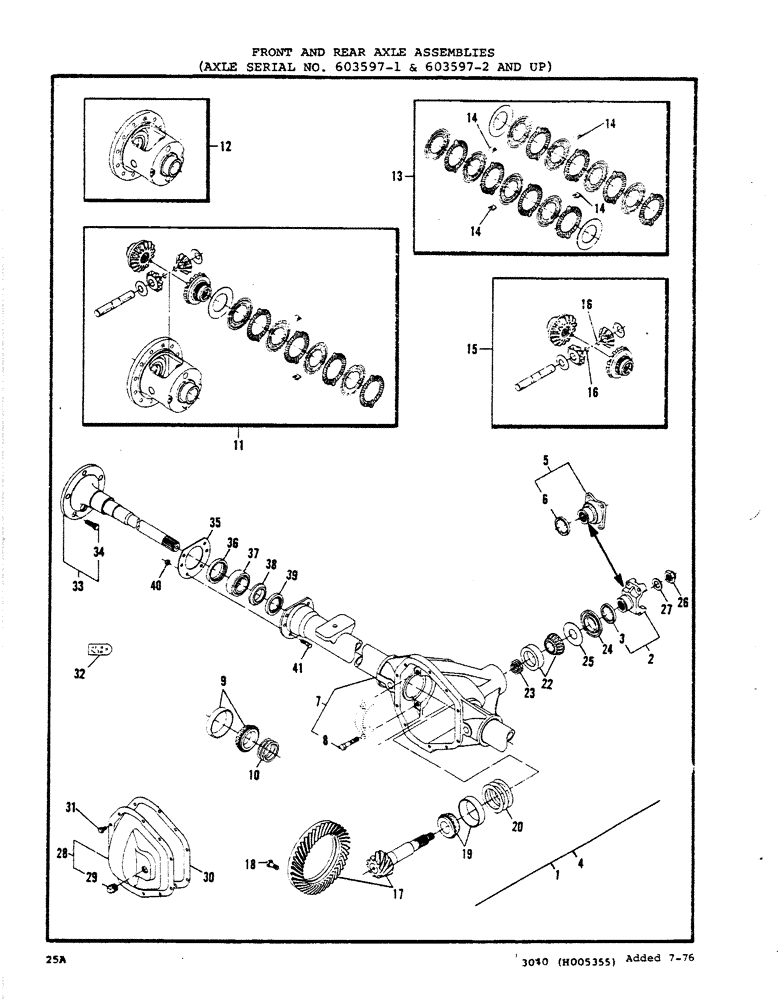

Запчасти Case P42 (25A) - FRONT AND REAR AXLE ASSEMBLIES, AXLE SERIAL NUMBER 603597-1 AND 603597-2 AND UP

1

H608653

CENTER AXLE

Front Axle Asm (Also Includes Items 7 Through 41)

1шт.

2

H197590

YOKE

End Yoke Asm

1шт.

3

H196998

SPACER

Slinger Ringer

1шт.

4

H608661

AXLE

Rear Axle Asm

1шт.

5

H560524

FLANGE

End Yoke Asm

1шт.

6

H196998

SPACER

Slinger Ring

1шт.

7

H615799

HOUSING

Asm

1шт.

8

H226548

SCREW

Differential Bearing Cap Screw

2шт.

9

H598920

KIT

- Differential Bearing (Replaces H598520)

1шт.

10

H198259

SHIM,.003" Thk

Differential Bearing .003" Thk

1шт.

10

H198267

SHIM,.005" Thk

Differential Bearing .005" Thk

1шт.

10

H198275

SHIM,.010" Thk

Differential Bearing .010" Thk

1шт.

10

H198283

SHIM,.030" Thk

Differential Bearing .030" Thk

1шт.

11

H572354

CASE

Asm - Differential

1шт.

12

H226688

CASE

- Differential

1шт.

13

H572370

DISC

Kit - Differential Disc And Plate

1шт.

14

H226753

CLIP

- Differential Clutch Retainer

4шт.

15

H572362

KIT

- Differential

1шт.

16

H226738

RING, SNAP

Snap Ring

2шт.

17

H198242

GEAR-SET

Drive Gear And Pinion Set (Includes Item 26)

1шт.

18

H225219

BOLT (SPREADER)

Bolt - Drive Gear

10шт.

19

H598904

KIT

- Inner Pinion Bearing

1шт.

20

H198150

SHIM,.003" Thk

Inner pinion bearing .003" Thk

1шт.

20

H198168

SHIM,.005" Thk

Inner Pinion Bearing .005" Thk

1шт.

20

H198176

SHIM,.010" Thk

Inner Pinion Bearing .010" Thk

1шт.

22

H598912

KIT

- Outer Pinion Bearing

1шт.

23

H198010

SHIM,.003" Thk

Pinion bearing .003" Thk

1шт.

23

H198028

SHIM,.005" Thk

Pinion bearing .005" Thk

1шт.

23

H198036

SHIM,.010" Thk

Pinion bearing .010" Thk

1шт.

23

H198044

SHIM,.030" Thk

Pinion Bearing .030" Thk

1шт.

24

H226597

SEAL

- Pinion

1шт.

25

H198002

WASHER

Slinger - Pinion Bearing

1шт.

26

H197566

NUT

- Pinion

1шт.

27

H197574

WASHER

- Pinion Nut

1шт.

28

H198184

COVER ASSY

Cover Asm

1шт.

29

H749648

PLUG

1шт.

30

H198234

GASKET

- Cover

1шт.

31

H226555

FLANGE BOLT

Bolt - Cover

10шт.

32

H226563

TAG

- Ratio

1шт.

33

H615807

SHAFT

Asm - RH

1шт.

33

H615815

SHAFT

Asm - LH

1шт.

The L.H. is the shorter of the shafts

1шт.

34

H171090

WHEEL BOLT

5шт.

35

H315127

SEAL ASSY.

Retainer - Oil Seal

2шт.

One Each Included In H610709 Unit Bearing And Seal Kit.

1шт.

36

H757518

SEAL

- Oil

2шт.

One Each Included In H610709 Unit Bearing And Seal Kit.

1шт.

37

H599266

BEARING ASSY

Bearing

2шт.

One Each Included In H610709 Unit Bearing And Seal Kit.

1шт.

38

H198085

BEARING

Ring - Wheel Bearing Retainer

2шт.

One Each Included In H610709 Unit Bearing And Seal Kit.

1шт.

39

H198093

SEAL ASSY.

Seal - Oil

2шт.

One Each Included In H610709 Unit Bearing And Seal Kit.

1шт.

40

H197780

LOCK NUT

Nut - Brake Bolt

12шт.

41

H263103

BOLT

Bolt - Brake

12шт.
