Запчасти Case P42 (24) - FRONT AND REAR AXLE ASSEMBLIES, AXLE SERIAL NUMBER 603597-1 AND 603597-2 AND UP

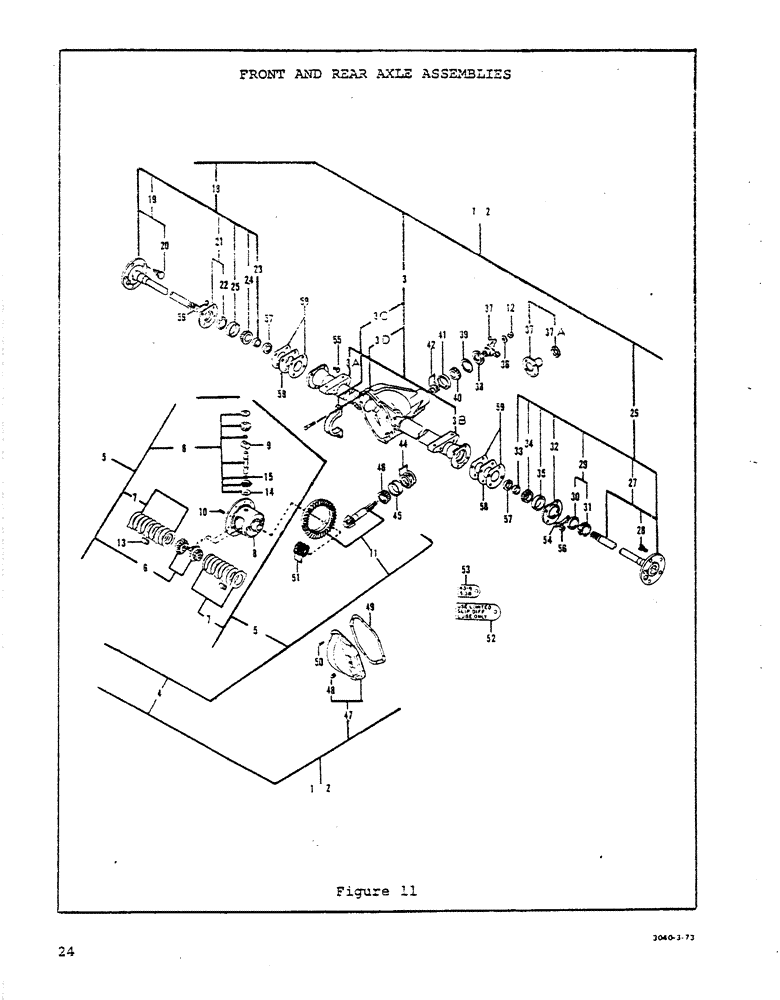

Схема запчастей Case P42 - (24) - FRONT AND REAR AXLE ASSEMBLIES, AXLE SERIAL NUMBER 603597-1 AND 603597-2 AND UP
23
55
42
35
6
4
48
50
59
1
2
30
49
44
10
25
12
37a
33
38
54
58
22
11
5
40
27
39
56
3d
9
25
1
2
37
53
37
39
59
3b
18
8
36
31
52
34
14
6
13
20
45
57
3
19
7
41
32
24
5
47
15
28
4
21
56
48
29
3c
7
57
3a

Артикул

Название

Примечание

Количество

1

H558759

AXLE

Front Axle Asm.

1шт.

2

H558767

AXLE

Rear Axle Asm.

1шт.

3

H206730

HOUSING

-Axle

1шт.

3a

H264366

Tube Asm.-Rear L.H.

1шт.

3b

H264358

Tube Asm.-Rear R.H.

1шт.

3c

H264374

Diff. Brg. Cap

2шт.

3d

H226548

SCREW

Diff. Brg. Cap Screw

4шт.

4

H591719

GEAR-SET

Diff. Asm.

1шт.

5

H572354

CASE

Asm.-Diff.

1шт.

6

H572362

KIT

Diff. Parts. Includes: 2 ea. Gear, Diff; 2 ea. Pinion Mate Diff. Bevel: 1 ea. Shaft, Diff: 2 ea. Snap Ring: 2 ea Thrust Wash. Diff. Pinion

40шт.

7

H572370

DISC

Kit Diff. Disc & Plate: Includes: 4 ea. Plate Diff: 8 ea. Disc, Diff. 2 ea. Spacer Diff. Gear (Dished): 4 ea. Clip Diff. Clutch Retainer

51шт.

Each Kit Consists of Two Packages With Quantities of Disc and Plates as Required to Provide a Total Stack Height of .590" + or -.022 in Each Package

1шт.

8

H226688

CASE

-Diff.

1шт.

9

H226696

SPACER

-Axle Shaft

1шт.

10

H225219

BOLT (SPREADER)

Bolt-Drive Gear

10шт.

11

H198242

GEAR-SET

Kit-Drive Gear & Pinion

1шт.

12

H197566

NUT

-Pinion

1шт.

13

H226753

CLIP

-Diff. Clutch Retain.

1шт.

P/N H226753 Clip is included in P/N 572370Kit.

1шт.

14

H226746

WASHER

Thrust Washer-Diff. Pinion

1шт.

P/N H226746 Thrust Washer is included in P/N H572362 Kit.

1шт.

15

H226738

RING, SNAP

Snap Ring (Replaces H226696)

1шт.

P/N H226696 Snap Ring is included in P/N H572362 Kit.

1шт.

18

H572479

SHAFT

Axle Shaft Asm. Flanged Left Hand

1шт.

19

H225342

SHAFT

Axle Shaft & Wheel Bolts

1шт.

20

H202051

BOLT

Wheel Bolt

5шт.

21

H280297

RETAINER

Wheel Bearing Retainer & Seal Asm. (Replaces H171090)

1шт.

22

H198143

SEAL ASSY.

Seal

1шт.

23

H198085

BEARING

Retaining Ring

1шт.

24

H753566

ROLLER BEARING

Cone-Bearing

1шт.

25

H753574

BEARING CUP

Cup-Bearing

1шт.

26

H572487

CONE

Axle Shaft Asm. Flanged Right Hand

1шт.

27

H225342

SHAFT

Axle Shaft & Wheel Bolts

1шт.

28

H171090

WHEEL BOLT

1шт.

29

H198135

RING, PISTON

Wheel Bearing Adjusting Ring & Seal Asm.

1шт.

30

H198143

SEAL ASSY.

Seal

1шт.

31

H198192

RING

Adjusting Ring

1шт.

32

H198127

RETAINER

Adjusting Ring Retainer

1шт.

33

H198085

BEARING

Retaining Ring

1шт.

34

H753566

ROLLER BEARING

Cone-Bearing

1шт.

35

H753574

BEARING CUP

Cup-Bearing

1шт.

36

H197574

WASHER

-Pinion Nut

1шт.

37

H197590

YOKE

End Yoke Asm.-Front

1шт.

37

H560524

FLANGE

End Yoke Asm.-Rear

1шт.

37a

H196998

SPACER

Slinger Ring

1шт.

38

H226597

SEAL

Oil Seal-Pinion

1шт.

39

H198002

WASHER

Slinger-Pinion Bearing- Outer

1шт.

40

H753558

BEARING, CONE

Cone-Bearing-Outer Pinion

1шт.

41

H753541

BEARING, CUP

Cup-Bearing-Outer Pinion

1шт.

42

H581751

SHIM

Kit-Pinion Bear. Adjust

1шт.

Consist of 2 ea. .003"/.005"/.010" Shims and 1 ea. .030 Shim.

1шт.

43

H198002

WASHER

Slinger-Pinion Bear. Outer

1шт.

44

H198150

SHIM,.003" Thk

Pinion adjust. .003" Thk

2шт.

44

H198168

SHIM,.005" Thk

Pinion Adjust. .005" Thk

3шт.

44

H198176

SHIM,.010" Thk

Pinion Adjust. .010" Thk

2шт.

45

H753582

BEARING CUP

Cup-Bear. Inner Pinion

1шт.

46

H753590

BEARING

Cone-Bear. Inner Pinion

1шт.

47

H198184

COVER ASSY

Cover Asm. Carrier

1шт.

48

H749648

PLUG

1шт.

49

H198234

GASKET

Cover Gasket

1шт.

50

H226555

FLANGE BOLT

Bolt-Cover

10шт.

51

H198259

SHIM,.003" Thk

Differential Bearing .003" Thk

2шт.

51

H198267

SHIM,.005" Thk

Differential Bearing .005" Thk

2шт.

51

H198275

SHIM,.010" Thk

Differential Bearing .010" Thk

2шт.

51

H198283

SHIM,.030" Thk

Differential Bearing .030" Thk

2шт.

52

H226571

TAG

-Limited Slip

1шт.

53

H226563

TAG

-Ratio

1шт.

54

H198101

LOCK ASSY

Lock-Wheel Bear. Adj. Ring

1шт.

55

H198051

BOLT

-Brake Disc

8шт.

56

H198119

LOCK NUT

Nut-Brake Disc Bolt

8шт.

57

H198093

SEAL ASSY.

Seal-Oil Tube

2шт.

58

H198069

SPACER

-Wheel Bearing

2шт.

59

H198077

GASKET

-Brake Disc

4шт.

Выбрано товаров: 73
