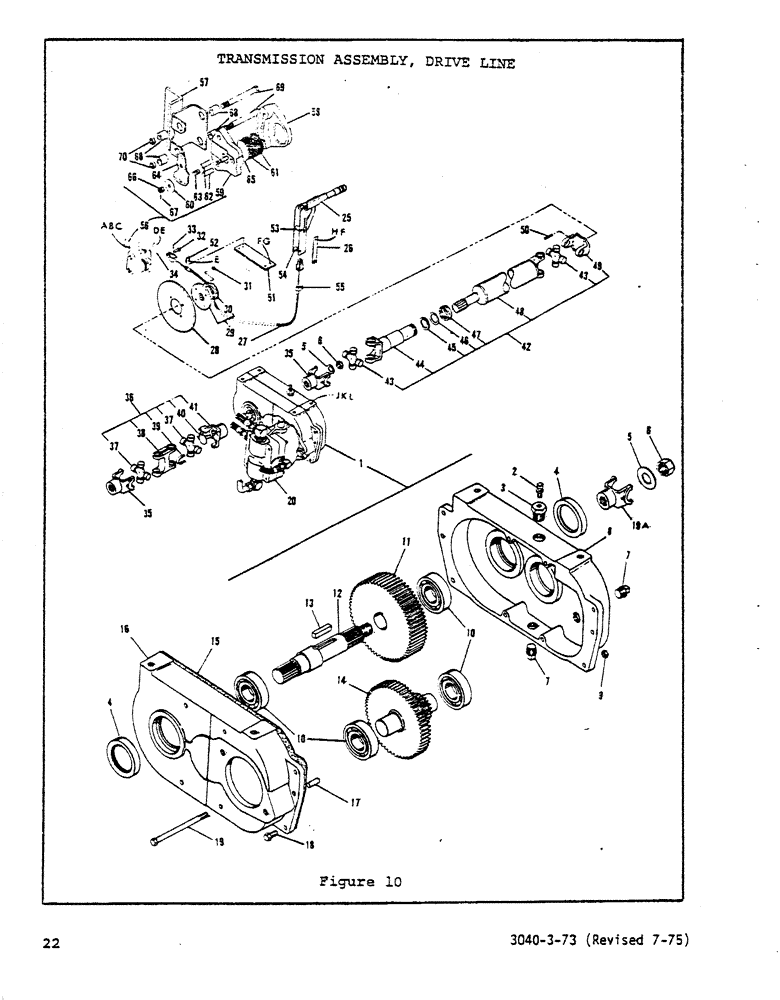

Запчасти Case P42 (22) - TRANSMISSION ASSEMBLY, DRIVE LINE

H587725

Transmission & Motor Asm.

1шт.

1

H586560

TRANSMISSION

Asm.

1шт.

2

H58826

BREATHER

Air Breather

1шт.

3

H754929

BUSHING

(3/4" To 1/8" Pipe)

1шт.

4

H754226

OIL SEAL

Oil Seal

2шт.

5

H208496

WASHER

(7/8" Flat)

1шт.

6

H214700

BOLT (MACHINE)

Nut (7/8"-14 Lock)

1шт.

7

H753905

PLUG

(1/2" Pipe)

2шт.

8

H252973

HOUSING

Gear Case

1шт.

9

H738013

LOCK NUT

Nut (3/8" NC Lock)

8шт.

10

H751081

BEARING

4шт.

11

H253146

GEAR

Reduction Gear

1шт.

12

H253138

SHAFT

Output Shaft

1шт.

13

H70045

KEY

1шт.

14

H253153

GEAR

Cluster Gear

1шт.

15

H253120

GASKET

1шт.

16

H252999

HOUSING

Gear Case

1шт.

17

H755272

DOWEL

Pin (3/8" x 1")

2шт.

18

H709873

BOLT

HHCS (3/8" x 1 1/2" NC)

4шт.

19

H710012

BOLT

HHCS (7/8" x 5" NC)

4шт.

19a

H208488

YOKE

1шт.

20

H585299

MOTOR

Propulsion Motor Asm (See Figure 28)

1шт.

25

H506881

HANDLE

Brake Lever Asm

1шт.

26

H166470

SPACER

- Brake Lever

1шт.

27

H589184

CABLE PULLING GRIP

Brake Cable Asm

1шт.

28

H258095

DISC

Brake Disc

1шт.

29

H560524

FLANGE

1шт.

30

H196998

SPACER

Slinger

1шт.

31

H738153

LOCK NUT

Nut (3/8" NF - Lock)

4шт.

32

H174771

CLEVIS PIN

(1/4" x 1")

1шт.

33

H739771

HARDWARE

Cotter Pin (3/32 x 3/4")

1шт.

34

H262218

Brake Arm Extension

1шт.

35

H197590

YOKE

2шт.

Ref #35 - (26 Spline) 05/24/96

1шт.

36

H568360

U-JOINT SPIDER

Front Drive Asm.

1шт.

37

H212183

JOINT

Journal & Bearing Kit

2шт.

38

H212415

YOKE

Center Yoke

1шт.

39

H183566

BOLT

"U" Bolt Asm

2шт.

40

H249581

PLUG

Welch Plug

1шт.

41

H208488

YOKE

Splined Yoke

1шт.

Ref #41 - (10 Spline) 05/24/96

1шт.

42

H588541

DRIVE SHAFT

Asm - Rear

1шт.

43

H584813

BEARING

Journal & Bearing Re placement Kit

2шт.

44

102834A1

COUPLING

Yoke - Drive Shaft (Replaces H223867)

1шт.

45

H223883

WASHER

Cork Washer

1шт.

46

H223891

WASHER

Steel Washer

1шт.

47

102835A1

SEAL

Dust Cap (Replaces H223875)

1шт.

48

H601641

DRIVE SHAFT

Tube, Spline & Yoke Asm

1шт.

49

H251777

FLANGE

Companion Flange

1шт.

50

H264523

BOLT

Bolt (ANG-12 3/8" UNF-24- 3A x 1 21/64")

4шт.

51

H265660

BRACKET

Brake Cable Bracket

1шт.

52

H166421

HARDWARE

"U" Bolt

1шт.

53

H53942

SPACER

- Long

1шт.

54

H53959

SPACER

- Short

1шт.

55

H53934

SPARE PART

Clamp

1шт.

56

H591669

BRACKET

Parking Brake Asm

1шт.

57

H593004

MOUNTING PARTS

Brake Mounting Bracket

1шт.

58

H265504

CARRIER

Side Casting

1шт.

59

H265512

CASTING

Cam Side Casting

1шт.

60

H415109

WASHER

- Back-Up (Replaces 195-04)

1шт.

61

H265520

BRAKE PAD

Puck

2шт.

REF 61 BRAKE PUCK. IF QUANTITIES OF 1 OR 2 ARE NEEDED, ORDER 1 PC. N8346 BRAKE SHOE KIT. MAR96...GLC

1шт.

62

H265538

AXLE PIN

Pin - Push

2шт.

63

H265546

VALVE SPRING

Spring - Comp.

1шт.

64

H265553

CAM

1шт.

65

H316299

WASHER

- Thrust (Replaces H265702)

1шт.

66

H756411

NUT

(5/16"-24 Castle)

1шт.

67

H739771

HARDWARE

Cotter Pin (3/32 x 3/4)

1шт.

68

H265579

BUSHING

4шт.

69

H714402

X

HHCS (3/8" x 3 1/4" NF)

2шт.

70

H738153

LOCK NUT

Nut (3/8" NF - Lock)

2шт.

a

H709865

BOLT

HHCS (3/8" x 1 1/4 NC)

1шт.

b

H738013

LOCK NUT

Nut (3/8" NC - Lock)

1шт.

c

H738468

WASHER

(3/8" Flat)

1шт.

d

H709113

X

HHCS (1/4" x 3/4" NC)

1шт.

e

H737999

LOCK NUT

Nut (1/4" NC - Lock)

1шт.

f

H709451

BOLT (SPREADER)

HHCS (5/16 x 1" NC)

1шт.

g

230-4215

NUT,5/16"-18, GA

Nut (5/16 NC - Lock)

1шт.

h

H709493

BOLT

HHCS (5/16" x 2" NC)

1шт.

j

H710640

X

HHCS (1/2" x 1 1/2" NC)

1шт.

k

H738484

WASHER

(1/2" Flat)

1шт.

l

H739235

WASHER

(1/2" Lock)

1шт.
