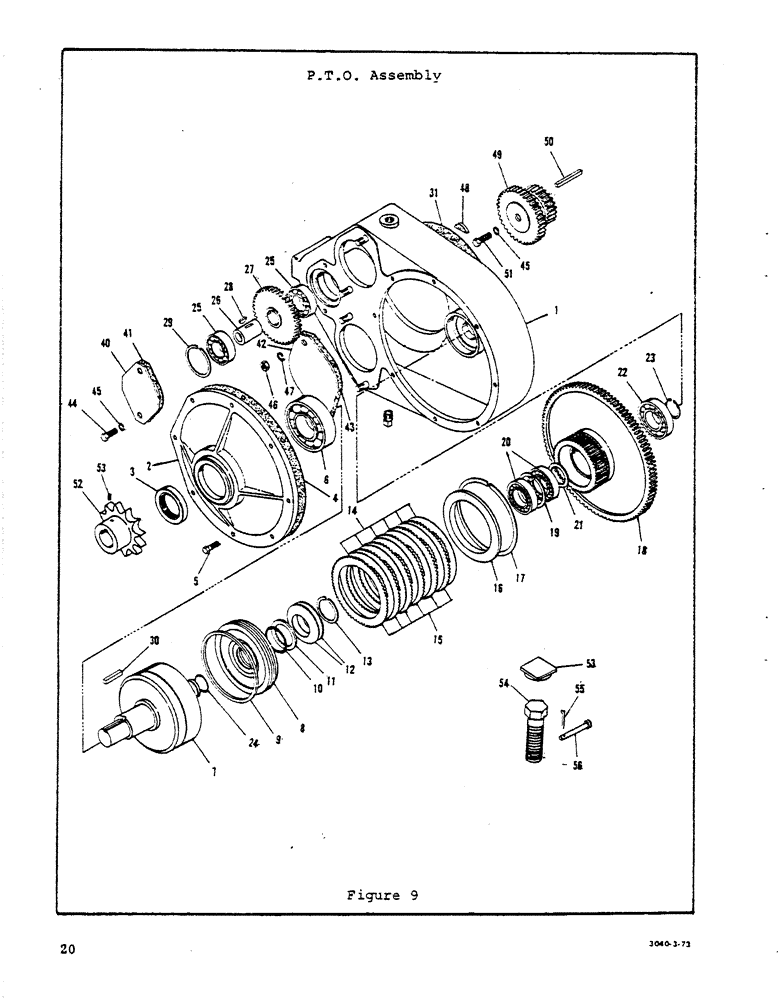

Запчасти Case P42 (20) - P.T.O. ASSEMBLY

H589978

ASSEMBLY

P.T.O. Asm. 30+4 Only

1шт.

H586271

ASSEMBLY

P.T.O. Asm. 40+4 Only

1шт.

1

H263632

CASE

- P.T.O. - 40+4 Only

1шт.

1

H263822

Case - P.T.O. - 30+4 Only

1шт.

2

H263640

COVER

P.T.O.

1шт.

3

H756304

OIL SEAL

Oil Seal

1шт.

4

H263657

GASKET

- Cover

1шт.

5

H709857

BOLT

HHCS (3/8" x 1" NC)

8шт.

6

H756312

BEARING

1шт.

7

H591610

Shaft Asm. - P.T.O.

1шт.

8

H263715

PISTON ASSY.

Piston - Clutch

1шт.

9

H66894

O-RING

Ring - Seal

1шт.

10

H274472

SEAL

O Ring - Piston

1шт.

11

H263723

WASHER

1шт.

12

H263731

SPRING

- Disc

4шт.

13

H746602

RING, SNAP

Snap Ring

1шт.

14

H263749

PLATE ASSY.

Plate - Clutch

6шт.

15

H66878

CLUTCH ASSEMBLY

Plate - Separator

6шт.

16

H263764

RETAINER

Plate - Clutch

1шт.

17

H66886

RING, SNAP

Snap Ring

1шт.

18

H591628

GEAR

Asm.

1шт.

19

S62214

RETAINER

Snap Ring

1шт.

20

H75193

Bearing (Replaces 50047)

2шт.

21

H756320

WASHER

1шт.

22

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

Bearing

1шт.

23

H746560

RING, SNAP

Snap Ring

1шт.

24

H66944

RING

Seal Ring

1шт.

25

H751545

BEARING, BALL

Bearing

2шт.

26

H263798

TUBE NUT

Adapter Sleeve

1шт.

27

H263806

GEAR WHEEL

Gear - Pump Drive

1шт.

28

H752006

KEY

Woodruff Key (1/4" x 3/4")

1шт.

29

H753111

SNAP RING

1шт.

30

H264069

KEY

(5/16" sq. x 2")

1шт.

31

M20704

ADHESIVE

Gasket - P.T.O. to Engine (40+4 Only) (Replaces H265868)

1шт.

31

H260646

GASKET

- P.T.O. To Engine (30+4 Only)

1шт.

40

H137844

LARGE PLATE

Cover Plate (W/O Backhoe or Linelayer)

1шт.

41

H238469

GASKET

Gasket - Cover Plate

1шт.

42

H217067

PLATE

Cover Plate (W/O Dozer)

1шт.

43

H238303

GASKET

Gasket - Cover Plate

1шт.

44

H710244

X

HHCS (7/16" x 1" NC)

2шт.

45

H739227

WASHER, LOCK

Washer (7/16" Lock)

3шт.

46

H735811

NUT

(1/2" NC)

2шт.

47

H739235

WASHER

(1/2" Lock)

2шт.

48

H264457

GASKET

- P.T.O.

1шт.

49

H252940

GEAR WHEEL

Drive Gear - Engine Crankshaft

1шт.

50

H76398

KEY

(1/4" sq. x 2 5/8")

1шт.

51

H714717

X

HHCS (7/16" x 1 1/4" NC)

1шт.

52

H216903

DRIVE SPROCKET

1шт.

53

H752139

SET SCREW

Plate (Replaces H597963)

1шт.

54

H100438

BOLT

1шт.

55

H739920

SPARE PART

Cotter Pin (1/8" x 3/4")

1шт.

56

H54395

AXLE PIN,9.47mm OD x 60.33mm L

Clevis Pin

1шт.
