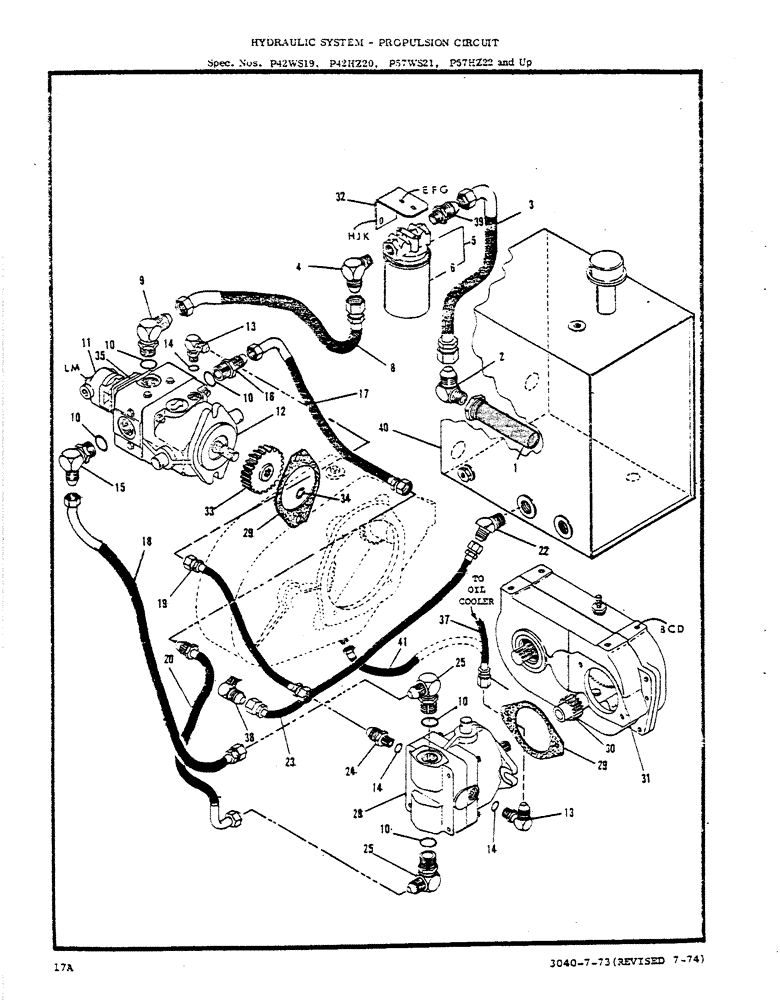

Запчасти Case P42 (17A) - HYDRAULIC SYSTEM, PROPULSION CIRCUIT, SPEC. NUMBERS P42WS19, P42HZ20, P57WS21, P57HZ22 AND UP

1

H151399

FILTER STRAINER

Suction Filter

1шт.

2

H218461

ELBOW

Adapter-90 degrees

1шт.

3

H282160

HOSE ASSY.

Hose & Tube (1" x 13" 1 5/16 JIC Fe. Sw. - Both Ends)

2шт.

4

H257238

ELBOW

Adapter-90 degrees

1шт.

5

H568881

FILLER

Filter Asm.

1шт.

6

H217307

FILTER, ENGINE OIL

Filter Element

1шт.

8

H275701

HOSE ASSY.

Hose & Tube (1" x 27" 1 5/16' JIC Fe. Sw. - Both Ends)

1шт.

9

H257246

ELBOW

Adapter-90 degrees

1шт.

10

H745208

O-RING

O Ring

5шт.

11

H588418

PUMP

Boom & Steering Pump Asm. (See Figure 28)

1шт.

12

H585307

PUMP

Propulsion Pump Asm. (See Figure 28)

1шт.

13

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Adapter-90 degrees

2шт.

14

H745166

O-RING

O Ring

3шт.

15

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Adapter-90 degrees

1шт.

16

H218529

X

Adapter - Straight

1шт.

17

H261560

HOSE ASSY.

Hose & Tube (3/4" x 34"-1 1/16" J.I.C. Fe. Sw. - Both Ends)

1шт.

18

H281683

Hose & Tube (3/4" x 46"-1/1/16" J.I.C. Fe. Sw. - Both Ends) (Replaces H261578)

1шт.

19

H195958

HOSE,45.00", SAE 100R1

1шт.

20

H265439

HOSE ASSY.

Hose & Tube (3/4" x 20" 1 1/16 JIC Male 1 1/16 JIC Fm. Sw.)

1шт.

22

H266288

ELBOW

Adapter-45 degrees

1шт.

23

H266254

HOSE ASSY.

Hose (3/4" x 40" 1 1/16" JIC Fe. Sw. - Both Ends)

1шт.

24

H191742

ADAPTER

- Straight

1шт.

25

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Adapter-90 degrees

2шт.

28

H585299

MOTOR

Propulsion Motor Asm. (See Figure 28)

1шт.

29

H44727

GASKET

Pump And Motor Gasket

2шт.

30

H253112

GEAR

Motor Gear

1шт.

31

H586560

TRANSMISSION

Asm. (See Figure 22)

1шт.

32

H275008

BRACKET

Filter Bracket

1шт.

33

H253104

GEAR WHEEL

Pump Gear

1шт.

34

H746503

RING, SNAP

Snap Ring

2шт.

35

H262659

GASKET

- Boom And Steering Pump

1шт.

37

H71399

HOSE

(1/2" x 42" 7/8" JIC Fe. Sw. - Both Ends)

1шт.

All Units Up To Spec. No. P42WS27, P4HZ28, P57WS29, P57HZ30 And Line-Layer Equipped Units Spec. No. P42WS27, P42HZ28, P57WS29, P57HZ30 And Up.

1шт.

38

H224865

ELBOW

Adapter-90 degrees

1шт.

39

H256446

ADAPTER

- Straight

1шт.

40

H599415

RESERVOIR

Oil Reservoir

1шт.

41

H250720

Hose (3/4 x 37 - 1 1/16 JIC Fe. Sw. x 7/8 JIC Fe. Sw. Ends)

1шт.

Spec. No. P42WS27, P42HZ28, P57WS29, P57HZ30, And Up Without Line-Layer.

1шт.

b

H738484

WASHER

(1/2" Flat)

1шт.

c

H710640

X

HHCS (1/2" x 1 1/2" NC)

1шт.

d

H739235

WASHER

(1/2" Lock)

1шт.

e

H709139

BOLT

HHCS (1/4" x 1" NC)

1шт.

f

H738443

WASHER

(1/4" Flat)

1шт.

g

H739193

WASHER, LOCK

Washer (1/4" Flat)

1шт.

h

H709436

BOLT

HHCS (5/16" x 3/4" NC)

1шт.

j

H738450

WASHER

(5/16" Flat)

1шт.

k

230-4215

NUT,5/16"-18, GA

Nut (5/16" NC - Lock)

1шт.

l

H709451

BOLT (SPREADER)

HHCS (5/16" x 1" NC)

1шт.

m

H739201

WASHER

(5/16" Lock)

1шт.
