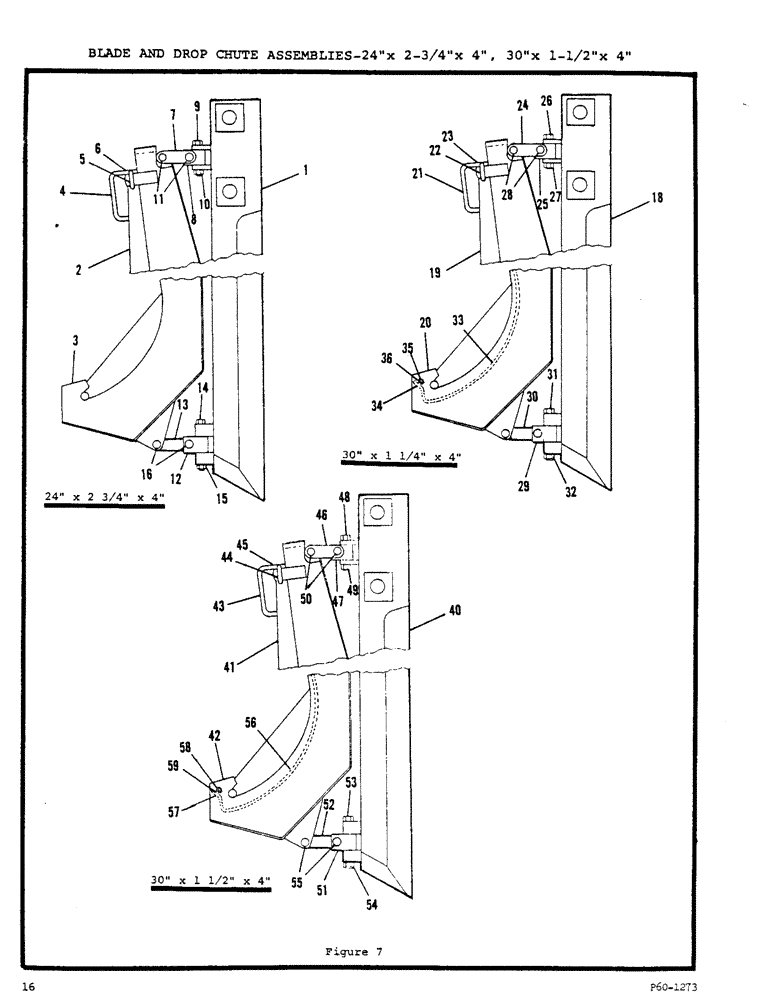

Запчасти Case P-60 (16) - BLADE AND DROP CHUTE ASSEMBLIES-24" X 2-3/4" X 4", 30" X 1-1/2" X 4"

1

H552463

HALF BLADE

Blade Asm - 24" x 2 3/4" x 4"

1шт.

2

H576900

NO LONGER SERVICED

Drop Chute Asm - 24" x 2 3/4", Includes: Ref. 3 - 16

1шт.

3

H576884

CHUTE (DOWNWARD)

Drop Chute

1шт.

4

H552430

DOOR SEAL

Drop Chute Gate

1шт.

5

H552489

PIN

Gate Pin

1шт.

6

H032292

Hair Pin

1шт.

7

H171660

CONNECTOR, ELEC

Upper Link

2шт.

8

H172650

BLOCK ASSY.

Upper Link Block

1шт.

9

H710707

BOLT

HHCS (1/2" x 3" NC)

1шт.

10

H737478

NUT

(1/2" NC - Lock)

1шт.

11

H172668

RIVET

- Upper Link

2шт.

12

H171702

BLOCK

Lower Link Block

1шт.

13

H171694

CONNECTOR, ELEC

Lower Link

1шт.

14

H711473

BOLT

HHCS (5/8" x 4" NC)

1шт.

15

H737494

LOCK NUT

Nut (5/8" NC - Lock)

1шт.

16

H171710

RIVET

- Lower Link

2шт.

18

H545012

BLADE

Asm - 30" x 1 1/4" x 4"

1шт.

19

H575373

CHUTE ASSY.

Drop Chute Asm - 30" x 1 1/4", Includes: Ref. 20 - 59

1шт.

20

H546390

CHUTE ASSY.

Drop Chute

1шт.

21

H546382

GUIDE

Drop Chute Gate

1шт.

22

H537787

AXLE PIN

Gate Pin

1шт.

23

H032292

Hair Pin

1шт.

24

H133157

DRAG LINK

Upper Link

2шт.

25

H133744

BLOCK

Upper Link Block

1шт.

26

H709915

BOLT

HHCS (3/8" x 2 1/2" NC)

1шт.

27

H737452

NUT

(3/8" NC - Lock)

1шт.

28

H133793

RIVET

- Upper Link

2шт.

29

H133736

JOINT TURNING

Lower Link Block

1шт.

30

H133165

DRAG LINK

Lower Link

1шт.

31

H710749

X

HHCS (1/2" x 4" NC)

1шт.

32

H737759

NUT

(1/2" NC - Lock)

1шт.

33

H133785

RIVET

Gate Extension

1шт.

34

H734400

BOLT

FHCS (3/8" x 1" NF - Allen HD)

2шт.

35

H735936

NUT

(3/8" NF)

2шт.

36

H739219

LOCK WASHER

Washer (3/8" Lock)

2шт.

40

H545855

BLADE

Asm - 30" x 1 1/2" x 4"

1шт.

41

H575316

CHUTE ASSY.

Drop Chute Asm - 30" x 1 1/2"

1шт.

42

H546572

CHUTE ASSY.

Drop Chute

1шт.

43

H546564

GUIDE

Drop Chute Gate

1шт.

44

H537787

AXLE PIN

Gate Pin

1шт.

45

H032292

Hair Pin

1шт.

46

H133157

DRAG LINK

Upper Link

2шт.

47

H133751

BLOCK

Upper Link Block

1шт.

48

H709915

BOLT

HHCS (3/8" x 2 1/2" NC)

1шт.

49

H737452

NUT

(3/8" NC - Lock)

1шт.

50

H133801

RIVET

- Upper Link

2шт.

51

H133736

JOINT TURNING

Lower Link Block

1шт.

52

H133165

DRAG LINK

Lower Link

1шт.

53

H710749

X

HHCS (1/2" x 4" NC)

1шт.

54

H737759

NUT

(1/2" NC - Jam - Lock)

1шт.

55

H133785

RIVET

- Lower Link

2шт.

56

H152330

Gate Extension

1шт.

57

H734400

BOLT

FHCS (3/8" x 1" NF - Allen HD)

2шт.

58

H735936

NUT

(3/8" NF)

2шт.

59

H739219

LOCK WASHER

Washer (3/8" Lock)

2шт.
