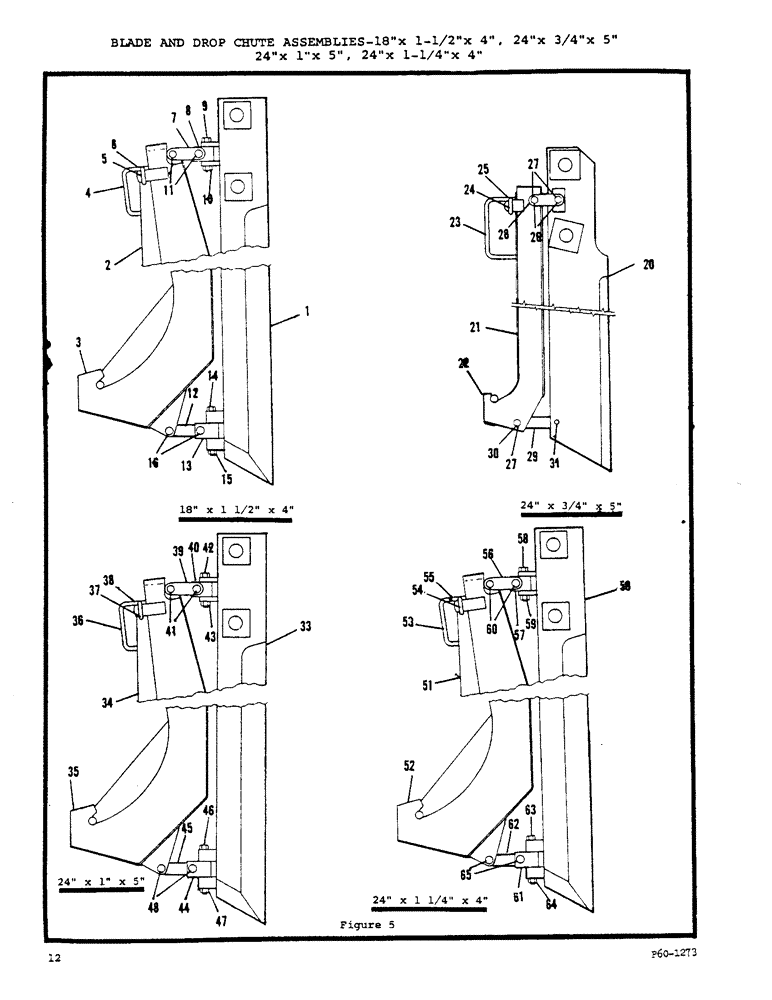

Запчасти Case P-60 (12) - BLADE & DROP CHUTE ASSY-18" X 1-1/2" X 4", 24"X 3/4"X 5" 24" X 1"X 5" X 24" X 1-1/4" X 4"

1

H545020

BLADE

Asm - 18" x 1 1/2" x 4"

1шт.

2

H575340

Drop Chute Asm - 18" x 1 1/2", Includes: Ref. 3 - 16

1шт.

3

H537902

CHUTE ASSY.

Drop Chute

1шт.

4

H537910

GUIDE

Drop chute Gate

1шт.

5

H537787

AXLE PIN

Gate Pin

1шт.

6

H032292

Hair Pin

1шт.

7

H133157

DRAG LINK

Upper link

2шт.

8

H133751

BLOCK

Upper Link Block

1шт.

9

H709915

BOLT

HHCS (3/8" x 2 1/2" NC)

1шт.

10

H737452

NUT

(3/8" NC - Lock)

1шт.

11

H133801

RIVET

- Upper Link

2шт.

12

H133165

DRAG LINK

Lower Link

1шт.

13

H133736

JOINT TURNING

Lower Link Block

1шт.

14

H710749

X

HHCS (1/2" x 4" NC)

1шт.

15

H737759

NUT

(1/2" NC - Lock)

1шт.

16

H133785

RIVET

- Lower Link

2шт.

20

H754459

Blade asm - 24" x 3/4" x 5"

1шт.

21

H559336

CHUTE ASSY.

Drop Chute Asm - 24" x 3/4", Includes: Ref. 22 - 30

1шт.

22

H537191

CHUTE ASSY.

Drop Chute

1шт.

23

H537258

GUIDE

Drop Chute Gate

1шт.

24

H532648

PIN

Gate Pin

1шт.

25

H032292

Hair Pin

1шт.

26

H127340

BOLT

HHCS (3/8" x 2 1/4" NF - Grade 8 Special)

2шт.

27

H746750

LOCK NUT

Nut (3/8" - NF)

3шт.

28

H116756

DRAG LINK

Upper Link

2шт.

29

H127258

DRAG LINK

Lower Link

1шт.

30

H127324

BOLT

HHCS (3/8" x 1 1/32 NF)

1шт.

33

H577858

BLADE

Asm - 24" x 1" x 5"

1шт.

34

H575381

CHUTE ASSY.

Drop Chute Asm - 24" x 1", Includes: Ref. 35 - 48

1шт.

35

H541235

EXTENSION

Drop Chute

1шт.

36

H541250

HANDLE

Drop Chute Gate

1шт.

37

H537787

AXLE PIN

Gate Pin

1шт.

38

H032292

Hair Pin

1шт.

39

H133157

DRAG LINK

Upper Link

1шт.

40

H133744

BLOCK

Upper Link Block

1шт.

41

H133793

RIVET

- Upper Link

2шт.

42

H709915

BOLT

HHCS (3/8" x 2 1/2" NC)

1шт.

43

H737452

NUT

(3/8" NC - Lock)

1шт.

44

H149302

BLOCK

Lower Link Block

1шт.

45

H133165

DRAG LINK

Lower Link

1шт.

46

H710749

X

HHCS (1/2" x 4" NC)

1шт.

47

H737759

NUT

(1/2" NC - Lock)

1шт.

48

H150987

RIVET

- Lower Link

2шт.

50

H577874

BLADE

Asm - 24" x 1 1/4" x 4"

1шт.

51

H575365

CHUTE ASSY.

Drop Chute Asm - 24" x 1 1/4", Includes: Ref. 52 - 65

1шт.

52

H537886

CHUTE ASSY.

Drop Chute

1шт.

53

H537894

GUIDE

Drop Chute Gate

1шт.

54

H537787

AXLE PIN

Gate Pin

1шт.

55

H032292

Hair pin

1шт.

56

H133157

DRAG LINK

Upper Link

2шт.

57

H133744

BLOCK

Upper Link Block

1шт.

58

H709915

BOLT

HHCS (3/8" x 2 1/2" NC)

1шт.

59

H737452

NUT

(3/8" NC - Lock)

1шт.

60

H133793

RIVET

- Upper Link

2шт.

61

H133736

JOINT TURNING

Lower Link Block

1шт.

62

H133165

DRAG LINK

Lower Link

1шт.

63

H710749

X

HHCS (1/2" x 4" NC)

1шт.

64

H737759

NUT

(1/2" NC Jam - Lock)

1шт.

65

H133785

RIVET

- Lower Link

2шт.
