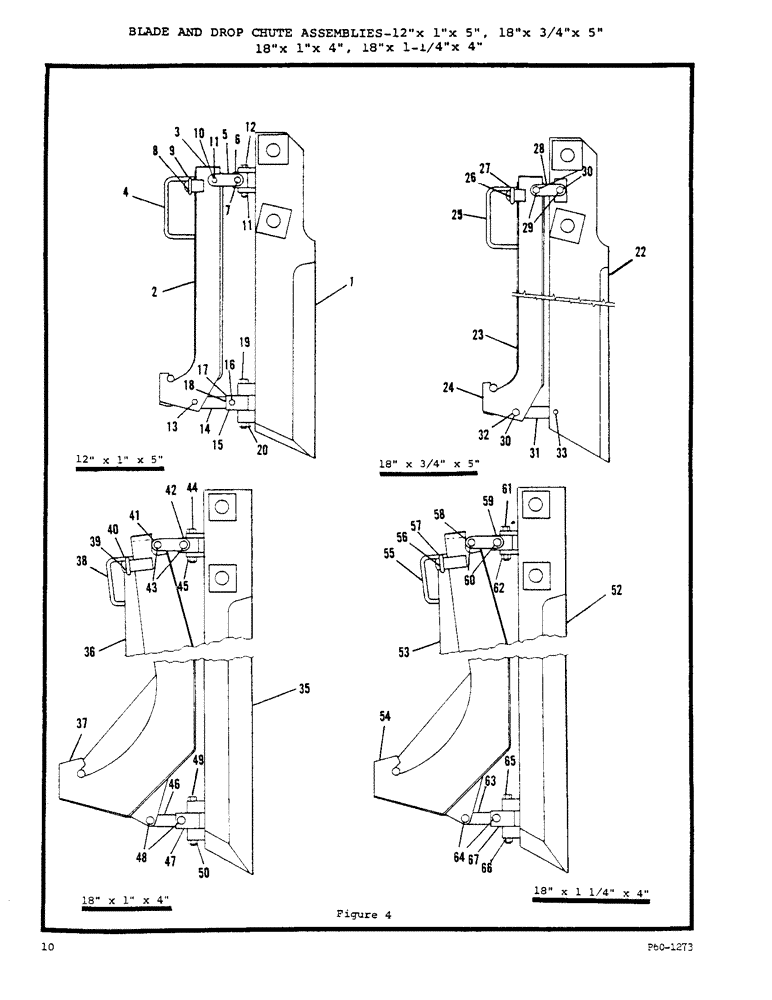

Запчасти Case P-60 (10) - BLADE & DROP CHUTE ASSY - 12" X 1" X 5", 18" X 3/4" X 5", 18" X 1" X 4", 18" X 1-1/4" X 4"
№
Артикул
Название
Примечание
Количество
1
H573204
BLADE
Asm - 12" x 1" x 45"
1шт.
2
H573337
CHUTE ASSY.
Drop Chute Asm - 1" x 12", Includes: Ref. 3 - 20
1шт.
3
H537209
CHUTE ASSY.
Drop Chute
1шт.
4
H537266
GUIDE
Drop Chute Gate
1шт.
5
NLS
NO LONGER SERVICED
Upper Link
2шт.
6
H133744
BLOCK
Upper Swivel Block
1шт.
7
H133793
RIVET
- Link To Block
1шт.
8
H532663
PIN
Gate Pin
1шт.
9
H032292
Hair Pin
1шт.
10
H127340
BOLT
HHCS (3/8" x 2 1/4" NF Grade 8 - Special )
1шт.
11
H745750
Nut (3/8" NF - Lock)
3шт.
12
H709915
BOLT
HHCS (3/8" x 2 1/2" NC)
1шт.
13
H127357
BOLT
HHCS (3/8" x 1 5/16" NF - Grade 8 - Special
1шт.
14
H228221
LINK
Lower Link
1шт.
15
H149302
BLOCK
Lower Swivel Block
1шт.
16
H150987
RIVET
- Link To Block
1шт.
17
H738781
WASHER
- Aircraft Reg. (1/2") - One Each Side Of Link
2шт.
18
H738930
WASHER
- Aircraft Light (1/2") - One Each Side Of Link
2шт.
19
H710749
X
HHCS (1/2" x 4" NC)
1шт.
20
H737478
NUT
(1/2" NC - Lock)
1шт.
22
H574434
BLADE
Asm - 18" x 3/4"x 5"
1шт.
23
H559328
ASSEMBLY
Drop Chute Asm - 3/4" x 18, Includes: Ref. 24 - 33
1шт.
24
H537183
CHUTE ASSY.
Drop Chute
1шт.
25
NLS
NO LONGER SERVICED
Drop Chute Gate
1шт.
26
H532648
PIN
Gate Pin
1шт.
27
H032292
Hair Pin
1шт.
28
H116756
DRAG LINK
Upper Link
2шт.
29
H127340
BOLT
HHCS (3/8" x 2 1/4" NF Grade 8 Special)
2шт.
30
H746750
LOCK NUT
Nut (3/8" NF)
3шт.
31
H127258
DRAG LINK
Lower Link
1шт.
32
H127324
BOLT
HHCS (3/8" x 1 1/32" NF Grade 8 Special)
1шт.
33
H127266
AXLE PIN
Rivet (3/8" x 7/8")
1шт.
35
H573196
BLADE
Asm - 18" x 1 x 4"
1шт.
36
H573352
CHUTE ASSY.
Drop Chute Asm - 1" x 18", Includes: Ref. 37 - 50
1шт.
37
H541219
CHUTE ASSY.
Drop Chute
1шт.
38
H541243
GUIDE
Drop Chute Gate
1шт.
39
H537787
AXLE PIN
Gate Pin
1шт.
40
H032292
Hair Pin
1шт.
41
H133157
DRAG LINK
Upper Link
2шт.
42
H133744
BLOCK
Link Block - Upper
1шт.
43
H133793
RIVET
- Upper Link
2шт.
44
H709915
BOLT
HHCS (3/8" x 2 1/2 " NC)
1шт.
45
H737452
NUT
(3/8" NC - Lock)
1шт.
46
H133165
DRAG LINK
Lower Link
1шт.
47
H149302
BLOCK
Link Block - Lower
1шт.
48
H150987
RIVET
- Lower Link
2шт.
49
H710749
X
HHCS (1/2" x 4" NC)
1шт.
50
H737478
NUT
(1/2" NC - Lock)
1шт.
52
H544999
BLADE
Asm - 18" x 1 1/4" x 4
1шт.
53
H575357
CHUTE ASSY.
Drop Chute Asm - 1 1/4" x 18", Includes: Ref. 54 - 67
1шт.
54
H537993
CHUTE ASSY.
Drop Chute
1шт.
55
H538009
GUIDE
Drop Chute Gate
1шт.
56
H537787
AXLE PIN
Gate Pin
1шт.
57
H032292
Hair Pin
1шт.
58
H133157
DRAG LINK
Upper Link
3шт.
59
H133744
BLOCK
Upper Link Block
1шт.
60
H133793
RIVET
- Upper Link
2шт.
61
H709915
BOLT
HHCS (3/8" x 2 1/2" NC)
1шт.
62
H737452
NUT
(3/8" NC - Lock)
1шт.
63
H133165
DRAG LINK
Lower Link
1шт.
64
H133785
RIVET
- Lower Link
2шт.
65
H710749
X
HHCS (1/2" x 4" NC)
1шт.
66
H737759
NUT
(1/2" NC - Lock)
1шт.
67
H133736
JOINT TURNING
Lower Link Block
1шт.
Выбрано товаров: 64
