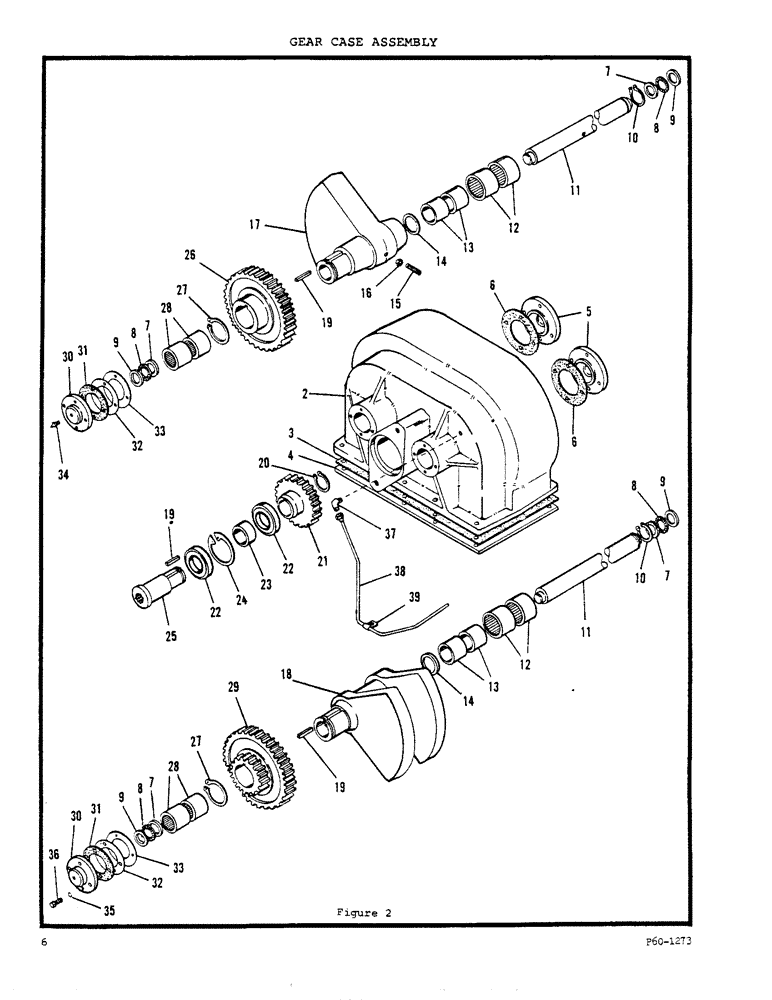

Запчасти Case P-60 (06) - GEAR CASE ASSEMBLY

1

H559187

CASE

Gear Case (Up To Spec. No. P48SD, Includes: Ref. 2 - 37

1шт.

1

H563619

BOX

Gear Case Asm (Spec. No. P48SD01 & Up For Gear Cases With Cessna Motor, Includes: Ref. 2 - 37

1шт.

1

H601989

GEARBOX ASSY

Gear Case Asm (Spec. No. P48SD01 & Up For Gear Cases With Sundstrand Motor), Includes: Ref. 2 - 37

1шт.

2

H189464

CASE

Gear Case (Up To Spec. No. P48SD01)

1шт.

2

H205559

CASE

Gear case (Spec. No. P48SD01 & Up)

1шт.

3

H189910

GASKET

1шт.

4

H202176

LARGE PLATE

Cover Plate

1шт.

5

H189811

BEARING CAP

2шт.

6

H189852

GASKET

2шт.

7

H189845

WASHER

Thrust Washer

8шт.

8

H753178

BEARING

4шт.

9

H189837

WASHER

Thrust Washer (.095)

1шт.

10

H746560

RING, SNAP

Snap Ring

2шт.

11

H189761

SHAFT

2шт.

12

H753152

NEEDLE BEARING

Bearing

4шт.

13

H753160

BEARING CUP

Bearing Race

4шт.

14

H189803

SPACER

2шт.

15

H753202

SET SCREW

(1/2" x 2" NC - Dog Point)

2шт.

16

86632558

JAM NUT,Jam, 1/2"-13, G5

Nut (1/2" NC - Jam)

2шт.

17

H189506

WEIGHT

Counterweight

1шт.

18

H189514

WEIGHT

Counterweight

1шт.

19

H036384

Key (1/4" sq. x 1 3/8)

3шт.

20

H746560

RING, SNAP

Snap Ring

1шт.

21

H189787

GEAR

Drive Gear

1шт.

22

H753194

BEARING

2шт.

23

H189795

SPACER

1шт.

24

H753186

RING, SNAP

Snap Ring

1шт.

25

H197350

SHAFT

Drive Shaft (Up To Spec. No. P48SD01)

1шт.

25

H205567

SHAFT

Drive Shaft (Spec. No. P48SD01 & Up For Gear Cases With Cessna Motor)

1шт.

25

H284364

SHAFT

Drive Shaft (Spec. No. P48SD01 & Up for Gear Cases With Sundstrand Motor)

1шт.

26

H189746

GEAR WHEEL

Counterweight Gear

1шт.

27

H746636

RING, SNAP

Snap Ring

2шт.

28

H753145

NEEDLE BEARING

Bearing

4шт.

29

H189753

GEAR

Counterweight Gear

1шт.

30

H189829

CAP

Bearing Cup

2шт.

31

H189860

GASKET

2шт.

32

H189878

SHIM,.005" Thk

1шт.

33

H189886

SHIM,.015" Thk

1шт.

34

H745299

FITTING

Grease Fitting

4шт.

35

H739201

WASHER

Lock Washer

16шт.

36

H709451

BOLT (SPREADER)

HHCS (5/16" x 1" NC)

16шт.

37

H052332

Elbow (90 degree)

1шт.

38

H546275

TUBE,0.25" OD x 18" L

Oil Relief Tube

1шт.

39

H151753

CLAMP

Tube Clamp

1шт.
